1-9/16" Spline Shank Rotary Hammer, 2 Mode | Metabo HPT DH38YE3

Model# DH38YE3

  • POWERFUL: 10 amp motor produces 6.3 ft. lbs. of impact for tough jobs
  • IMPACT RATE: 2800 full-load impact rate to quickly remove materials
  • FASTER DRILLING: 620 No-load RPM
  • DUAL MODES: Option to hammer drill or hammer only for greater versatility
  • SAFETY CLUTCH: Shuts down rotation in the event of a bound bit for improved user protection

Features

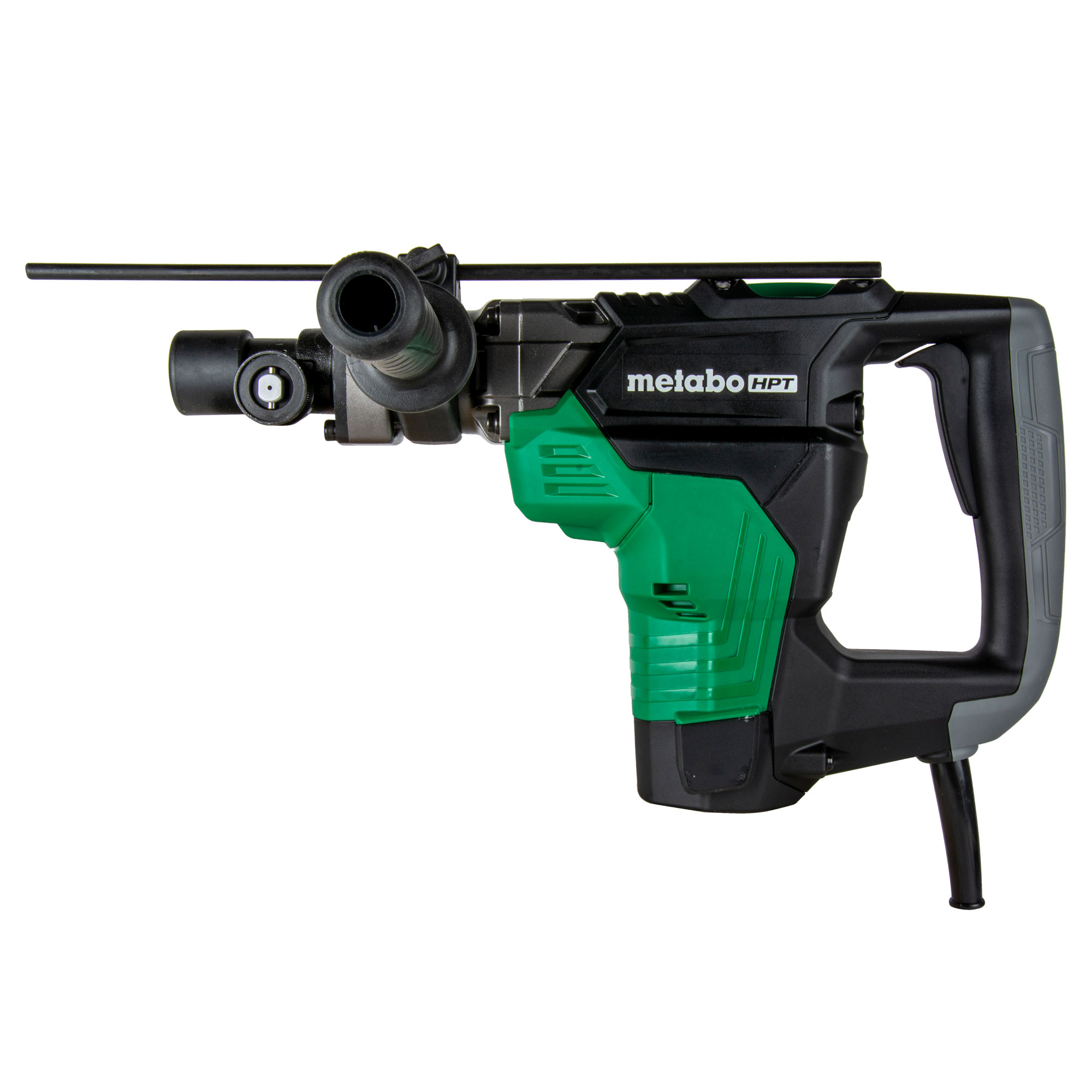

The 1-9/16" Spine Shank Rotary Hammer - model DH38YE3 is power packed into a more ergonomic body that is lighter and delivers less vibration. A simple turn of the knob changes the mode from hammer drilling to hammer only mode, allowing this rotary hammer to take on a variety of tasks including drilling holes in concrete, demolishing, and chiseling concrete, cutting, digging, tamping or driving ground rods.

The 10 amp, 1,140 watt motor produces 6.3 ft-lb of impact energy and delivers fast drilling and chiseling. A 360° side handle and large trigger switch offer more control with less fatigue. With 23% more drilling speed and 46% more demolition performance you can get the job done even faster!



Features of the 1-9/16" Spline Shank Rotary Hammer

  • POWERFUL: 10 amp motor produces 6.3 ft. lbs. of impact for tough jobs
  • IMPACT RATE: 2800 full-load impact rate to quickly remove materials
  • FASTER DRILLING: 620 No-load RPM
  • DUAL MODES: Option to hammer drill or hammer only for greater versatility
  • SAFETY CLUTCH: Shuts down rotation in the event of a bound bit for improved user protection

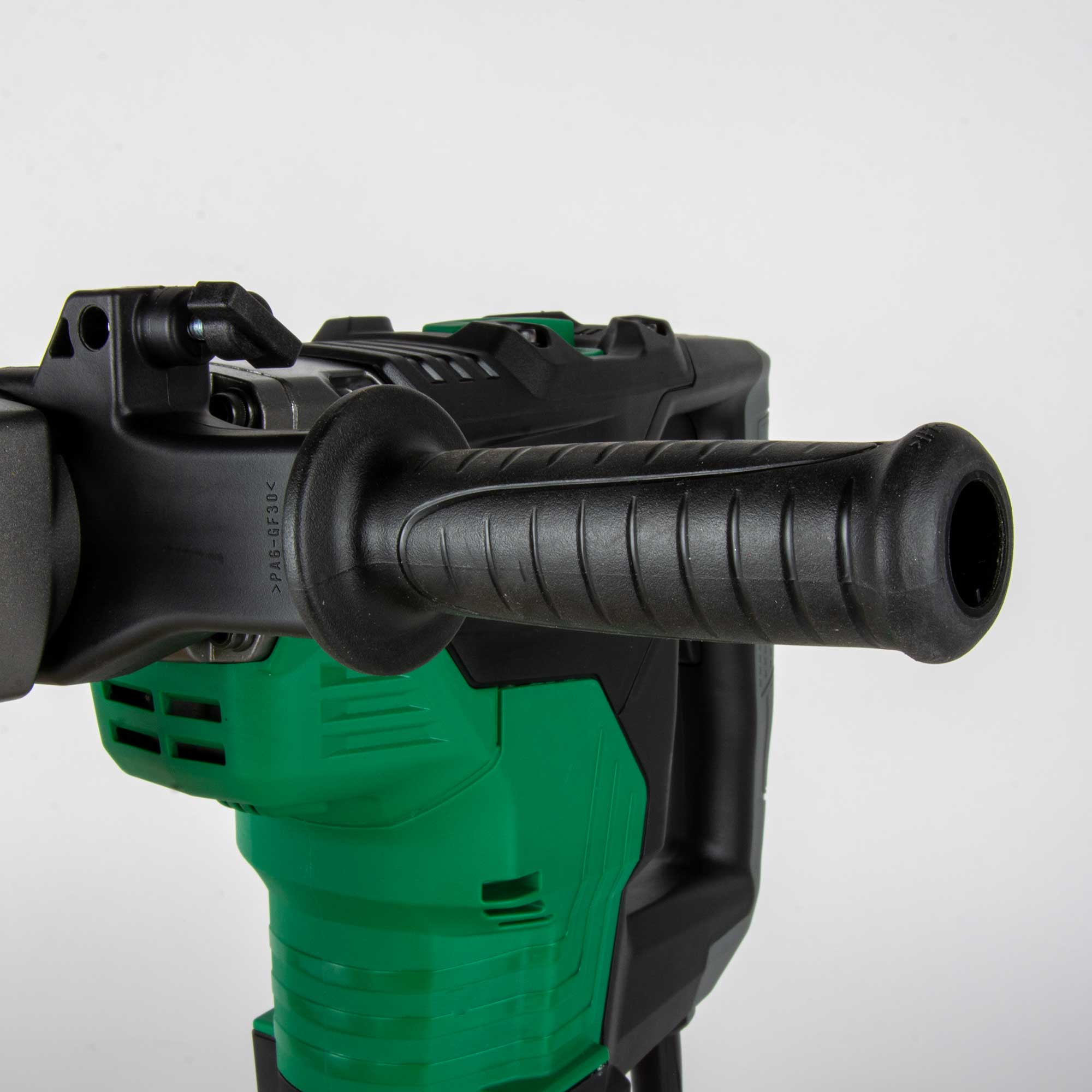

  • SIDE HANDLE: 360° side handle provides comfort and control

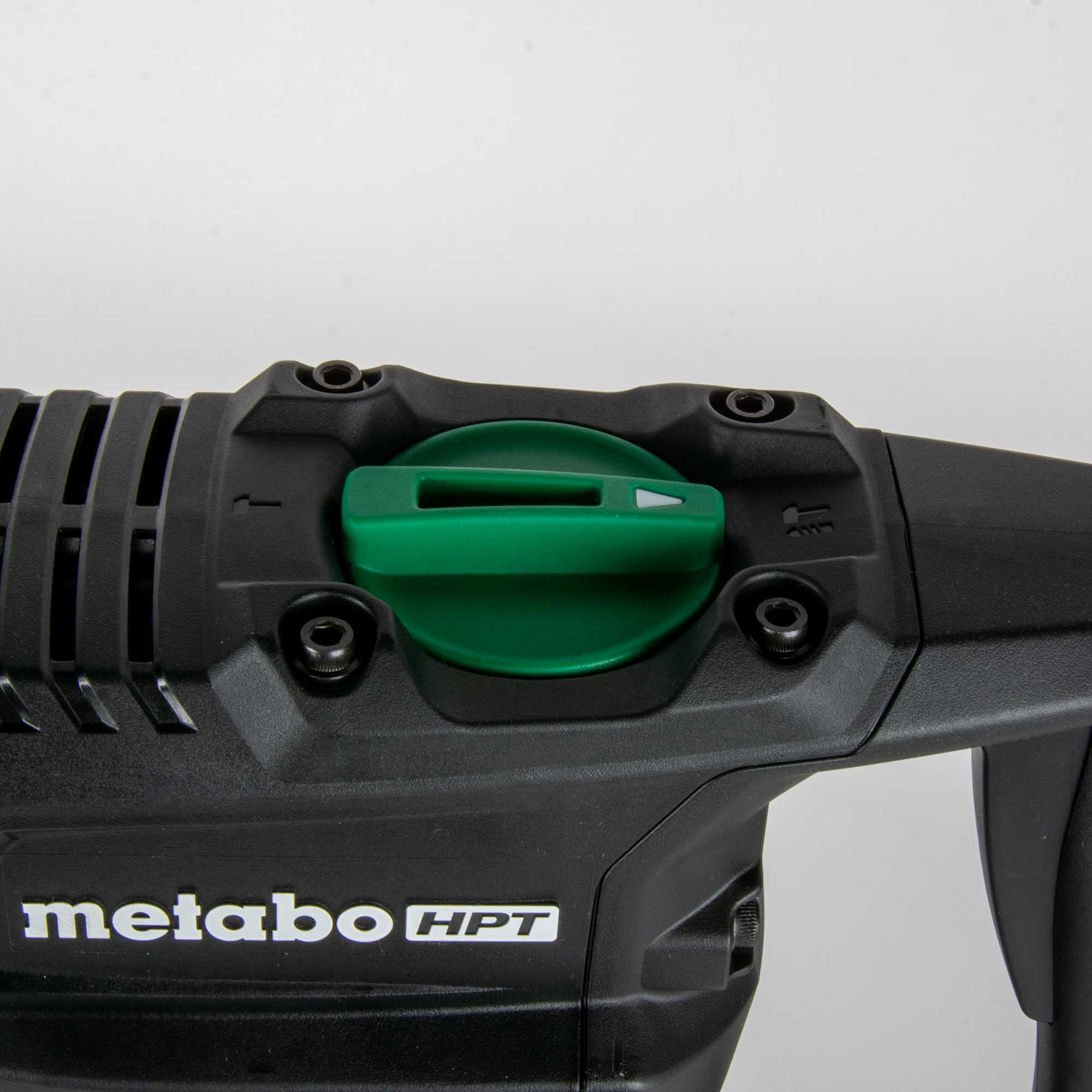

  • EASY SWITCHING: Large change lever for easy mode switching

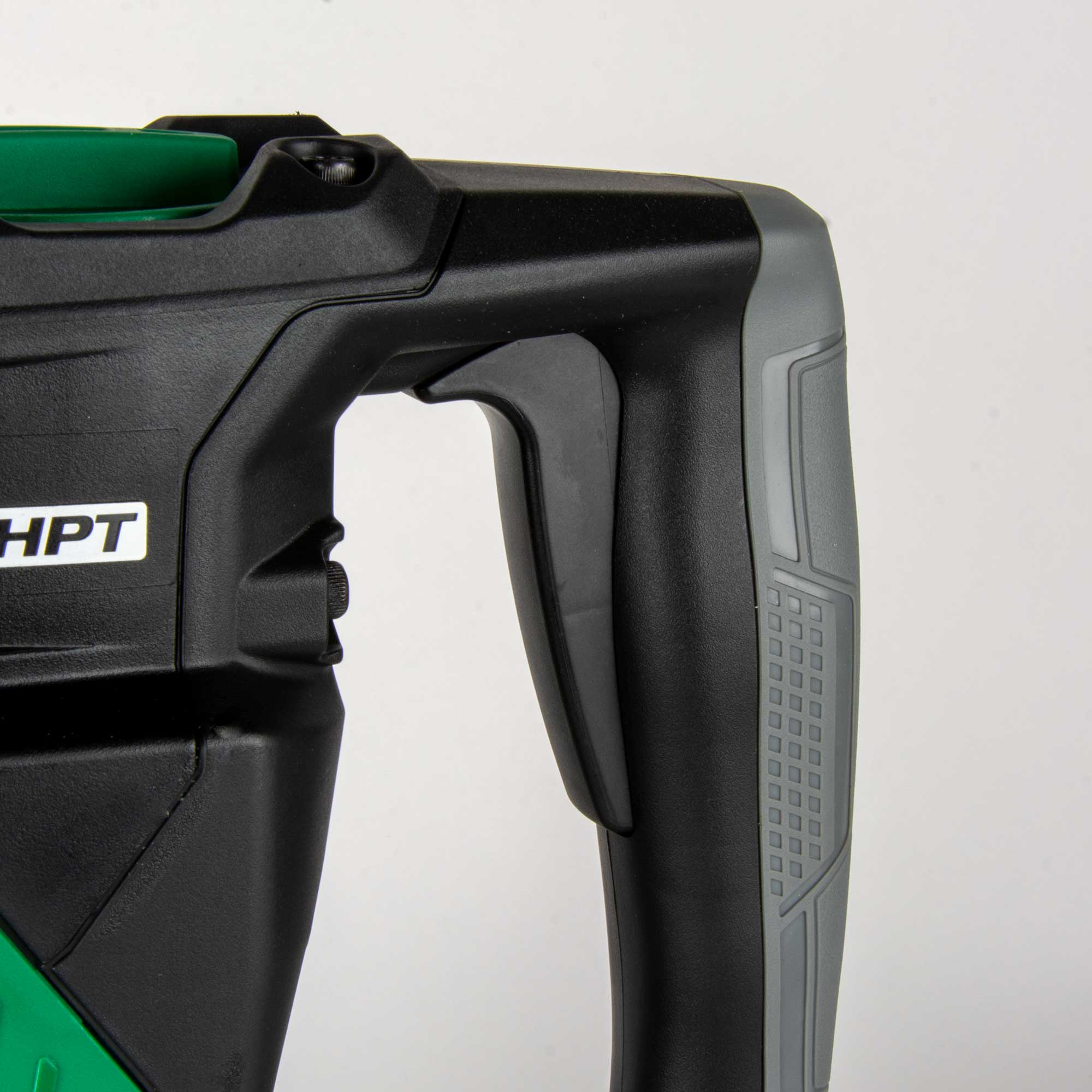

  • GRIP: Soft elastomer D-handle provides a secure grip & absorbs vibration
  • LARGE TRIGGER: For easy grip & control
  • WARRANTY: 1 year tool body
  • TOOL CARD: Download the DH38YE3 Tool Card

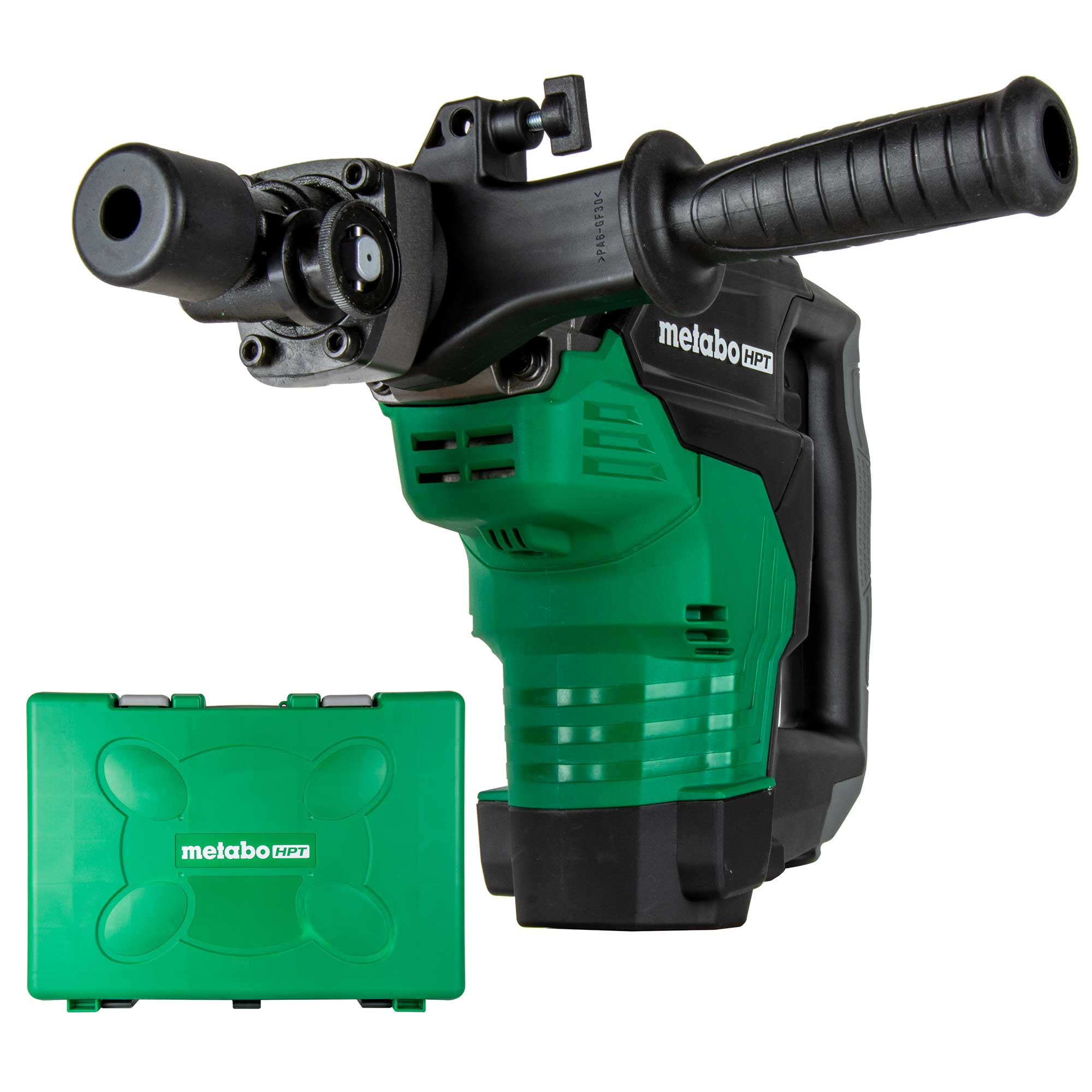

Included with the 1-9/16" Spline Shank Rotary Hammer

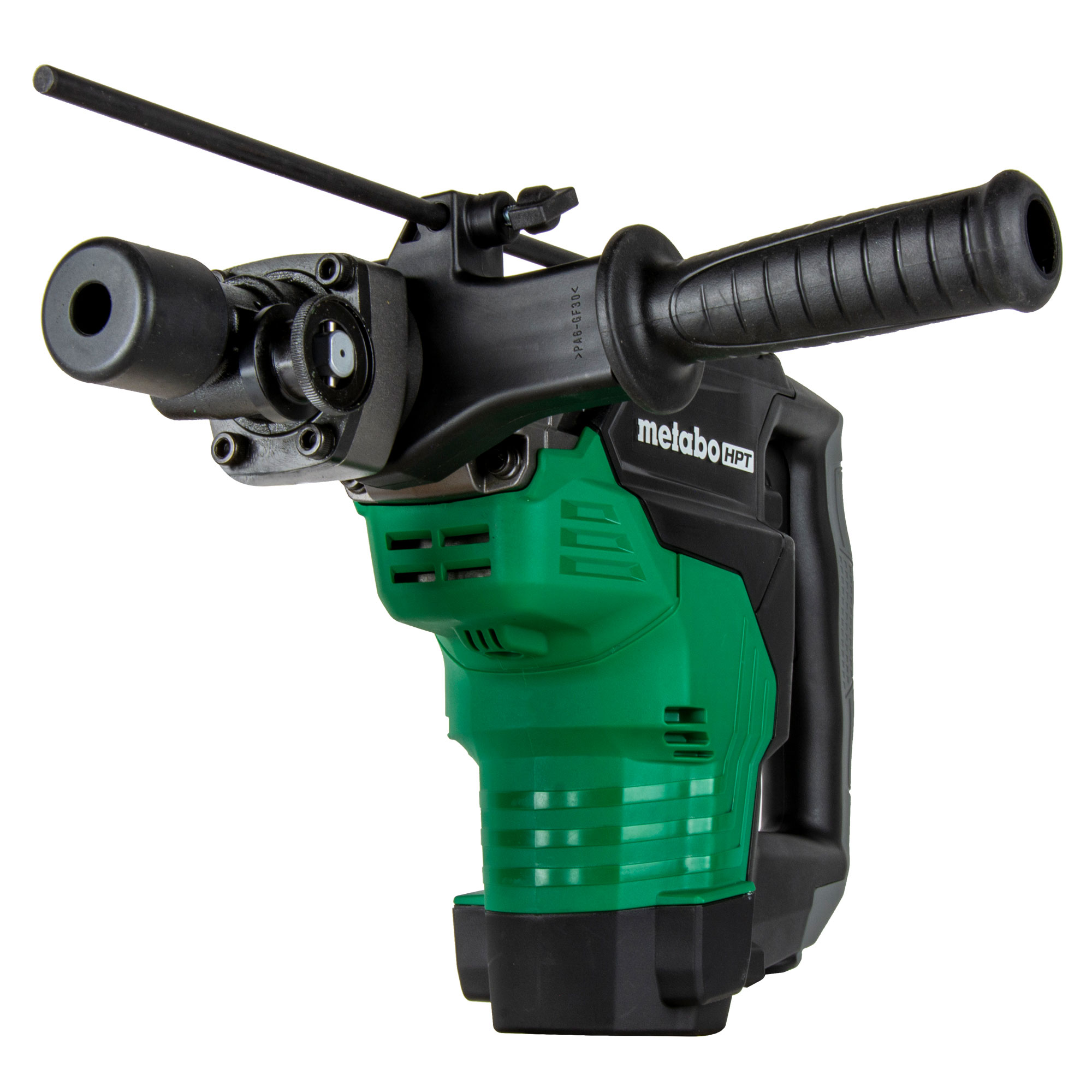

  • Depth Gauge (971786)
  • Side Handle (330209)

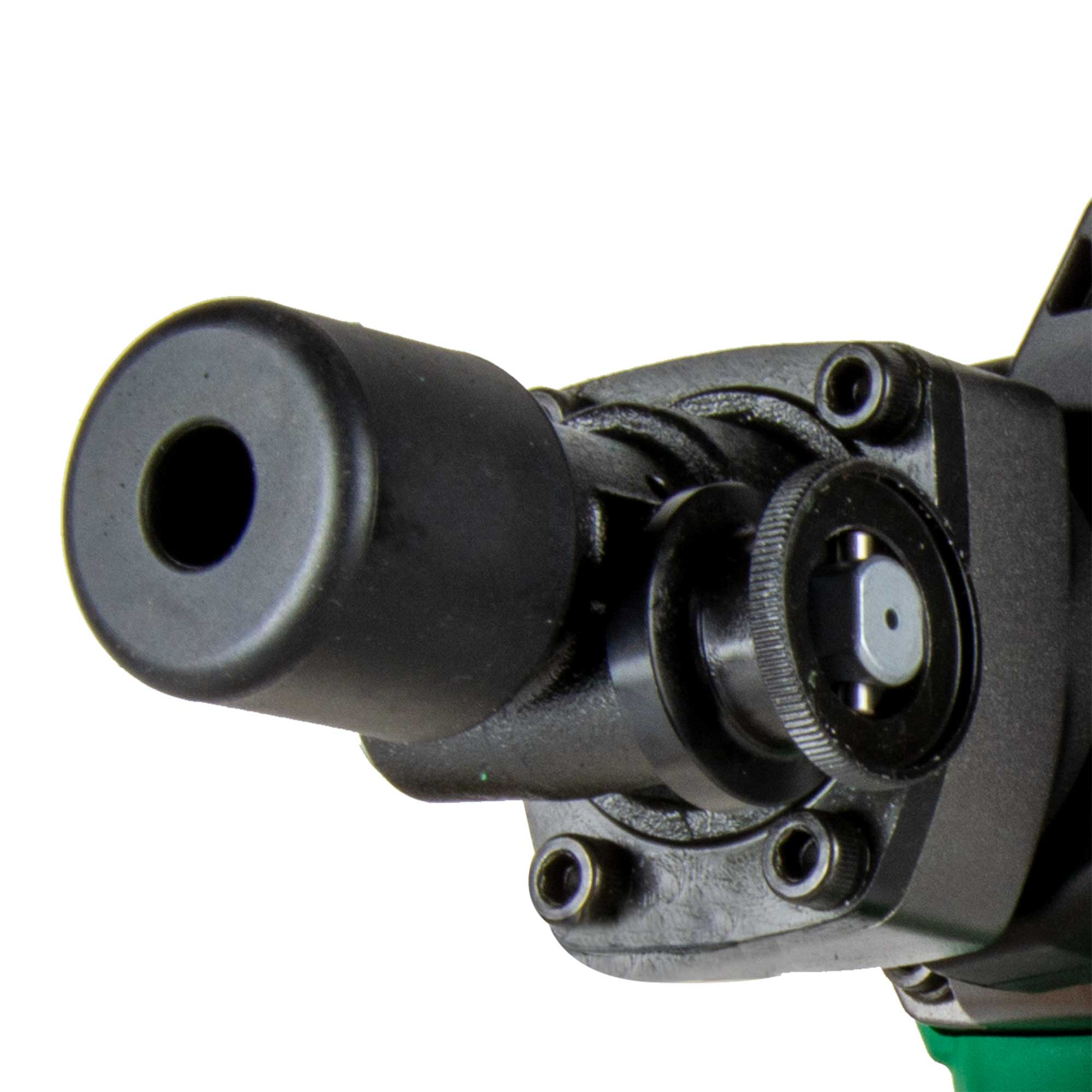

  • Dust Cover (993245)

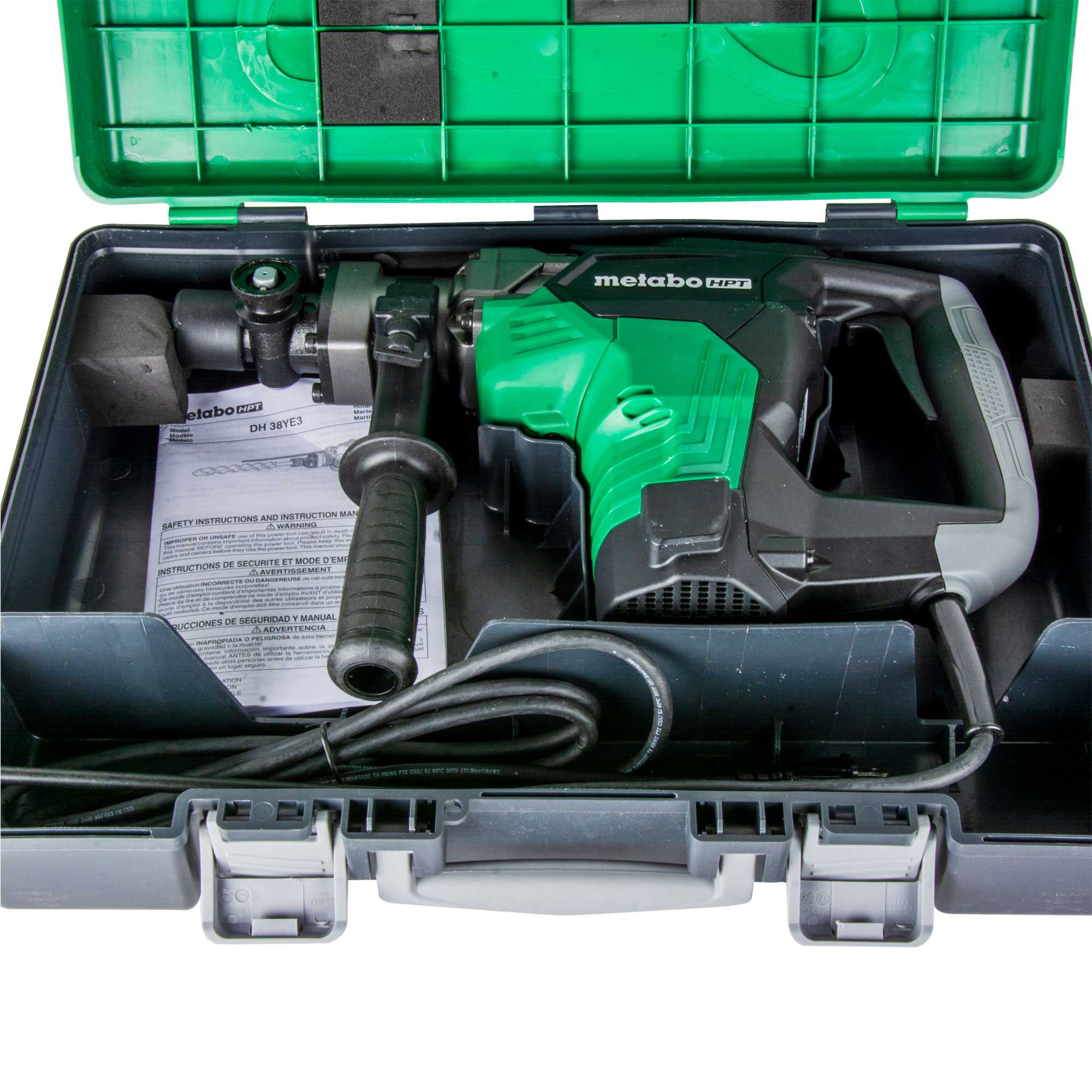

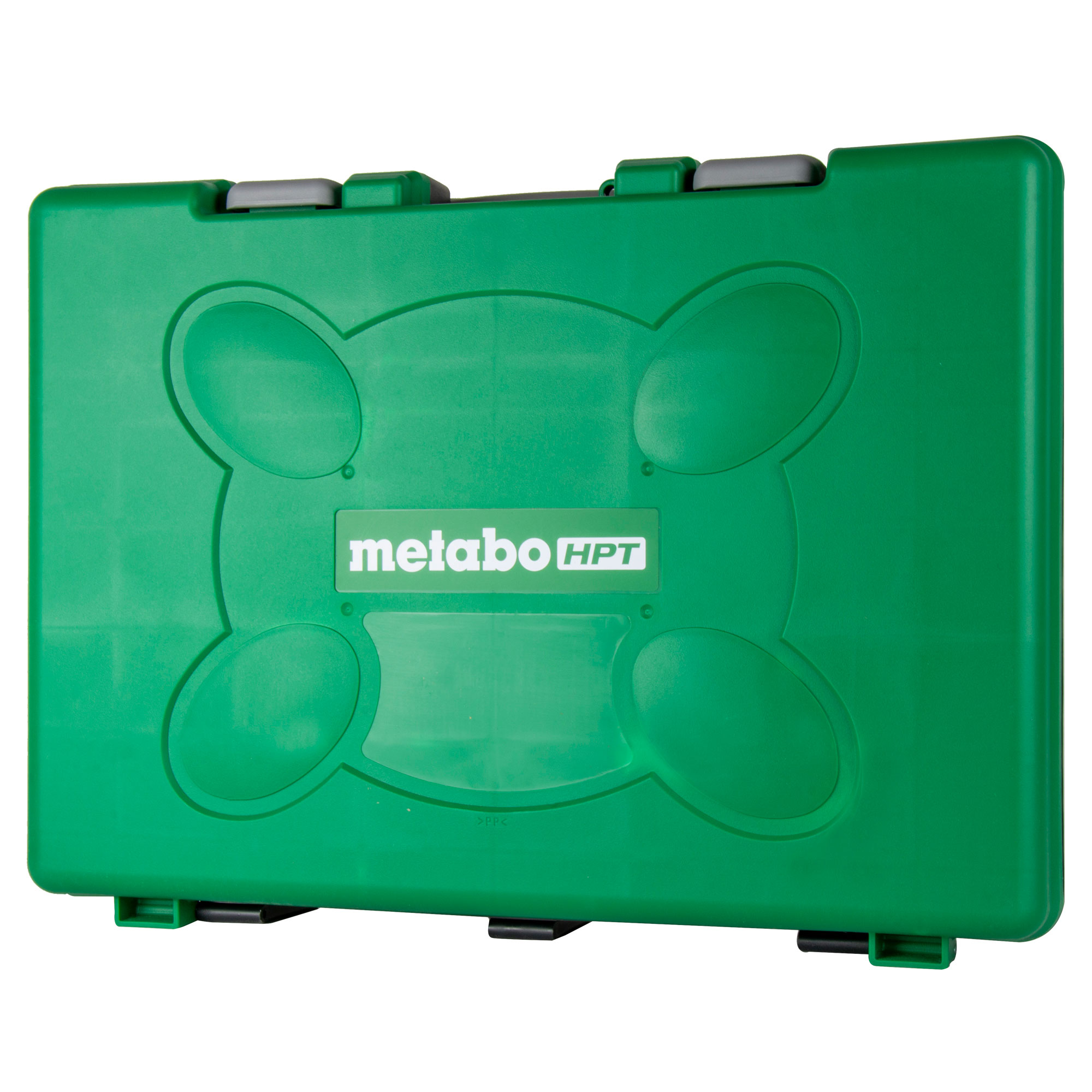

  • Case (379030)
Optional Accessories for the 1-9/16" Spine Shank Rotary Hammer
  • Bull Point 12" (985383)
  • Bull Point 18" (985398)
  • Cold Chisel 12" (985381M)
  • Cold Chisel 12" (985382M)
  • Asphalt Cutter 12" x 1-1/2" (985384M)
  • Asphalt Cutter 12" x 2" (985385M)
  • Digging Scoop 4-1/2" x 16" (985386M)
  • Grease 30g (981840M)
  • Grease 70g (308471M)
  • Grease 500g (980927M)
  • Syringe (308085)

Specifications

Bit Type  Spline
Rated Current  10 Amps
No-load Speed  620 RPM
Impact Energy  6.3 ft-lbs
Impact Rate 2800 BPM
Full Load Vibration Level                  16 m/s2
Capacity (Drill Bit)       1-9/16"
Capacity (Core Bit)  4-1/8"
Dimensions (Length) 16-7/8"
Dimensions (Width)  4-1/8"
Dimensions (Height) 10"
One Touch Chuck  Yes
Weight  15.6 lbs.
Warranty  1 year tool body













Includes

  • Depth Gauge (971786)
  • Side Handle (330209)
  • Dust Cover (993245)
  • Case (379030)
