3-1/4" 21-Degree Framing Nailer with Aluminum Magazine | Metabo HPT NR83A5S1
Model# NR83A5S1
- HIGH GRADE ALUMINUM MAGAZINE: Provides exceptional durability and protects against jams
- ACCEPTS: 2 strips of 21° x .113 -.131-in collated nails ranging from 2-in up to 3-1/4 inches in length
- CYLINDER VALVE DRIVE SYSTEM: For rapid response and increased durability
- HIGH GRADE ALUMINUM MAGAZINE: Provides exceptional durability and protects against jams
- ACCEPTS: 2 strips of 21° x .113 -.131-in collated nails ranging from 2-in up to 3-1/4 inches in length
- CYLINDER VALVE DRIVE SYSTEM: For rapid response and increased durability
Features
HIGH GRADE ALUMINUM MAGAZINE
Provides exceptional durability and protects against jams
CYLINDER VALUE DRIVE SYSTEM
For rapid response and increased durability
ACCEPTS
2 strips of 21° x .113 - .131-in collated nails ranging from 2-in up to 3-1/4 inches in length

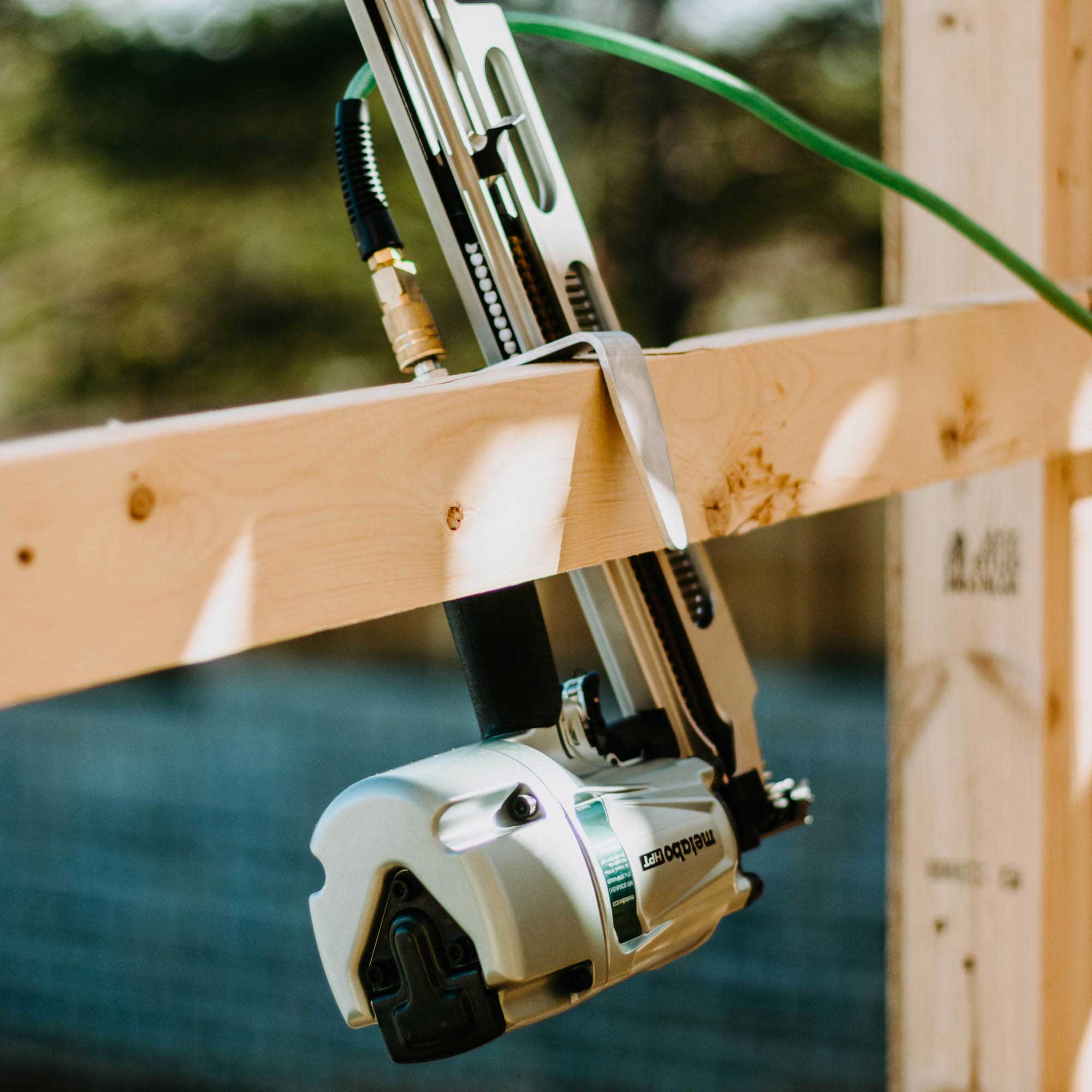

Rafter Hook
Included for convenience
The best only gets better! The Pro Preferred Brand of Pneumatic Nailers introduces an addition to the durable A5 Series tools, with the 3-1/4" 21° Pneumatic Framing nailer with aluminum magazine, model NR83A5S1. It offers the same features and performance as the legendary NR83A5 but its now equipped with an Aluminum Magazine. This new Aluminum magazine shares many components with the classic steel magazine including the ribbon spring. This nailer relies on the same cylinder valve system as the original model from the 80's, providing rapid response and high driving power.
Features of the 3-1/4" 21-Degree Framing Nailer with Aluminum Magazine
- HIGH GRADE ALUMINUM MAGAZINE: Provides exceptional durability and protects against jams
- ACCEPTS: 2 strips of 21° x .113 -.131-in collated nails ranging from 2-in up to 3-1/4 inches in length
- CYLINDER VALVE DRIVE SYSTEM: For rapid response and increased durability
- RAFTER HOOK: Included for convenience
- HARDENED CLAW TIP: Grips wood for driving nails at different angles and resists wear
- RUBBER GRIP: For control and comfort during use
- OPEN NOSE DESIGN: For extraction should a nail jam
- LOCKING FEEDER SYSTEM: Makes replenishments quick and easy
- SELECTIVE ACTUATION ON TRIGGER: Allows for either sequential or contact nailing
- WARRANTY: 5-Year
- TOOL CARD: Download the NR83A5S1 Tool Card
- Rafter Hook (889661M)
- Safety Glasses (875769)
- Fasteners
- Hoses
- Fittings
Specifications
| Model | NR83A5Y |
| Magazine Material | Aluminum |
| Air Pressure | 70-120 PSI |
| Applicable Nails (Diameter) | .113" - .131" |
| Application Nails (Length) | 2" - 3-1/4" |
| Nail Capacity | 50-70 |
| Magazine Angle | 21° |
| Collation | Plastic |
| Actuation | Selective (Sequential/Contact) |
| Dry-fire Lockout | No |
| Depth Adjustment | No |
| Jam Clearing | Open Nose Design |
| Rubber Grip | Yes |
| Weight (w/o Hook) | 8.8 lbs |
| Length | 21-3/16" |
| Height | 13-3/8" |
| Width | 4-1/4" |
| Warranty | 5-Year |
Includes
- Rafter Hook (889661M)
- Safety Glasses (875769)
