3-1/4" Framing Nailer with Depth Adjustment and Aluminum Magazine | Metabo HPT NR83A5Y
Model# NR83A5Y
- HIGH GRADE ALUMINUM MAGAZINE: Provides exceptional durability and protects against jams
- TOOL-LESS DEPTH OF DRIVE ADJUSTMENT: For flush fastening in varying material
- ACCEPTS: 2 strips of 21° x .113 -.131-in collated nails ranging from 2-in up to 3-1/4 inches in length
- CYLINDER VALVE DRIVE SYSTEM: For rapid response and increased durability
- HIGH GRADE ALUMINUM MAGAZINE: Provides exceptional durability and protects against jams
- TOOL-LESS DEPTH OF DRIVE ADJUSTMENT: For flush fastening in varying material
- ACCEPTS: 2 strips of 21° x .113 -.131-in collated nails ranging from 2-in up to 3-1/4 inches in length
- CYLINDER VALVE DRIVE SYSTEM: For rapid response and increased durability
Features
HIGH GRADE ALUMINUM MAGAZINE
Provides exceptional durability and protects against jams
CYLINDER VALUE DRIVE SYSTEM
For rapid response and increased durability
ACCEPTS
2 strips of 21° x .113 - .131-in collated nails ranging from 2-in up to 3-1/4 inches in length

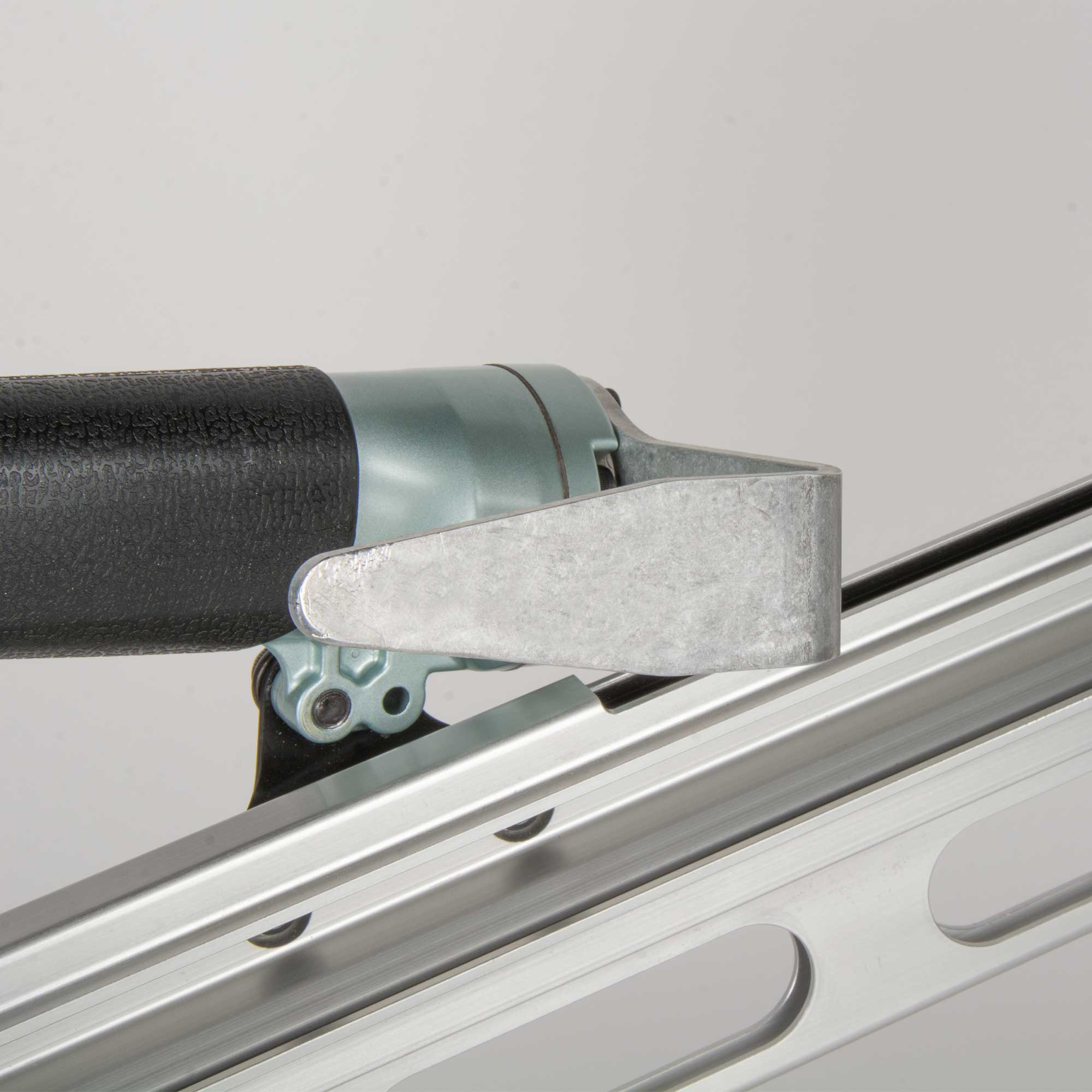

Rafter Hook
Included for convenience
The best only gets better! The Pro Preferred Brand of Pneumatic Nailers introduces an addition to the durable A5 Series tools, with the 3-1/4" 21° Pneumatic Framing nailer with depth adjustment and aluminum magazine, model NR83A5Y. It offers the same features and performance as the legendary NR83A5 but its now equipped with an Aluminum magazine. This Aluminum magazine shares many components with the classic steel magazine including the ribbon spring. This nailer relies on the same proven cylinder valve system as the original model from the 80's, providing rapid response and high driving power.
Features of the 3-1/4" Framing Nailer with Depth Adjustment & Aluminum Magazine
- HIGH GRADE ALUMINUM MAGAZINE: Provides exceptional durability and protects against jams
- TOOL-LESS DEPTH OF DRIVE ADJUSTMENT: For flush fastening in varying material
- ACCEPTS: 2 strips of 21° x .113 -.131-in collated nails ranging from 2-in - 3 1/4-inches in length
- CYLINDER VALVE DRIVE SYSTEM: For rapid response and increased durability
- HARDENED CLAW TIP: Grips wood for driving nails at different angles and resists wear
- SELECTIVE ACTUATION ON TRIGGER: Allows for either sequential or contact nailing
- RUBBER GRIP: For control and comfort during use
- OPEN NOSE DESIGN: For extraction should a nail jam
- RAFTER HOOK: Included for convenience
- LOCKING FEEDER SYSTEM: Makes replenishments quick and easy
- WARRANTY: 5-Year
- TOOL CARD: Download the NR83A5Y Tool Card
- Rafter Hook (889661M)
- Safety Glasses (875769)
- Fasteners
- Hoses
- Fittings
Specifications
| Model | NR83A5Y |
| Magazine Material | Aluminum |
| Air Pressure | 70-120 PSI |
| Applicable Nails (Diameter) | .113 - .131" |
| Applicable Nails (Length) | 2" - 3-1/4" |
| Nail Capacity | 50-70 |
| Collation | Plastic |
| Actuation | Selective (Sequential/Contact) |
| Dry-Fire Lockout | No |
| Depth Adjustment | Tool-Less |
| Jam Clearing | Open Nose Design |
| Rubber Grip | Yes |
| Weight (w/o Hook) | 8.8 lbs |
| Length | 21- 3/16" |
| Height | 13-2/8" |
| Width | 4-1/4" |
| Warranty | 5-Year |
Includes
- Rafter Hook (889661M)
- Safety Glasses (875769)
