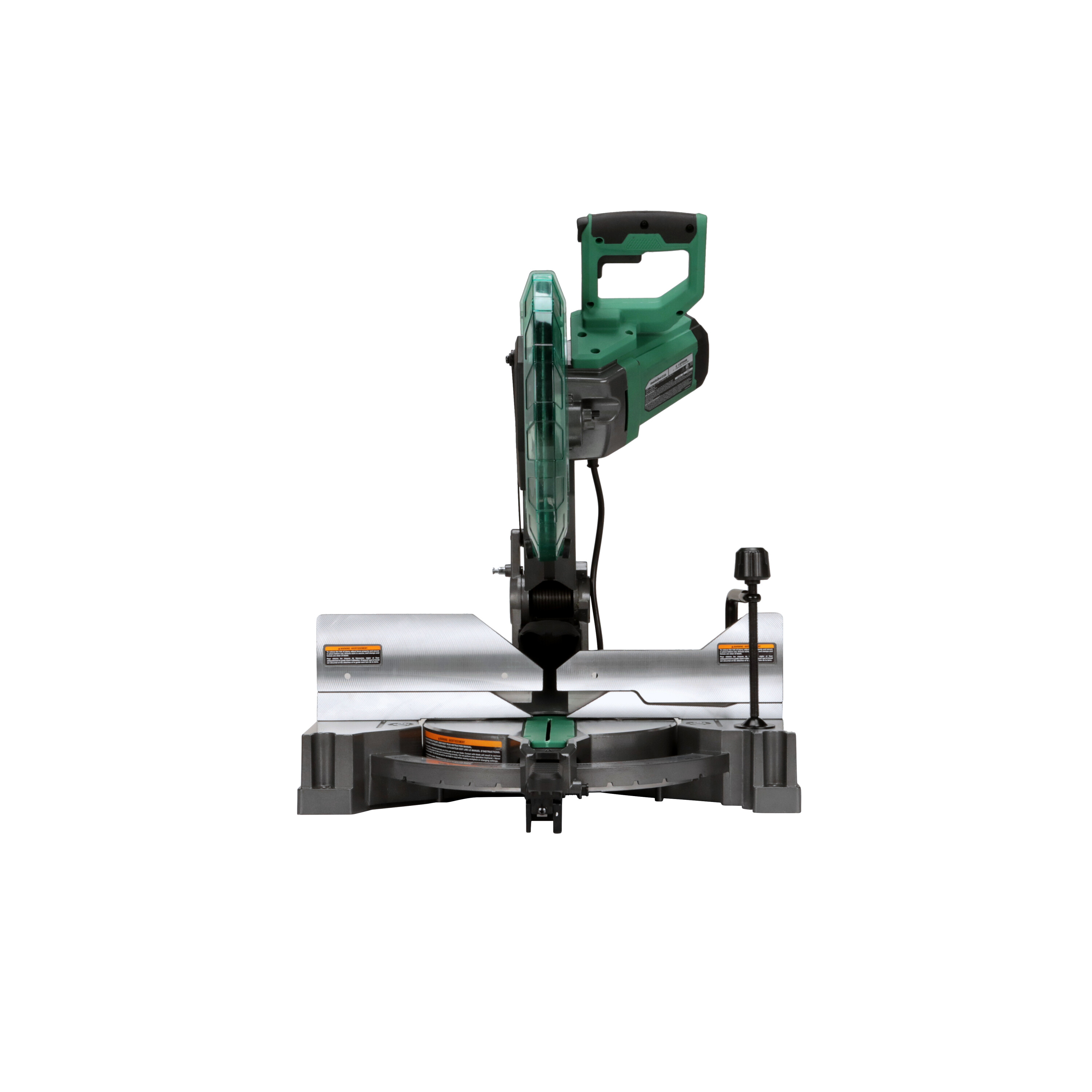

12 Inch Dual Bevel Compound Miter Saw | Metabo HPT C12FDHB
Model# C12FDHB
- FAST CUTS: Best-in-class 4,300 RPM no load speed
- EXTREME CUT CAPACITY: Up to 7-in material vertically and 7-1/2-in nested against the sliding fence
- PRECISION CUTS: With Xact Cut LED Shadow line
- FAST CUTS: Best-in-class 4,300 RPM no load speed
- EXTREME CUT CAPACITY: Up to 7-in material vertically and 7-1/2-in nested against the sliding fence
- PRECISION CUTS: With Xact Cut LED Shadow line
Features
FAST CUTS
Best-in-class 4,300 RPM no load speed
EXTREME CUT CAPACITY
Up to 7-in material vertically and 7-1/2-in nested against the sliding fence
PRECISION CUTS
With Xact Cut LED Shadow line
WARRANTY
Covered by Metabo HPT's professional 5-year Warranty
The 12 Inch Dual Bevel Compound Miter Saw (C12FDHB) is ideal for carpenters, framers, and woodworkers who demand precision and reliability. Featuring the Xact Cut LED Shadow Line System and extreme cut capacity, this Compound Miter Saw has the capacity to cut a 7-inch piece of baseboard standing up against the fence while also having the accuracy to cut with confidence in any lighting condition. With a miter range of 52 degrees left and right and a bevel range of 48 degrees left and right, you can accomplish anything the job may toss at you.
Features of the 12 Inch Dual Bevel Compound Miter Saw
- FAST CUTS: 15 Amp motor delivers best-in-class no-load speed of up to 4,300 RPM
- PRECISION CUTS: With Xact Cut LED Shadow Line System that accurately indicates where the blade will cut on the material in any lighting condition
- EXTREME CUT CAPACITY: Up to 7-in material vertically and 7-1/2-in nested against the sliding fence
- MITER RANGE: 0-52° to the right and left with detent stops a 0°, 15°, 22.5°, 31.6° and 45°
- DUAL BEVEL: 0-48° to the left and right with positive stops at 0°, 33.9° and 45°
- LARGE TABLE: For better material support with vice clamping system to secure the workpiece
- WEIGHT: Only 44 lbs. to facilitate maneuverability and portability
- WARRANTY: Professional 5-Year Limited Warranty
- TOOL CARD: Download the C12FDHB Tool Card
Included with the 12 Inch Dual Compound Miter Saw
- 12” TCT Wood Cutting Saw Blade
- Dust Bag
- Vise Assembly
- 6mm Blade Change Wrench
Optional Accessories
- Heavy-Duty Miter Saw Stand (UU240F)
- A Fold & Roll Miter Saw Stand UU240R)
- 12” 80T Fine Finish Blade (115436M)
- 12” 90T Fine Finish Blade (726101M)
- Extension Holder & Stopper (377095)
- Crown Molding Vise Assembly (339660)
- Crown Molding Stopper (L) (339730)
- Crown Molding Stopper (R) (339731)
Specifications
|
12” Dual Compound Miter Saw with Xact Cut LED Shadow Line System |
|||
|
C12FDHB |
|||
|
Amps |
15 |
||
|
Blade Diameter |
12” |
||
|
Arbor |
1” |
||
|
No-Load Speed |
4,300 RPM |
||
|
Miter Angle |
0-52˚ L & R |
||
|
Bevel Angle |
0-48˚ L & R |
||
|
Cut Capacity at 90° |
in |
2-3/4 x 8 or 7-13/16 x 1-1/16 |
|
|
Cut at 45° Miter (Left) |
in |
2-3/4 x 5-11/16 or 4-13/16 x 1-3/16 |
|
|
Cut at 45° Miter (Right) |
in |
2-3/4 x 5-11/16 or 4-1/32 x 19/32 |
|
|
Cut at 45° Bevel (Left) |
in |
1-31/32 x 8 |
|
|
Cut at 45° Bevel (Right) |
in |
11/16 x 8 |
|
|
Cut at 45° Miter/Bevel (Left) |
in |
1-3/16 x 5-11/16 |
|
|
Cut at 45° Miter/Bevel (Right) |
in |
5-11/16 x 11/16 |
|
|
Weight |
lbs. |
44.1 |
|
Includes
- 12” TCT Wood Cutting Saw Blade
- Dust Bag
- Vise Assembly
- 6mm Blade Change Wrench
