18V MultiVolt™ Cordless 10 Inch Single Bevel Miter Saw (Tool Body Only)

18V MultiVolt™ Cordless 10 Inch Single Bevel Miter Saw (Tool Body Only) | Metabo HPT C1810DFAQ4

Model# C1810DFAQ4

FREEDOM: Cordless Portability to GO work anywhere
TOOL BODY ONLY: Accepts any 18V or 18V/36V MultiVolt battery (sold separately)
COMPOUND CUTTING: Wide range of miter and bevel cutting options
Xact CUT LED SHADOW SYSTEM: To clearly mark the cut line and works in any lighting condition for ultimate accuracy
CUTS PER CHARGE: 180 2 x 4 cuts on a single charge

FREEDOM: Cordless Portability to GO work anywhere
TOOL BODY ONLY: Accepts any 18V or 18V/36V MultiVolt battery (sold separately)
COMPOUND CUTTING: Wide range of miter and bevel cutting options
Xact CUT LED SHADOW SYSTEM: To clearly mark the cut line and works in any lighting condition for ultimate accuracy
CUTS PER CHARGE: 180 2 x 4 cuts on a single charge

Features

CORDLESS PORTABILITY

Freedom to GO work anywhere

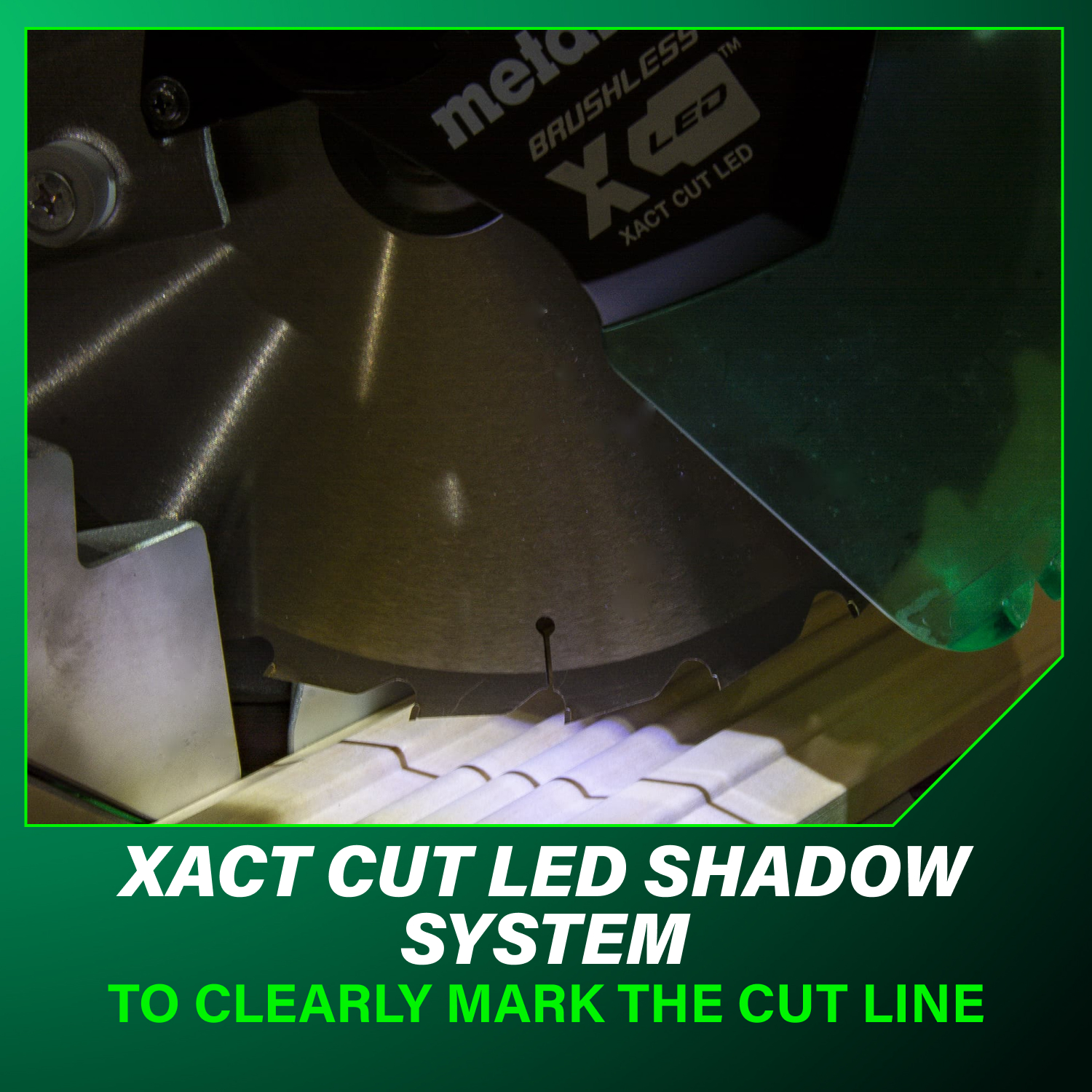

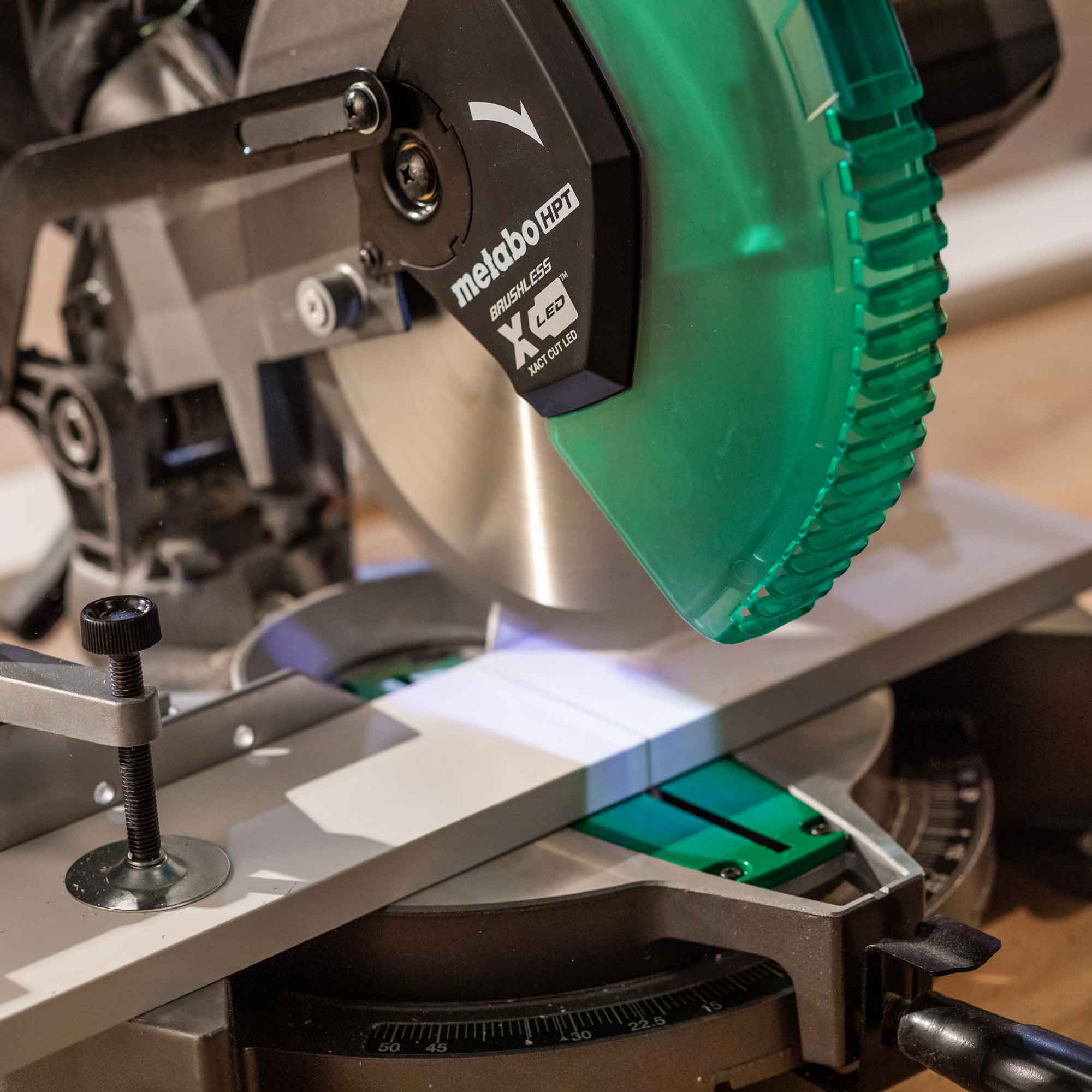

Xact CUT LED SHADOW SYSTEM

To clearly mark the cut line and works in any lighting condition for ultimate accuracy

BRUSHLESS

Technology for high efficiency, increased runtime and longer tool life

CUTS PER CHARGE

180 2 x 4 cuts on a single charge

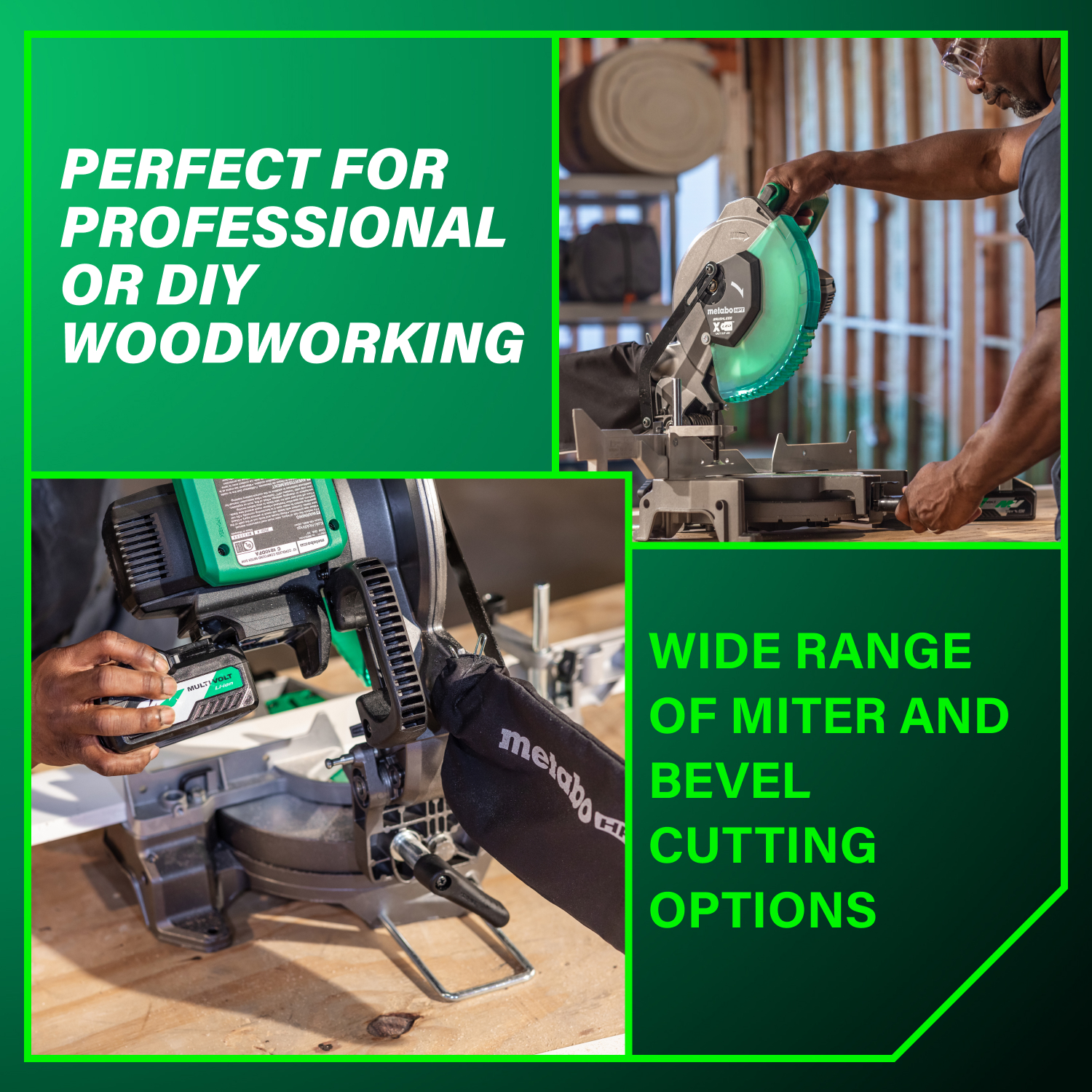

This 18V MultiVolt Cordless 10 Inch Single Bevel Miter Saw (Tool Body Only) - Model C1810DFAQ4 is the first of its kind in the market. Featuring an Xact Cut LED Shadow Line system for cutting accuracy, and a 52 degree miter capacity to the left and right and a 45 degree left bevel capacity to make compound cuts in any lighting condition with ease. Weighing just 19.6 lbs. this cordless miter saw offers the perfect combination of sturdiness and portability for the professional or DIYer looking for a time-saving miter saw at a great price. With an 18V/36V 5.0 Ah MultiVolt battery (sold separately) it can power through 180 2 x 4 cuts on a single charge. It also features miter detent stops, an electric brake, a thumb activated miter lock, a super efficient brushless motor capable of 3,800 RPM, a large extendable rip fence to help cut large work pieces, and 5-year Metabo HPT warranty for peace of mind.

This 18V MultiVolt Cordless 10" Single Bevel Miter Saw is part of the expanding MultiVolt System of 18-Volt and 36-Volt power tools from Metabo HPT. GO lighter with 18V batteries or GO longer with the unique MultiVolt battery that works on both 18V and 36V tools to double your runtime for up to 8.0Ah* of runtime per charge for more power on the GO.

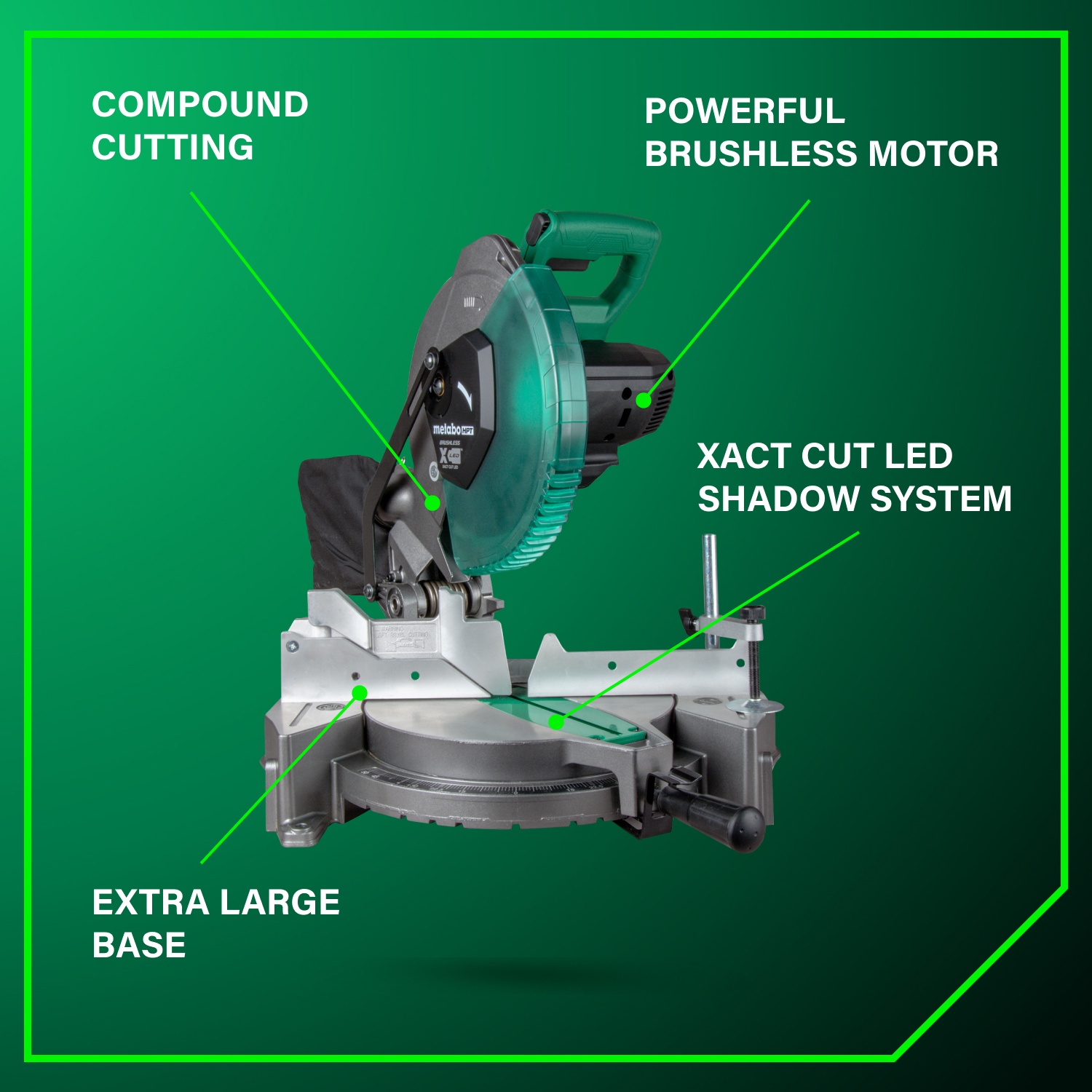

Features of the 18V Cordless 10 Inch Single Bevel Miter Saw (Tool Body Only)

FREEDOM: Cordless Portability to GO work anywhere
TOOL BODY ONLY: Accepts any 18V or 18V/36V MultiVolt battery (sold separately)
COMPOUND CUTTING: Wide range of miter and bevel cutting options
Xact CUT LED SHADOW SYSTEM: To clearly mark the cut line and works in any lighting condition for ultimate accuracy
CUTS PER CHARGE: 180 2 x 4 cuts on a single charge

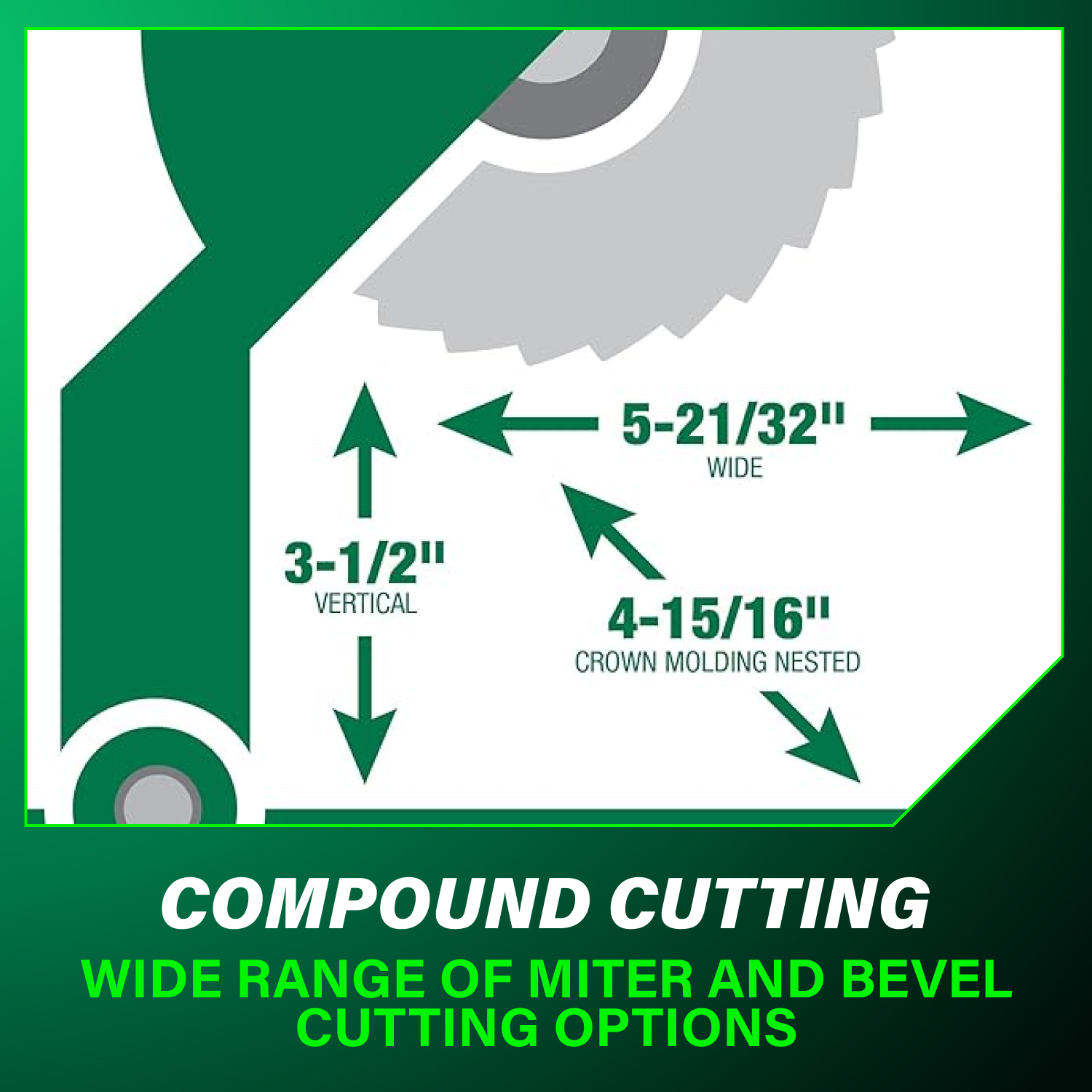

CAPACITY: Up to 5-21/32" at 90 degrees
CUTTING SPEED: 3,800 RPM max no-load speed
BRUSHLESS: Technology for higher efficiency, increased runtime and longer tool life
ELECTRIC BRAKE: Stops blade rotation within seconds to prevent unintentional cuts
STABILITY: Extendable rip fence and a large table
SIZE: Extra large base for great support and handling of material
LED LIGHT: Convenient for use in dark spaces
BEVEL RANGE: 0 - 45 degrees to the left
MITER RANGE: 0 - 52 degrees to left and right
ERGONOMICS: Classic Metabo HPT controls and comfort while cutting

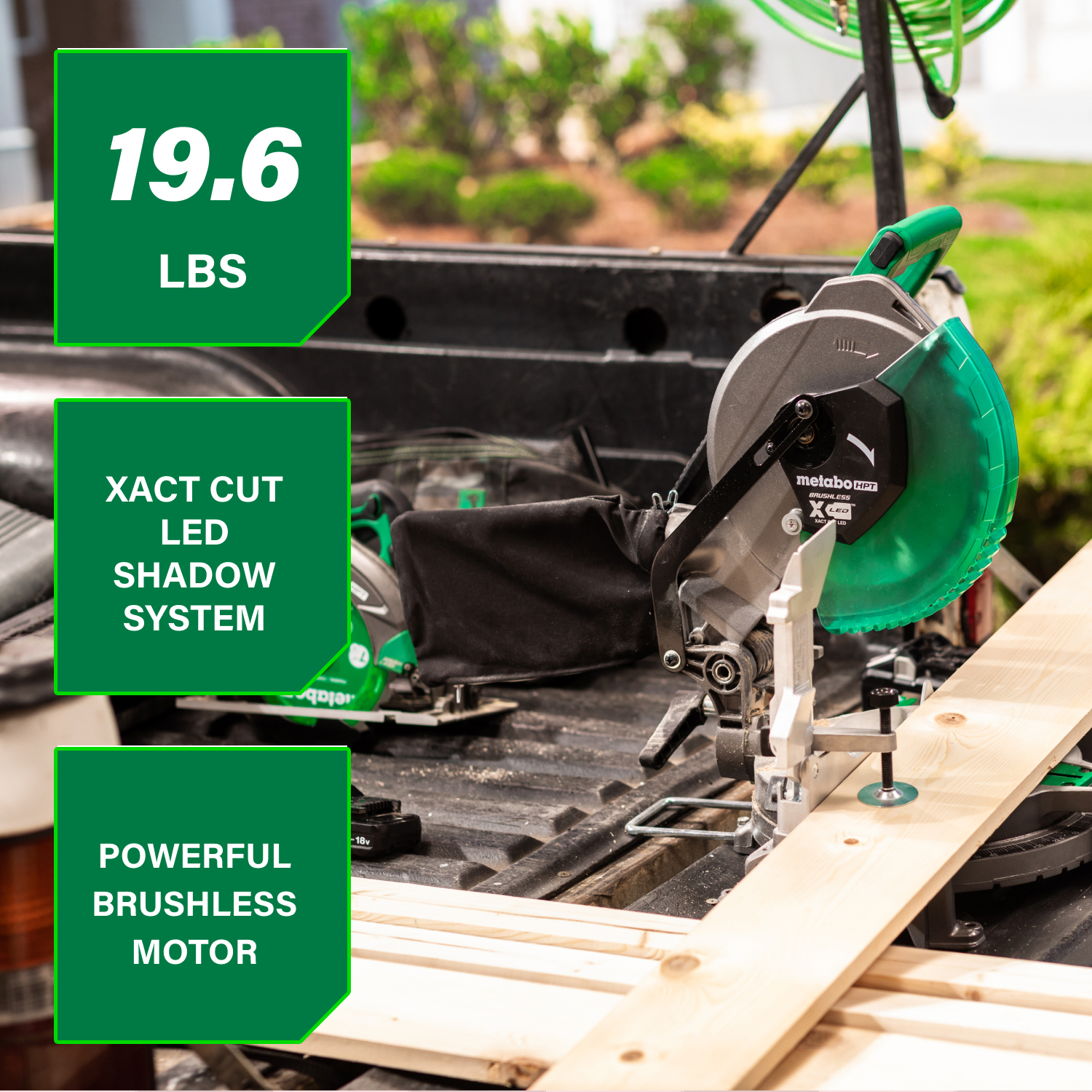

LIGHTWEIGHT: 19.6 lbs. for ease of transport

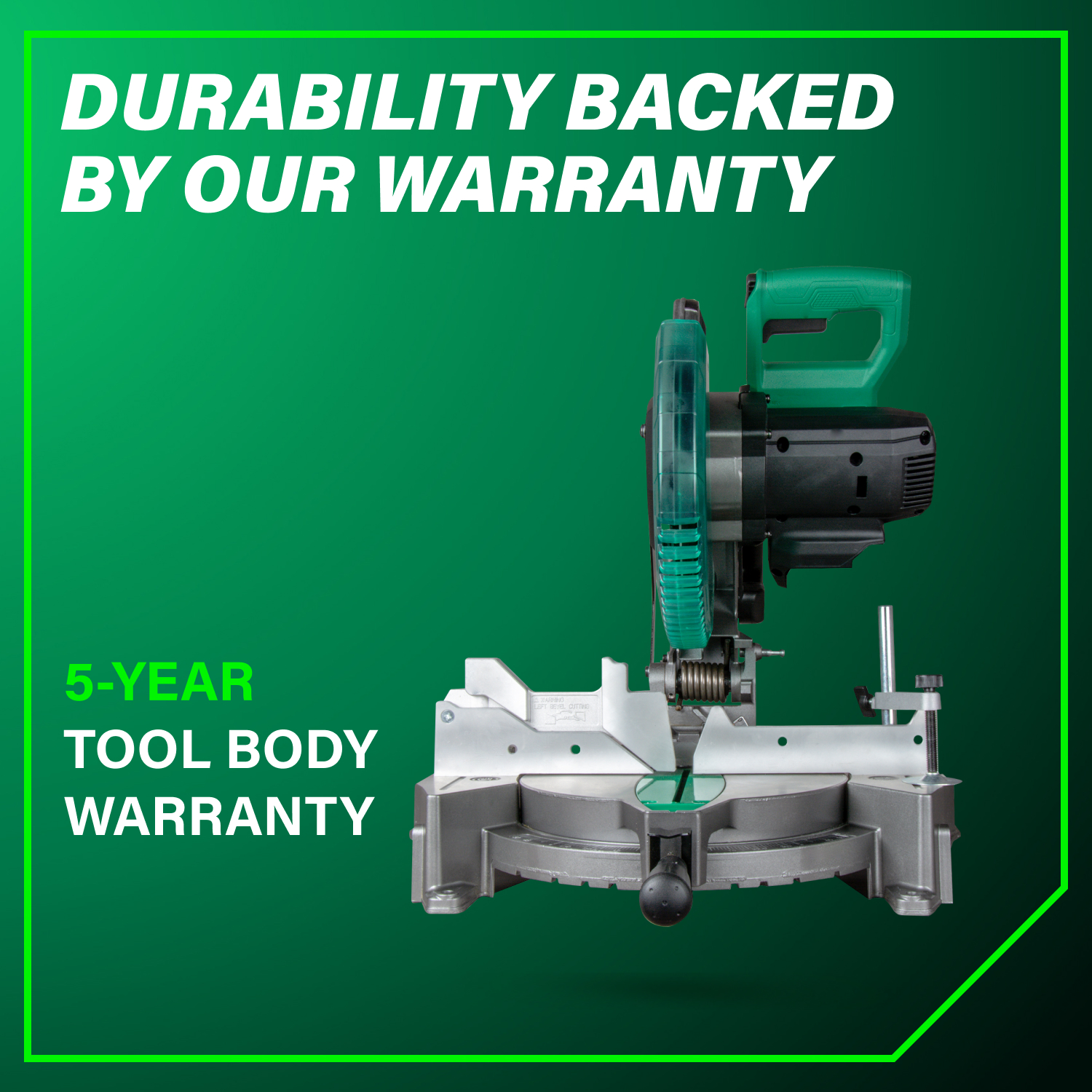

5 - YEAR WARRANTY: Tool Body only
ALSO AVAILABLE: Kitted version with 18V/36V 5.0 Ah MultiVolt battery and charger C1810DFA
TOOL CARD: Download the C1810DFAQ4 Tool Card

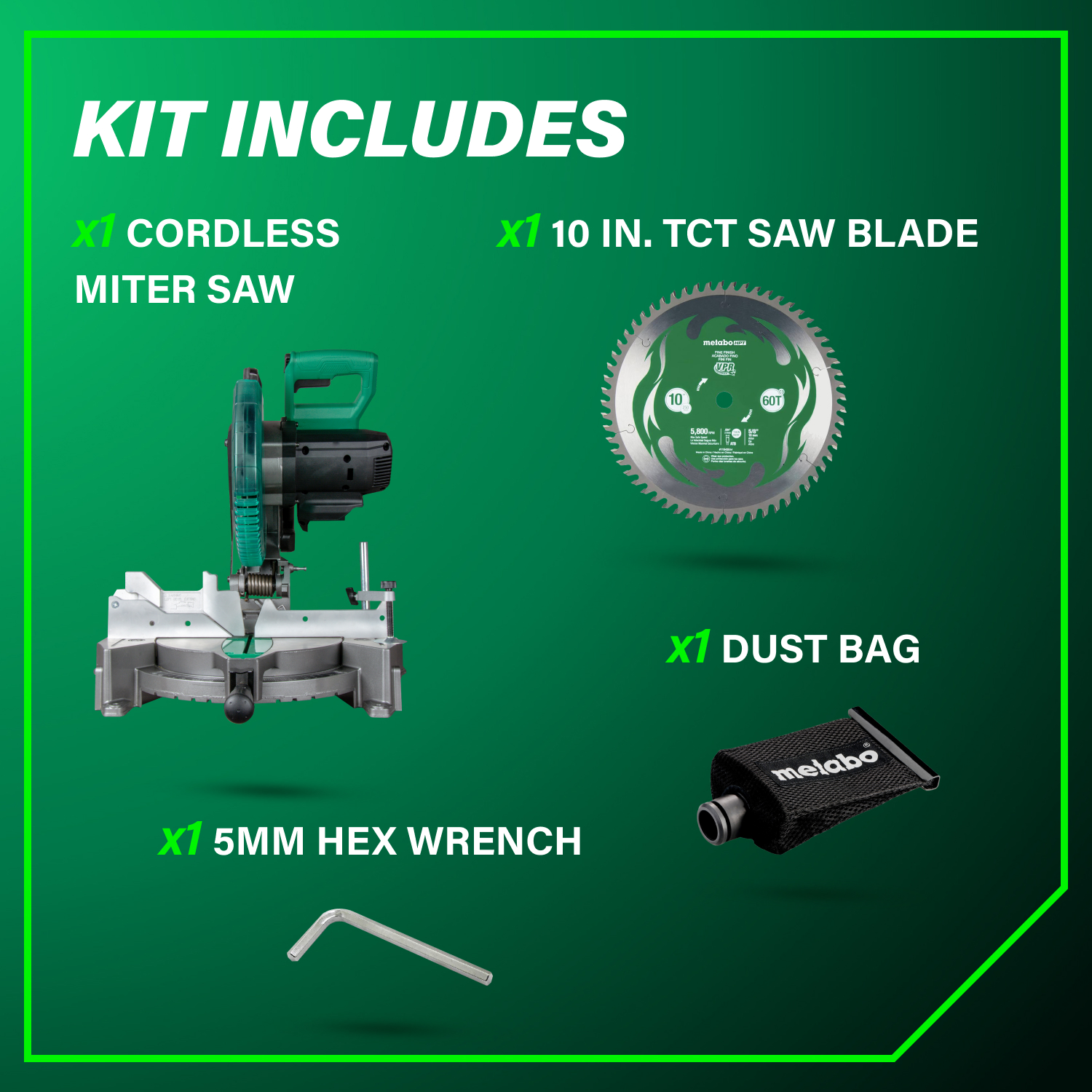

Included with the 18V Cordless 10 Inch Single Bevel Miter Saw

10 in. (255mm) TCT Saw Blade for Wood (No. of teeth 24) (318963)
Dust Bag (322955M)
5 mm Hex. Bar wrench (944459)
Vise Assembly w/knob bolt
Holder
Side Handle
Sub Fence
Flat Screw
M6 Nylon Nut
Plate (A)

Optional Accessories for the 18V Cordless 10 Inch Single Bevel Miter Saw

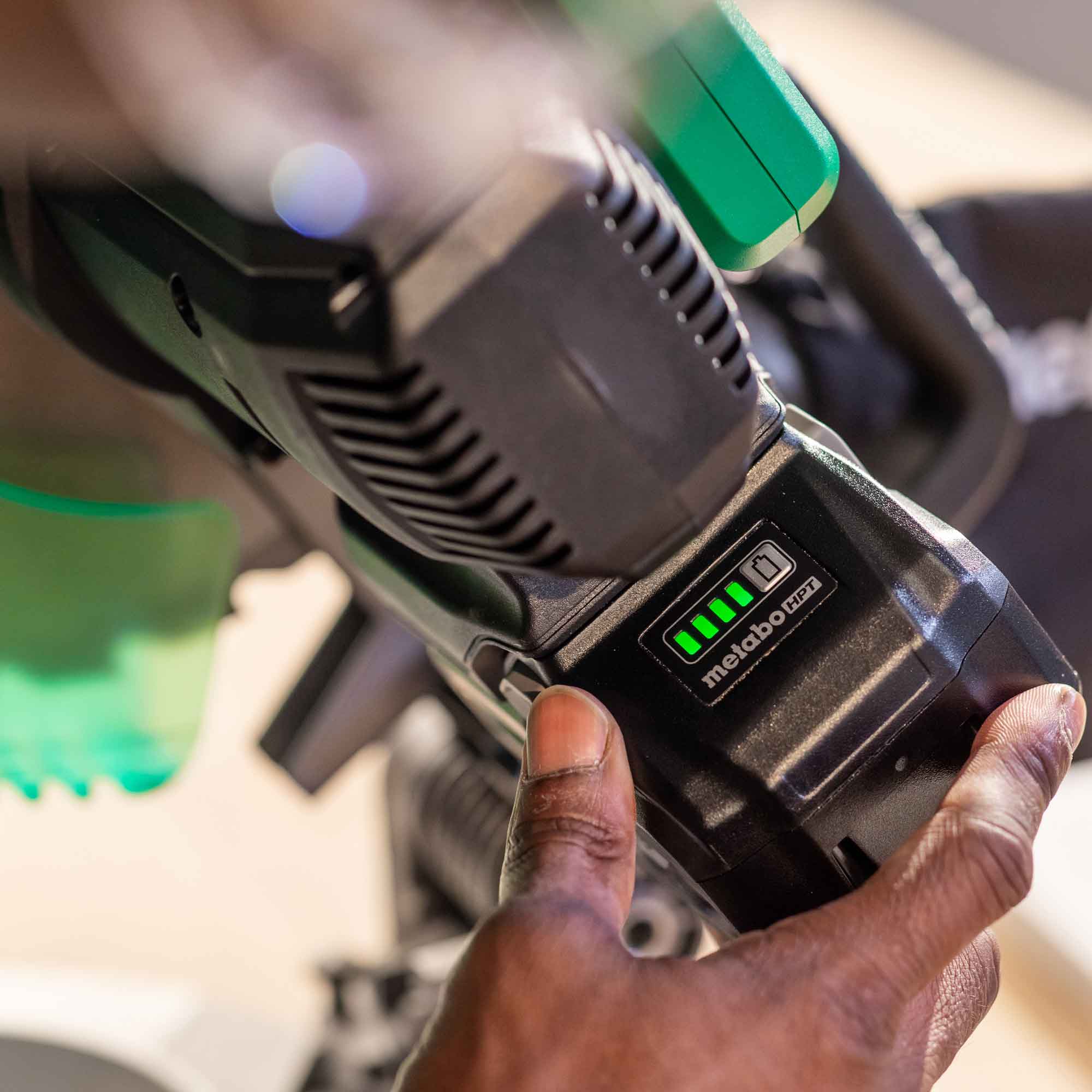

18V/36V MultiVolt Lithium Ion Slide Battery 2.5Ah/5.0Ah (BSL36A18)
18V/36V MultiVolt Lithium Ion Slide Battery 4.0Ah/8.0Ah (BSL36B18)
Battery Charger (UC18YSL3)
Holder (974562M)
6 mm machine screw (949258)
Extension Holder and Stopper (322710)
Saw Blade 10 in (255 mm) TCT Saw blade for Wood Cut (Total Teeth 60) (976472)
Saw Blade 10 in. (255 mm) TCT Saw blade for Aluminum Cut (Total Teeth 100) (319658)
Crown Molding Vise Ass'y (322712)
Crown Molding Stopper (L) (322713)
Crown Molding Stopper (R) (322714)

Specifications

Voltage	18V
Battery Type	Lithium Ion Slide-Type
Motor	DC Brushless
Blade Diameter	10 in.
Arbor	5/8in
No-Load Speed	3,800 Power Mode (RPM)
Miter Range	Left & Right 0°- 52°
Miter Detent Stops	Right/Left;
Bevel Range	Left 0°- 45°
Bevel Stops	Adjustable 0°- 45°
Cut Capacity at 90°	2-5/16 in. (59 mm) x 5-31/32 in. (144 mm)
Miter Left 45°	2-5/16 in. (59mm) x 4 in. (102 mm)
Bevel Left 45°	1-5/8 in. (41 mm) x 5-21/32 in. (144 mm)
Miter & Bevel Left 45°	1-5/8 in. (41mm) x 4 in. (102 mm)
Height	21.5"
Weight	19.6 lbs
LED Light	Yes
Xact Cut LED Shadow Line	Yes
Constant Speed Control	Yes
Positive Stops	L/R 0, 15, 22.5, 31.6, 45 degrees
Warranty	5-Year Tool Body

Includes

Included with the 18V Cordless 10 Inch Single Bevel Miter Saw

10 in. (255mm) TCT Saw Blade for Wood (No. of teeth 24) (318963)
Dust Bag (322955M)
5 mm Hex. Bar wrench (944459)
Vise Assembly w/knob bolt
Holder
Side Handle
Sub Fence
Flat Screw
M6 Nylon Nut
Plate (A)

Optional Accessories for the 18V Cordless 10 Inch Single Bevel Miter Saw

18V/36V MultiVolt Lithium Ion Slide Battery 2.5Ah/5.0Ah (BSL36A18)
18V/36V MultiVolt Lithium Ion Slide Battery 4.0Ah/8.0Ah (BSL36B18)
Battery Charger (UC18YSL3)
Holder (974562M)
6 mm machine screw (949258)
Extension Holder and Stopper (322710)
Saw Blade 10 in (255 mm) TCT Saw blade for Wood Cut (Total Teeth 60) (976472)
Saw Blade 10 in. (255 mm) TCT Saw blade for Aluminum Cut (Total Teeth 100) (319658)
Crown Molding Vise Ass'y (322712)
Crown Molding Stopper (L) (322713)
Crown Molding Stopper (R) (322714)

Resources

C1810DFAQ4 Parts List C1810DFAQ4 Owners Manual
