18V MultiVolt Cordless 30 Degree 3-1/2" Paper Tape Framing Nailer (1x4.0Ah) | Metabo HPT NR1890DCST
Model# NR1890DCST
- SAME TOOL, BETTER BATTERY: Now with the 4.0Ah 18V battery that features a fuel gauge for convenience
- FASTENERS: Accepts clipped head and offset round head 30° paper tape collated nails from 2" up to 3-1/2" in length and .113" to .131" in diameter
- GO FASTER: Up to 2 nails per second and 600 nails per charge with the included 18V 4.0Ah battery
- WARRANTY: Covered by Metabo HPT's Lifetime Ion Tool Warranty and two-year lithium Ion battery warranty
- SAME TOOL, BETTER BATTERY: Now with the 4.0Ah 18V battery that features a fuel gauge for convenience
- FASTENERS: Accepts clipped head and offset round head 30° paper tape collated nails from 2" up to 3-1/2" in length and .113" to .131" in diameter
- GO FASTER: Up to 2 nails per second and 600 nails per charge with the included 18V 4.0Ah battery
- WARRANTY: Covered by Metabo HPT's Lifetime Ion Tool Warranty and two-year lithium Ion battery warranty
Features
Metabo HPT's Air Spring Drive System uses sealed, compressed air to drive each nail which means zero ramp up time and driving speeds of up to 2 nails per second. Powered by Metabo HPT's lightweight 18V 4.0Ah battery with fuel gauge, this nailer is a sure thing to get the job done efficiently, completely, and comfortably.
The NR1890DCST 18V Cordless Paper Tape Framing Nailer is a part of the expanding MultiVolt System of 18-Volt and 36-Volt power tools from Metabo HPT. GO lighter with 18V batteries or GO longer with the unique MultiVolt battery that works on both 18V and 36V tools to double your runtime for up to 8.0Ah of runtime per charge for more power on the GO.
Features of the Cordless Framing Nailer
- SAME TOOL, BETTER BATTERY: Now with the 4.0Ah 18V battery that features a fuel gauge for convenience
- AWARD: Rated the Pro Preferred Nailer for 9 years running (2014 - 2022) by Builder and Developer Magazine
- CORDLESS FREEDOM: Performance similar to a pneumatic tool but with cordless freedom
- FASTENERS: Accepts clipped head and offset round head 30° paper tape collated nails from 2" up to 3-1/2" in length and .113" to .131" in diameter
- GO FASTER: Up to 2 nails per second with no ramp-up time
- LONG LASTING: 600 Nails per charge using the included compact 18V 4.0Ah battery
- APPLICATIONS: Ideal for all construction framing applications - particularly useful for punch out work on a jobsite without the need for a compressor or hose
- EASY ADJUSTMENT: Tool-less depth of drive and selective actuation (bump or contact drive)
- ZERO RAMP UP: No refilling of the air tank required, resulting in faster action
- LOW MAINTENANCE AIR SPRING DRIVE SYSTEM: Delivers similar performance as a pneumatic tool
- BRUSHLESS MOTOR TECHNOLOGY: Experience longer runtime per charge, less maintenance, and increased durability
- HIGH OUTPUT ENERGY: To drive into engineered lumber
- DRY-FIRE LOCKOUT: Assures nail placement and prevents damage to work surfaces
- SIDE LOCK SWITCH: Prevent accidental firing
- CONVENIENCE: Integrated belt hook
- RECOMMENDED: Use Metabo HPT Framing Nails for best results
- WARRANTY: Covered by Metabo HPT's Lifetime Ion Tool Warranty and two-year lithium Ion battery warranty
- TOOL CARD: Download the NR1890DCST Tool Card

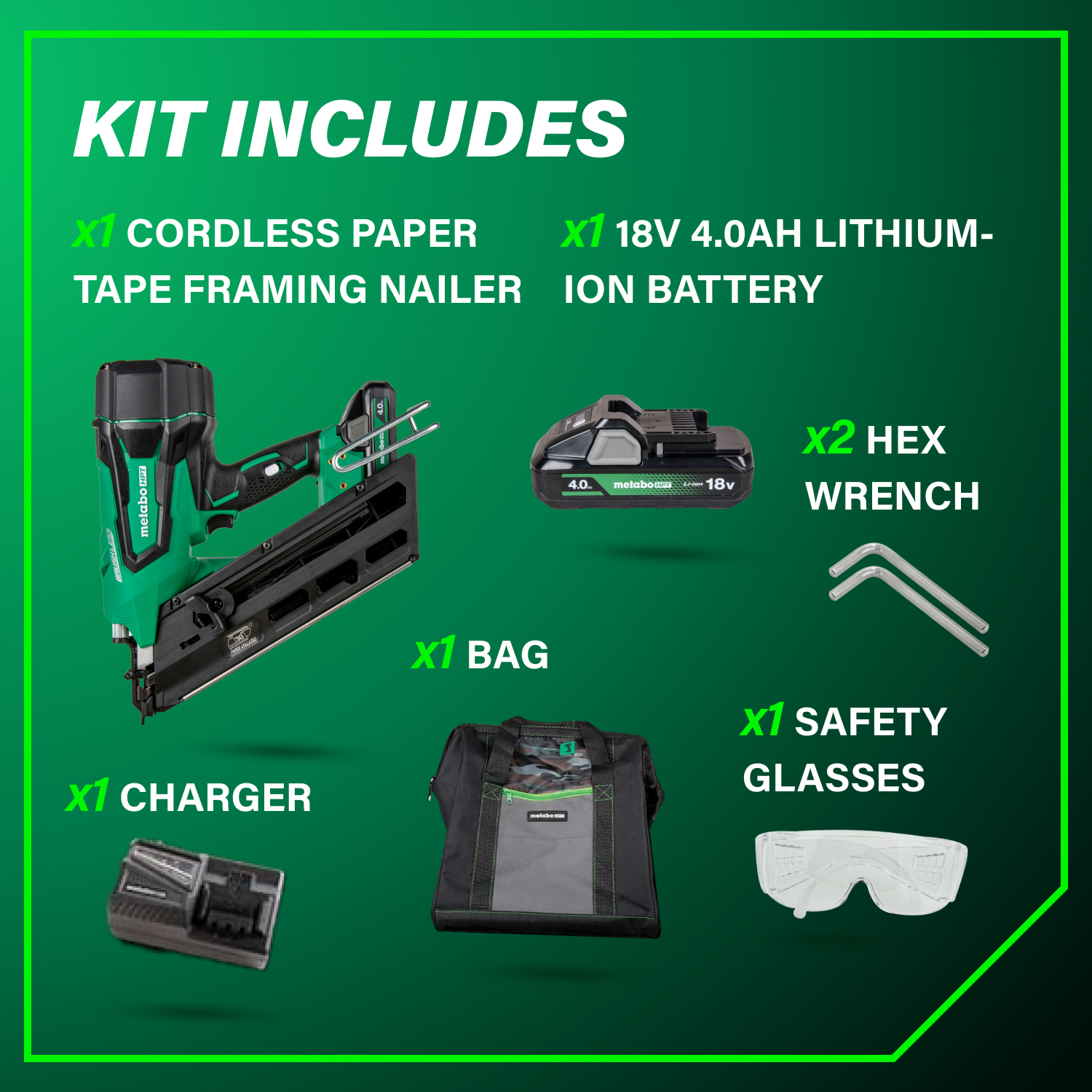

Included with the 18V 30° Cordless Framing Nailer
- 18V 4.0Ah Lithium Ion Battery with Fuel Indicator (378681M)
- 18V Lithium Ion Charger (UC18YFSL)
- 3mm Hex Wrench (943277)
- 4mm Hex Wrench (944458)
- Contractor Bag (372294M)
- Safety Glasses (875769)
- Pivoting Rafter Hook
Optional Accessories for the 18V 30° Cordless Framing Nailer (Sold Separately)
|
18V Li-Ion Compact 1.5Ah Battery (BSL1815X) |
|
|
18V Li-Ion Compact 2.0Ah Battery (BSL1820) |
|
|
18V Li-Ion Compact 3.0Ah Battery (BSL1830C) |
|
|
18V Li-Ion Compact 4.0Ah Battery (BSL1840M) |
|
|
18V/36V MultiVolt Li-Ion 5.0Ah Battery (BSL36A18) |
|
|
18V/36V MultiVolt Li-Ion 8.0Ah Battery (BSL36B18) |
|
|
(2) 18V Lithium Ion 2.0Ah Batteries w/ Charge Indicators / Charger Kit |
|
|
(2) 18V Li-Ion Compact 3.0Ah Batteries & Charger Starter Kit |
|
|
(1) 18V/36V MultiVolt Li-Ion 4.0Ah Battery & Charger Starter Kit |
Specifications
|
18V MultiVolt™ Brushless 3-1/2" Paper Tape Framing Nailer |
||
|
NR1890DCST |
||
|
Volts |
(V) |
18 |
|
Battery Type |
Li-Ion |
|
|
Fastener Head Type |
Clipped & Offset Round Head |
|
|
Driving Speed |
(Nails/Sec) |
2 |
|
Magazine Capacity |
(Nails) |
47 |
| Magazine Angle |
(deg) |
30 |
|
Nail Length |
(in) |
2 - 3-1/2 |
|
Nail Diameter |
(in) |
.113" to .131" |
|
Nails per Charge (w/ 4.0Ah Battery) |
600 |
|
|
Depth of Drive Adjustment |
Tool-Less |
|
|
Firing Mode |
Sequential or Bump |
|
|
Dry-Fire Lockout |
Equipped |
|
|
Battery Charge Indicator |
On Tool/On Battery |
|
|
Rafter Hook |
Equipped |
|
|
Dimensions |
13-1/2" x 12-11/64" x 5" |
|
|
Weight (w/out battery) |
(lbs) |
9.0 |
Includes
- 18V 4.0Ah Lithium Ion Battery with Fuel Indicator (378681M)
- 18V Lithium Ion Charger (UC18YFSL)
- 3mm Hex Wrench (943277)
- 4mm Hex Wrench (944458)
- Contractor Bag (372294M)
- Safety Glasses (875769)
- Pivoting Rafter Hook
Optional Accessories for the 18V 30° Cordless Framing Nailer (Sold Separately)
|
18V Li-Ion Compact 1.5Ah Battery (BSL1815X) |
|
|
18V Li-Ion Compact 2.0Ah Battery (BSL1820) |
|
|
18V Li-Ion Compact 3.0Ah Battery (BSL1830C) |
|
|
18V Li-Ion Compact 4.0Ah Battery (BSL1840M) |
|
|
18V/36V MultiVolt Li-Ion 5.0Ah Battery (BSL36A18) |
|
|
18V/36V MultiVolt Li-Ion 8.0Ah Battery (BSL36B18) |
|
|
(2) 18V Lithium Ion 2.0Ah Batteries w/ Charge Indicators / Charger Kit |
|
|
(2) 18V Li-Ion Compact 3.0Ah Batteries & Charger Starter Kit |
|
|
(1) 18V/36V MultiVolt Li-Ion 4.0Ah Battery & Charger Starter Kit |
