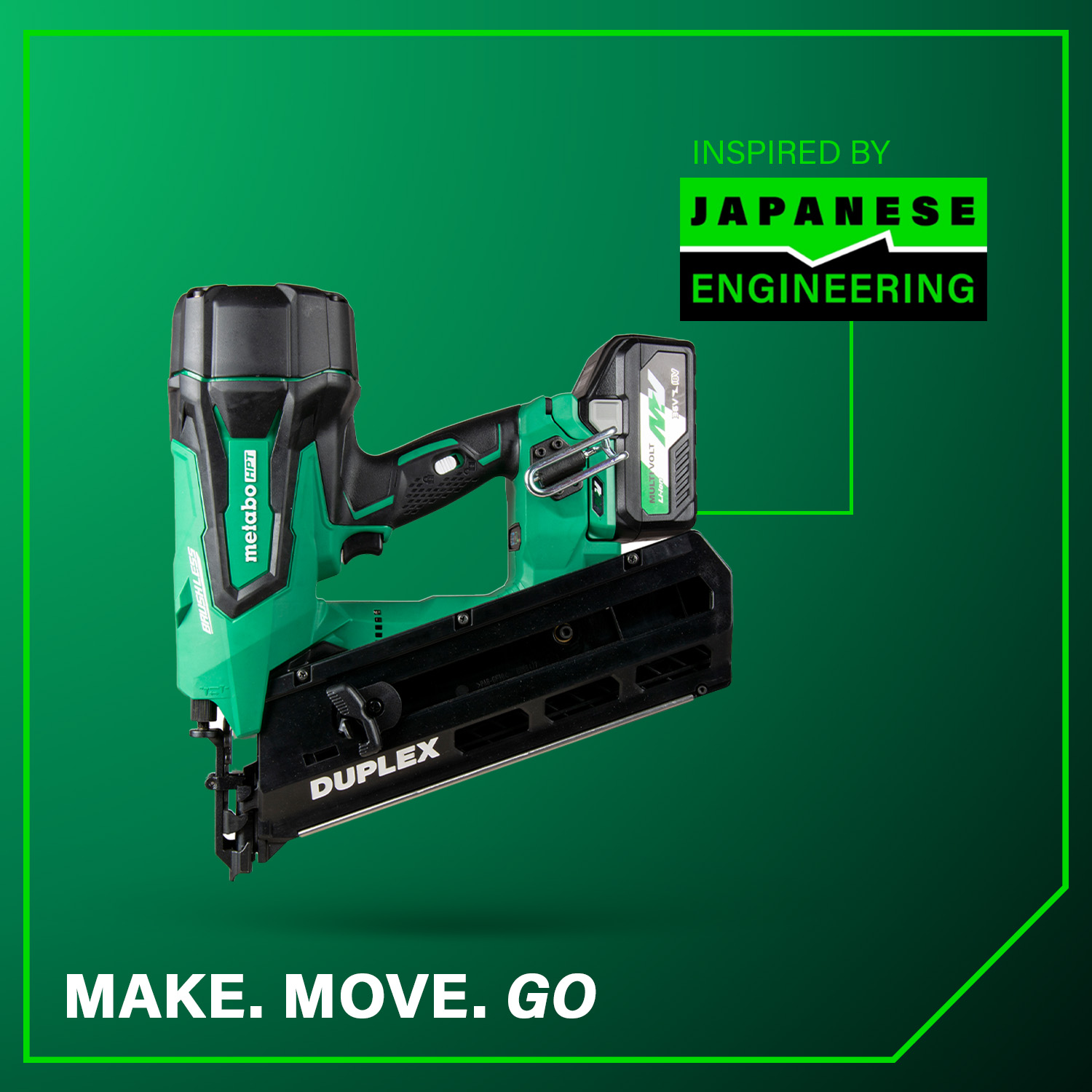

36V 3-1/2 Inch Forming Nailer | Metabo HPT NR3675DD
Model# NR3675DD
- APPLICATIONS: Ideal for building concrete forms and temporary wood structures like scaffolding with easy nail removal
- DUPLEX / DOUBLE HEADED FASTENERS:
- 6D: 2-1/4” x .131 (50214-6D)
- 8D: 2-3/4” x .131 (50234-8D)
- 16D: 3-1/2” x .131 (50312-16D)
- DRIVES: Up to 900 nails per charge (w/ 36V 2.5Ah MultiVolt™ battery)
- AWARD: 2020 Pro Tool Innovation Award Winner for Forming Nailers
- WARRANTY: Lifetime Lithium Ion Tool Body Warranty
- APPLICATIONS: Ideal for building concrete forms and temporary wood structures like scaffolding with easy nail removal
- DUPLEX / DOUBLE HEADED FASTENERS:
- 6D: 2-1/4” x .131 (50214-6D)
- 8D: 2-3/4” x .131 (50234-8D)
- 16D: 3-1/2” x .131 (50312-16D)
- DRIVES: Up to 900 nails per charge (w/ 36V 2.5Ah MultiVolt™ battery)
- AWARD: 2020 Pro Tool Innovation Award Winner for Forming Nailers
- WARRANTY: Lifetime Lithium Ion Tool Body Warranty
Features
HIGH OUTPUT
Fires 2 nails per second and up to 900 nails per charge with the included 2.5Ah MultiVolt battery
_for-web.jpg?sfvrsn=d09680df_1)
AWARDS
MultiVolt Tools Recognized by Pro Tool Innovation Awards
-(1)_for-web.jpg?sfvrsn=f9e83a4b_1)

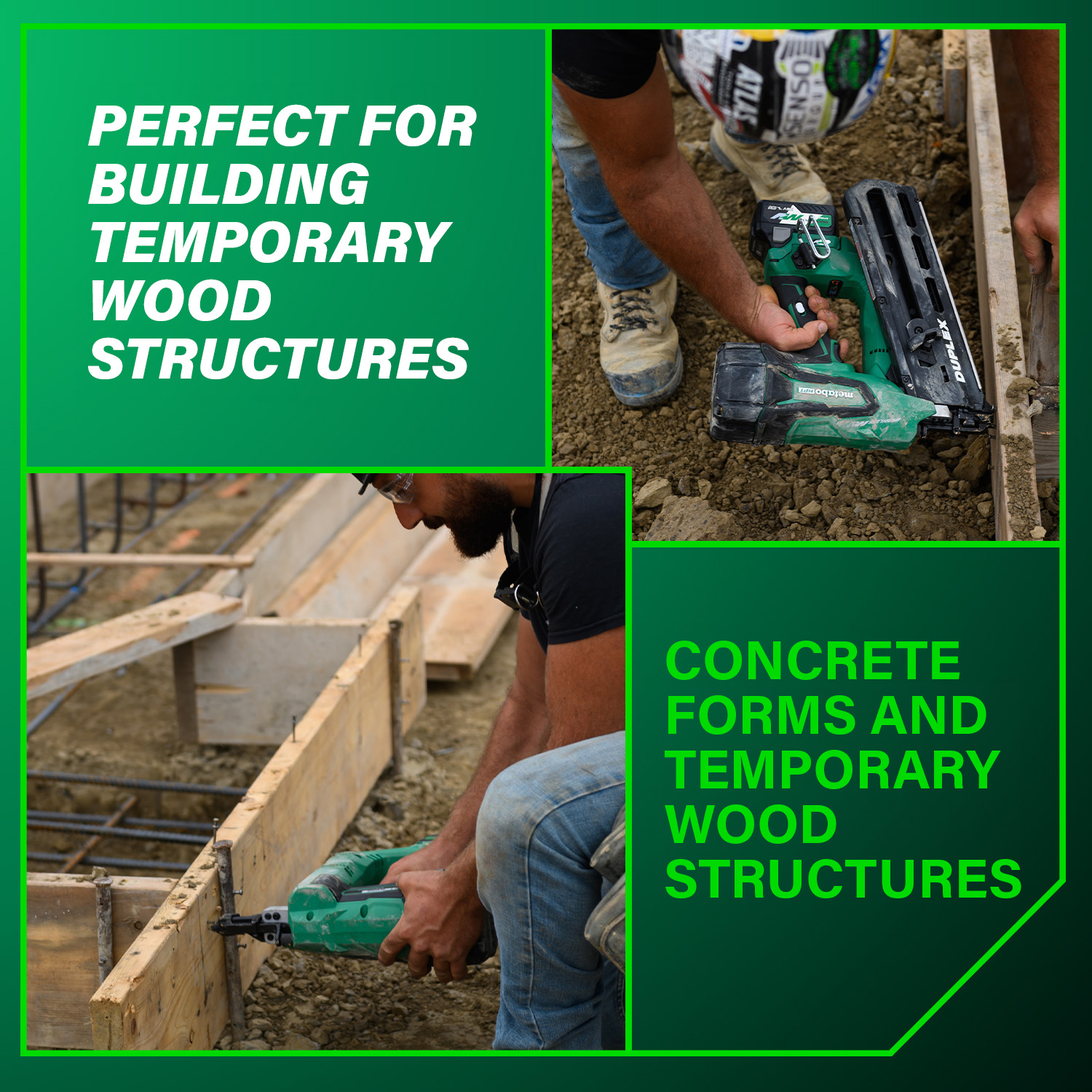

APPLICATIONS
Ideal for building temporary wood structures like concrete forms and scaffolding
_for-web.jpg?sfvrsn=5e247e53_1)

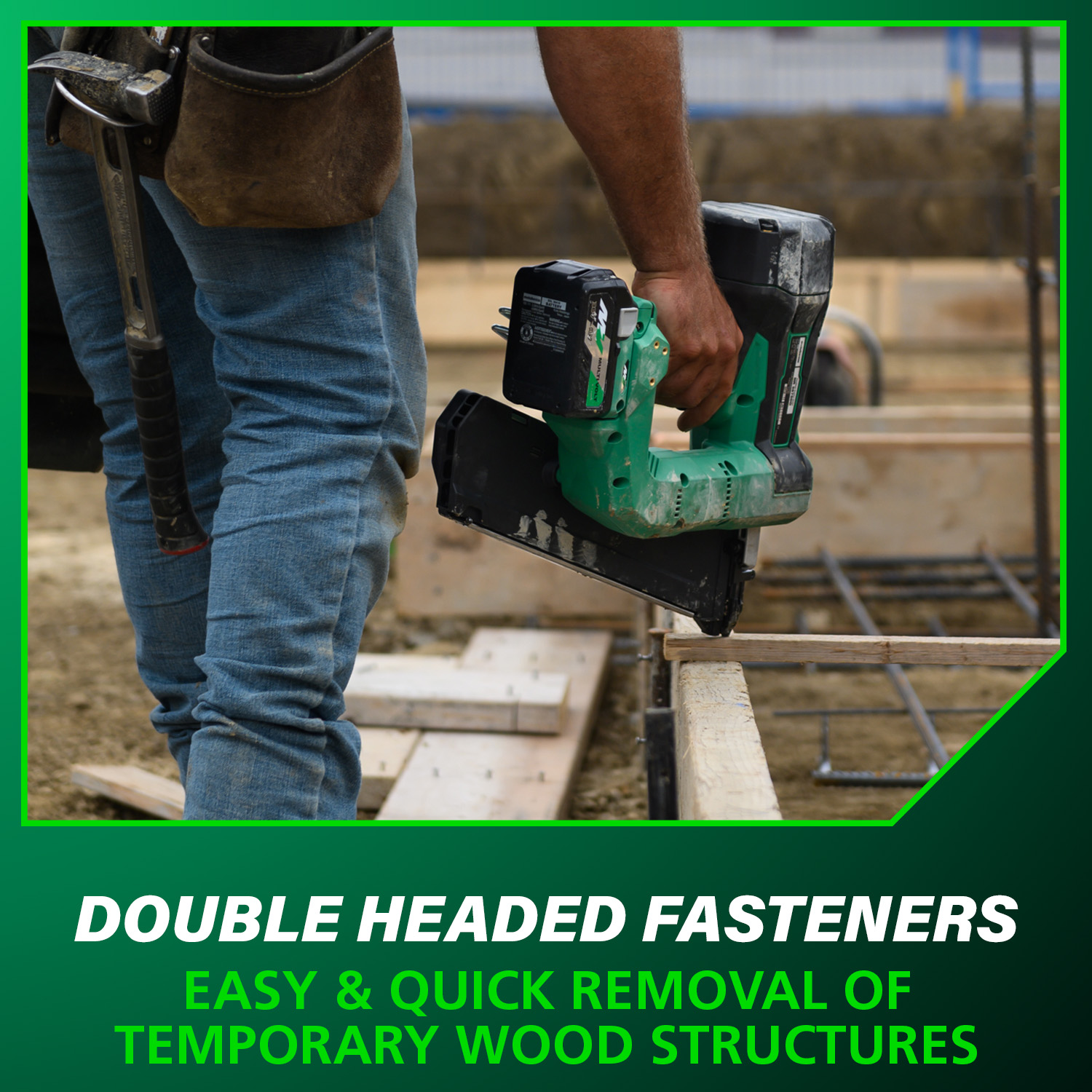

DUPLEX / DOUBLE HEADED FASTENERS
For easy and quick removal of nails from temporary wood structures
The 36V MultiVolt™ Cordless Forming Nailer (NR3675DD) is here to revolutionize the concrete forming jobsite as it allows for a massive productivity boost vs. hand driving Duplex/double headed nails. Save money on the jobsite by saving valuable time! Move quickly while building concrete forms and scaffolding with the industry's first, battery only, cordless Forming Nailer solution.

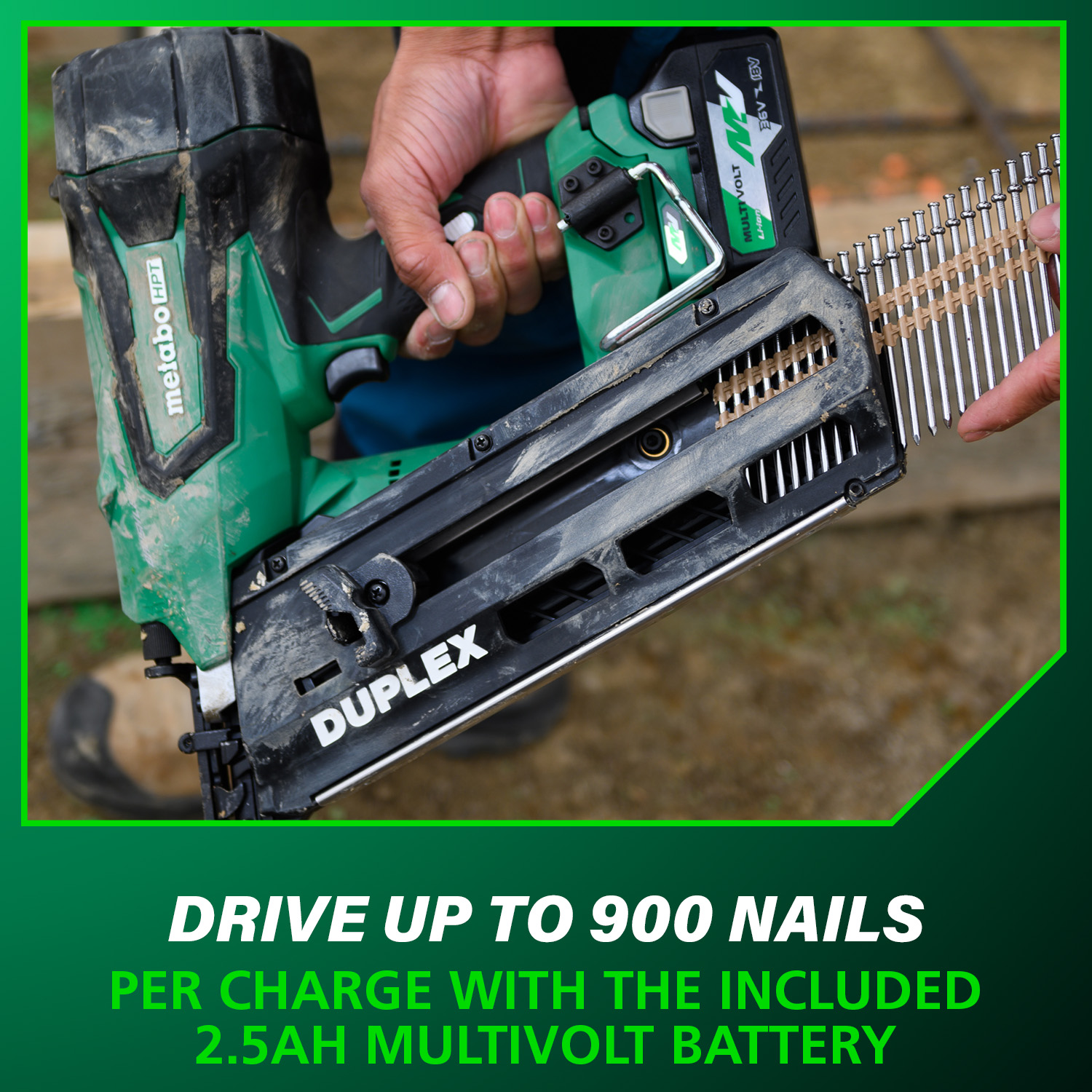

Metabo HPT's unique Air Spring Drive System produces a similar feel to using a pneumatic nailer, combined with the power of the MultiVolt™ battery, this cordless Forming nailer works all day long, driving up to 16D Duplex/double headed nails. Drive up to 900 16D 3-1/2" Duplex/double headed nails per charge with the included 2.5Ah MultiVolt battery. For bigger jobs, power up with a 4.0Ah MultiVolt battery and drive up to 1,200 Duplex/double headed nails on a single charge!
Metabo HPT's unique Air Spring Drive System produces a similar feel to using a pneumatic nailer, combined with the power of the MultiVolt™ battery, this cordless Forming nailer works all day long, driving up to 16D Duplex/double headed nails. Drive up to 900 16D 3-1/2" Duplex/double headed nails per charge with the included 2.5Ah MultiVolt battery. For bigger jobs, power up with a 4.0Ah MultiVolt battery and drive up to 1,200 Duplex/double headed nails on a single charge!

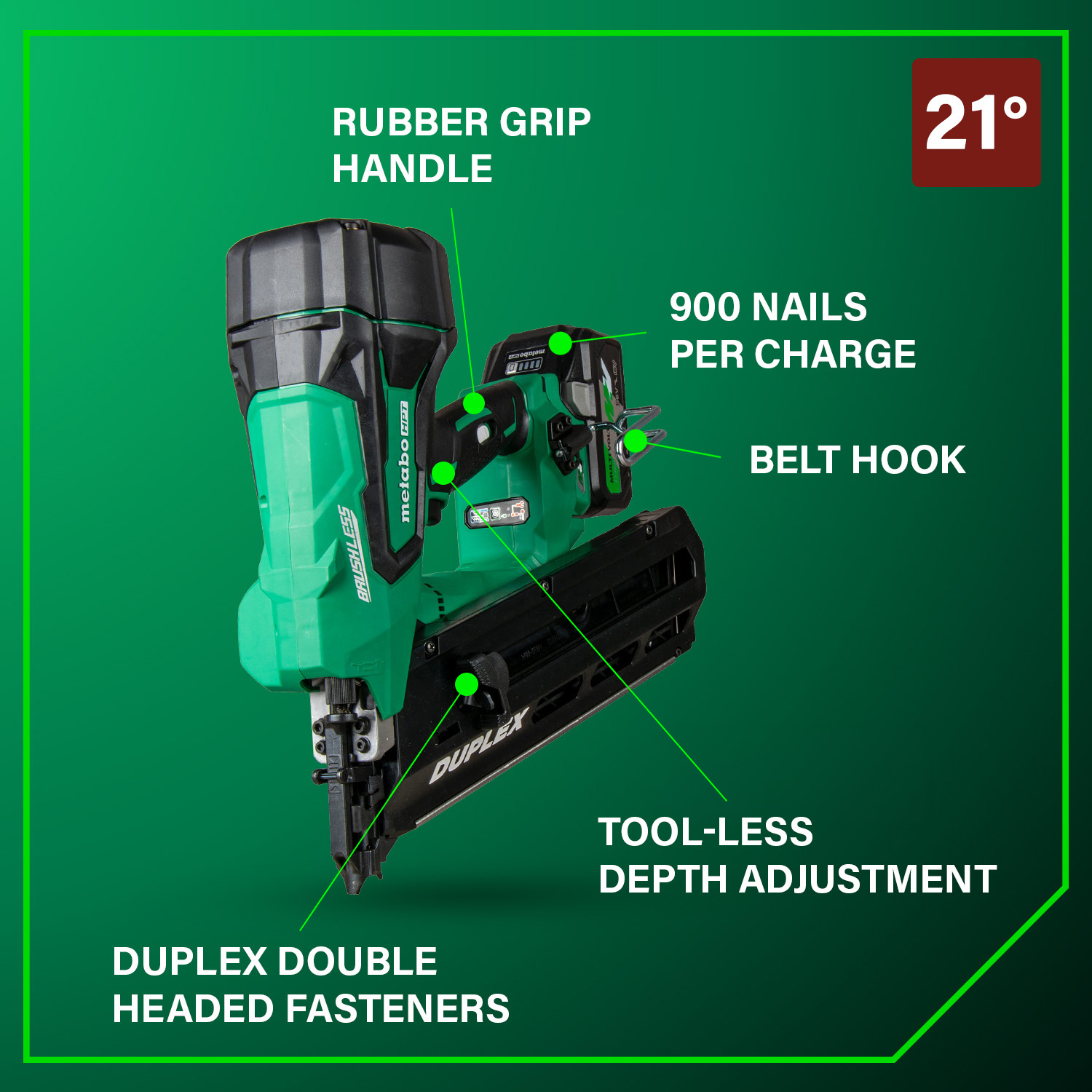

Features of the MultiVolt™ Cordless Forming Nailer:
- AWARD: 2020 Pro Tool Innovation Award Winner for Forming Nailers
- APPLICATIONS: Ideal for building concrete forms and temporary wood structures like scaffolding with easy nail removal
- DUPLEX / DOUBLE HEADED FASTENERS: (16D / 8D / 6D) Easy & quick removal of temporary wood structures
- DRIVES: Up to 900 nails per charge with the included 2.5Ah MultiVolt battery (371751M)
- AWARD: Rated the Pro Preferred Nailer for 9 years running (2014 - 2022) by Builder and Developer Magazine
- AIR SPRING DRIVE SYSTEM: Delivers similar feel to a pneumatic nailer
- SELECTIVE ACTUATION: Allows for quick changes between sequential and contact nailing with the flip of a switch
- DRY-FIRE LOCKOUT: Dry-fire lockout prevents empty (dry) firing for assured nail placement

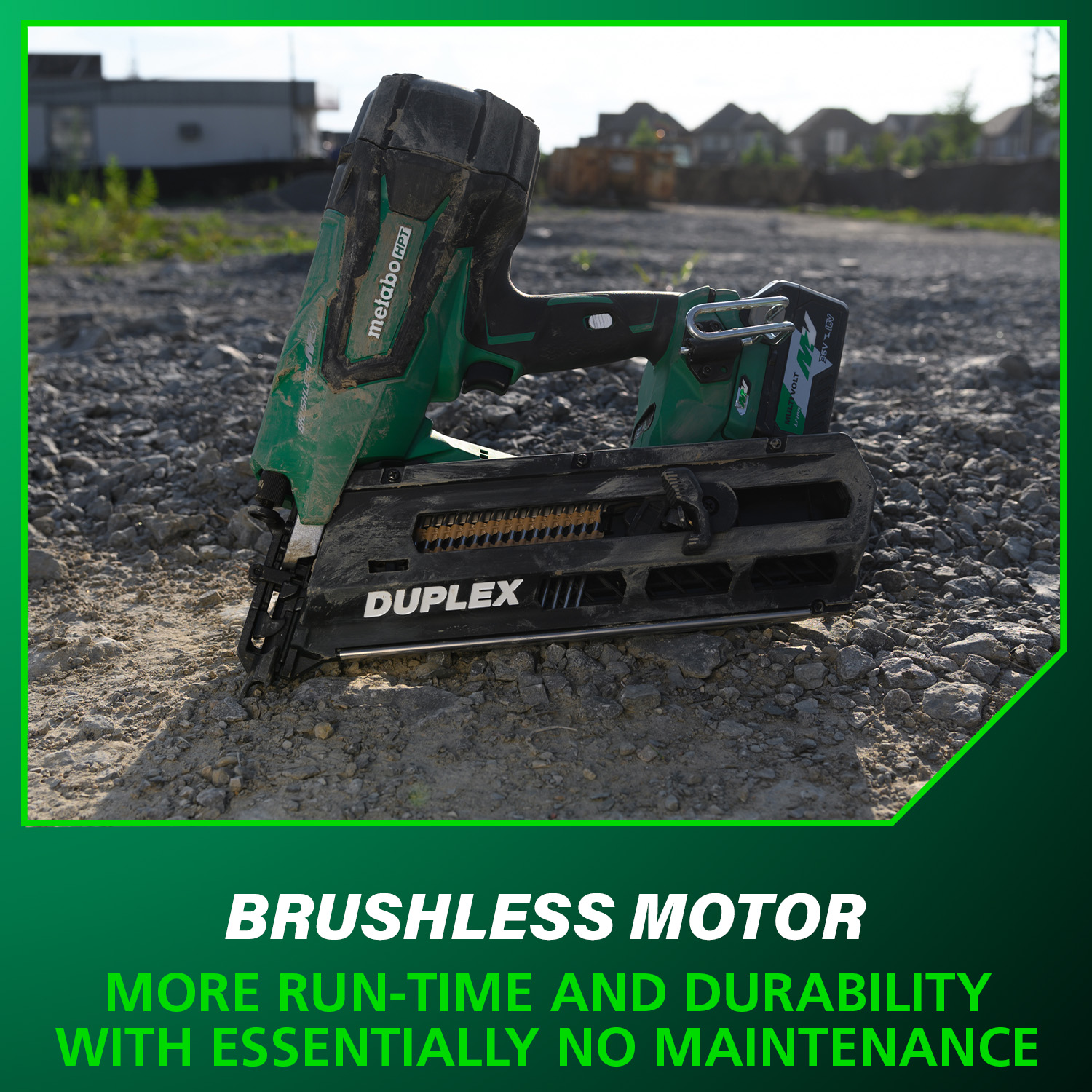

- BRUSHLESS MOTOR: More run-time, increased power, and extended durability with essentially no maintenance
- DEPTH ADJUSTMENT: Tool-less adjustable depth of drive
- SIDE LOCK SWITCH: Prevent accidental firing for assured nail placement

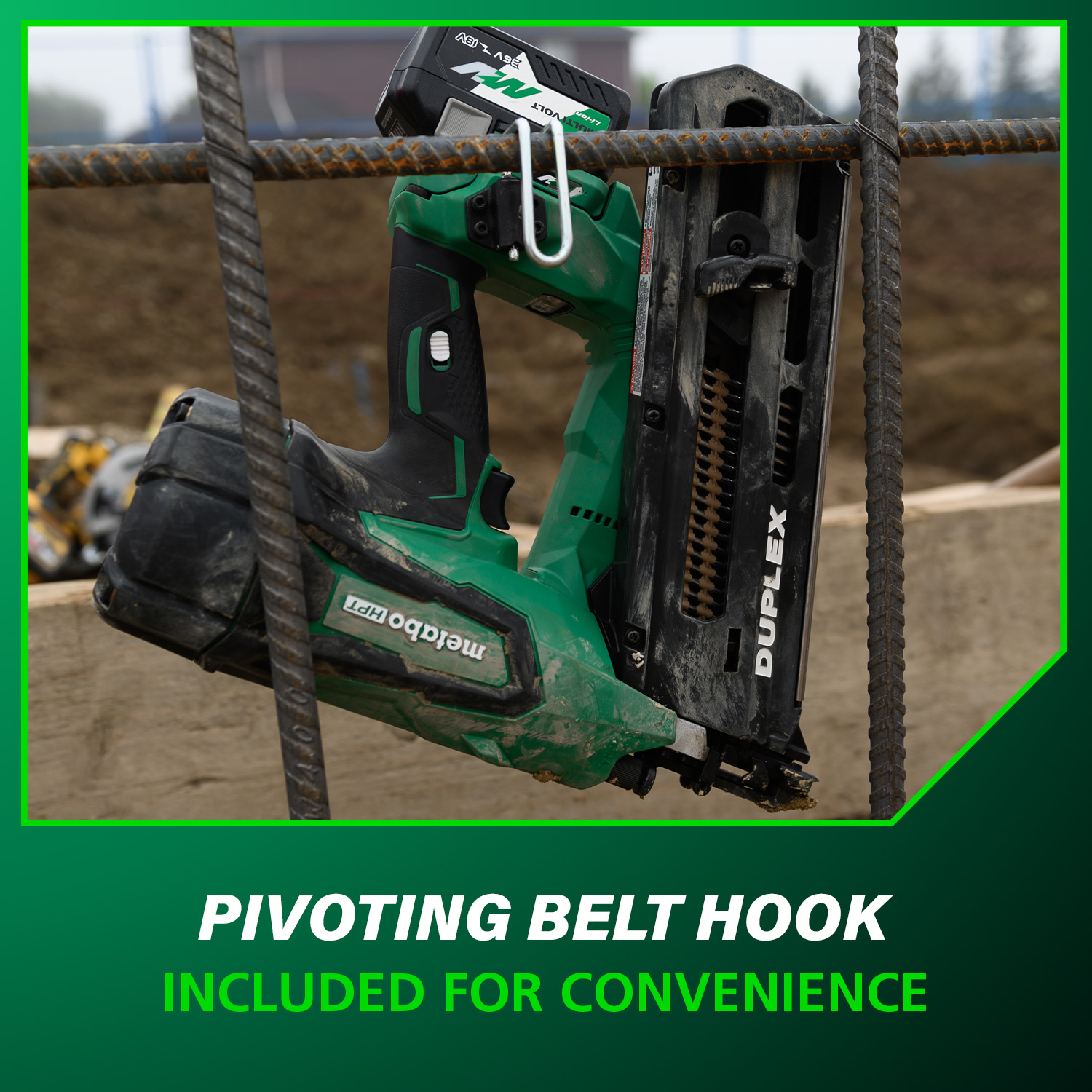

- PIVOTING BELT HOOK: Included for convenience

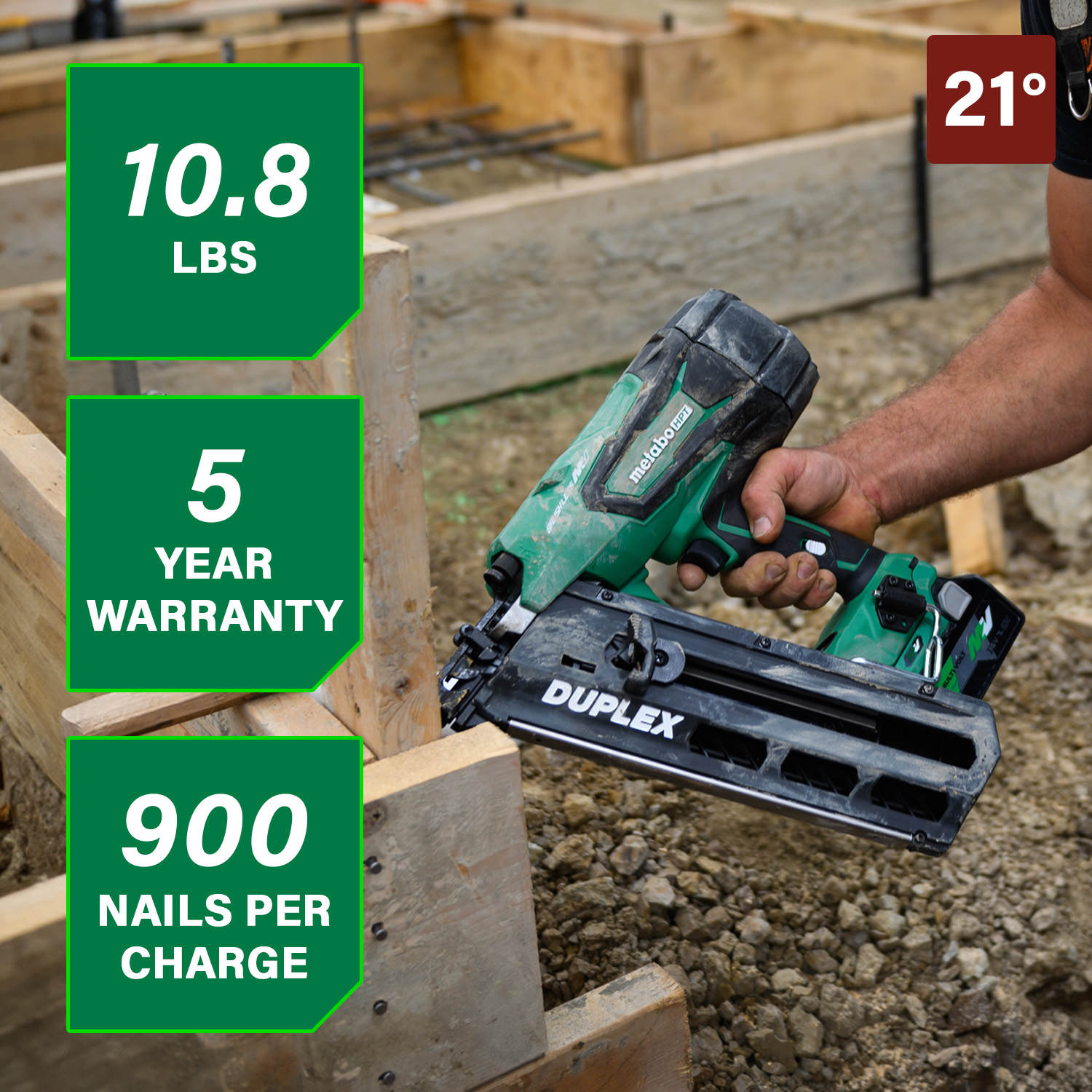

- LIGHTWEIGHT: At only 10.8 lbs and well-balanced allowing for ease of maneuverability and less user fatigue
- ACCEPTS: MultiVolt AC Adapter with cord - model ET36A (sold separately) for the option to plug in for ultimate versatility
- ACCEPTS: MultiVolt 36V 4.0Ah battery - model 372121M (sold separately) for up to 1,200 nails on a single charge
- RECOMMENDED: Use Metabo HPT Duplex Nails for best results
- WARRANTY: Lifetime Lithium Ion Tool Body Warranty
- TOOL CARD: Download the NR3675DD Tool Card
Duplex/Double Headed Fasteners available from Metabo HPT:
- 6D: 2-1/4” x .131 (50214-6D)
- 8D: 2-3/4” x .131 (50234-8D)
- 16D: 3-1/2” x .131 (50312-16D)
- Download Duplex Fastener information here
Included with the Forming Nailer:
- 36V MultiVolt™ 2.5Ah battery (371751M / BSL36A18)
- 36V/18V Charger (UC18YFSL)
- Carrying Bag (372294M)
- 3mm Hex Wrench (943277)
- 4mm Hex Wrench (944458)
- Safety Glasses (875769)
Specifications
| Fastener Head Type | Duplex/Double Headed | ||||
| Applicable Nails | Diameter | .113" - .131" | |||
| Length | 2" - 3-1/2" | ||||
| Driving Depth | 16D - 3" | ||||
| 8D - 2-1/4" | |||||
| 6D - 1-3/4" | |||||
| Nail Capacity | 37 | ||||
| Nails Per Charge (w/ 36V 2.5Ah Battery) | 900 | ||||
| Magazine Angle | 21° | ||||
| Driving Speed | 2 nails per second | ||||
| Magazine Loading | Rear | ||||
| Actuation | Selective | ||||
| Dry-fire Lockout | Yes | ||||
| Depth Adjustment | Tool-less | ||||
| Jam Clearing | Open Nose | ||||
| Battery Charge Indicator | On-Battery | ||||
| Dimensions | L x H x W | 13-1/2" x 13" x 5-3/8" | |||
| Weight (w/ 36V 2.5Ah Battery) | 10.8 lbs | ||||
| Warranty | Lifetime Lithium Ion Tool Body, 2-Year Battery Warranty, 1-Year Charger Warranty | ||||

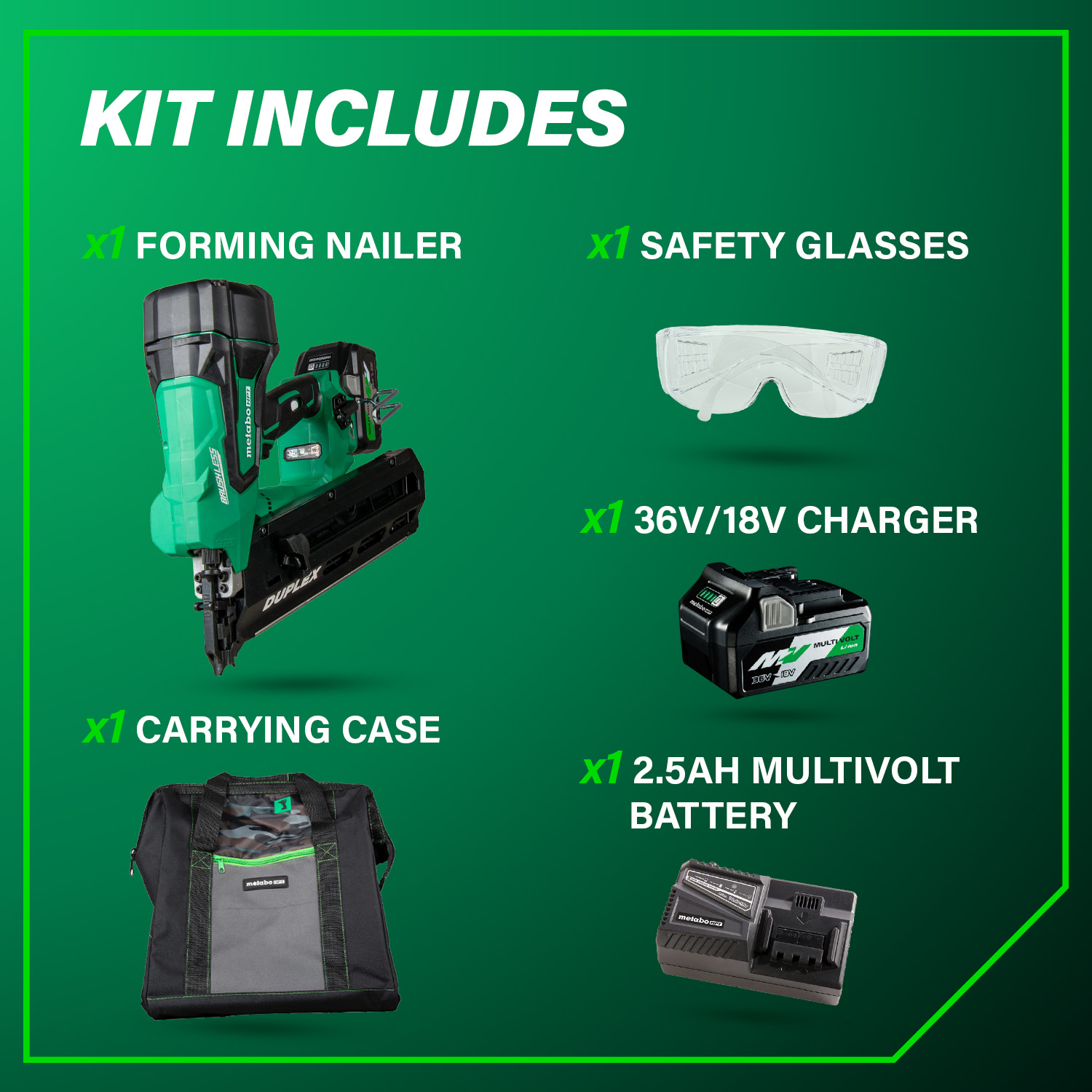

Includes
- Cordless Forming Nailer (NR3675DD)
- 36V MultiVolt™ 2.5Ah battery (371751M / BSL36A18)
- 36V/18V Charger (UC18YFSL)
- Carrying Bag (372294M)
- 3mm Hex Wrench (943277)
- 4mm Hex Wrench (944458)
- Safety Glasses (875769)
