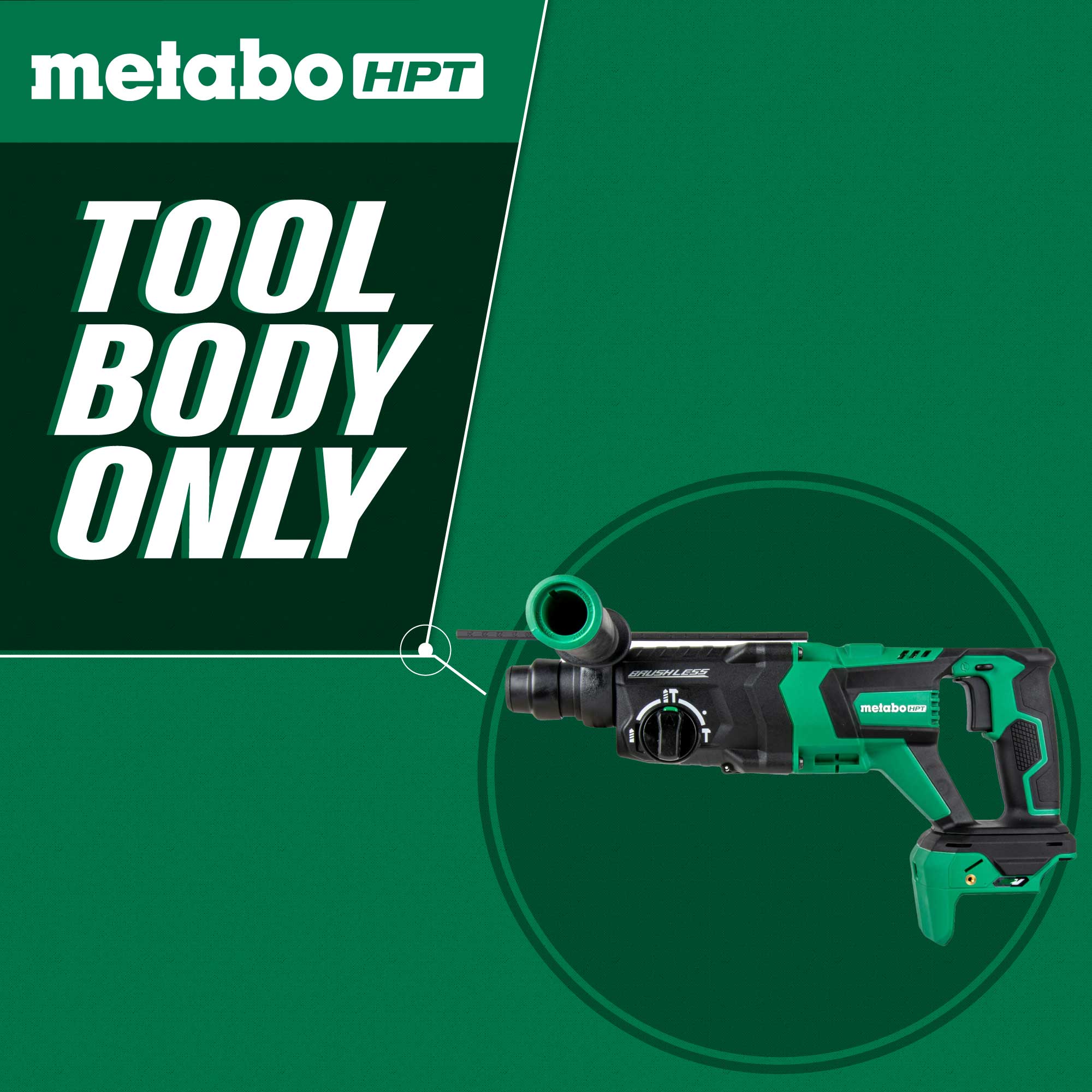

36V MultiVolt™ Brushless 1-1/8" SDS Plus D-Handle Rotary Hammer (Tool Body Only)| Metabo HPT DH3628DDQ4
Model# DH3628DDQ4
- TOOL BODY ONLY: Accepts any 18V/36V MultiVolt battery or AC Adapter (sold separately)
- POWER: High impact energy of 2.3 ft-lbs & 950 RPM / 4,300 BPM for high drilling speeds and great demolition performance
- AUTO STOP: Set your time for repetitive drilling
- ERGONOMIC: D-Handle makes drilling easier especially for overhead and downward drilling
- BIT MOUNTING: One-push bit mounting makes changing out bits quick and easy
- TOOL BODY ONLY: Accepts any 18V/36V MultiVolt battery or AC Adapter (sold separately)
- POWER: High impact energy of 2.3 ft-lbs & 950 RPM / 4,300 BPM for high drilling speeds and great demolition performance
- AUTO STOP: Set your time for repetitive drilling
- ERGONOMIC: D-Handle makes drilling easier especially for overhead and downward drilling
- BIT MOUNTING: One-push bit mounting makes changing out bits quick and easy
Features
AUTO STOP
Set your time for repetitive drilling
POWER
High impact energy of 2.3 ft-lbs and 950 RPM / 4,300 BPM for high drilling speeds and great demolition performance
VERSATILITY
Powered by a 36V MultiVolt battery (included) or AC adapter (sold separately)
ERGONOMIC
D - Handle makes drilling easier especially for overhead and downward drilling
The 36V MultiVolt Brushless SDS Plus 1-1/8" Rotary Hammer (DH3628DDQ4) offers corded performance with the convenience and versatility of a cordless tool. GO all day as its D-Handle ergonomic design makes drilling easier, especially for overhead and downward drilling. Work more efficiently with the auto stop feature that allows you to set times for repetitive drilling. Control you power with its two-speed setting function. Work safely as the Reactive Force Control (RFC) stops the motor before the entire tool jerks if the tool bit is suddenly overburdened during operation. Work cleaner and safer with the optional dust extractor (# 376971M).
The DH3628DDQ4 36V Brushless SDS Plus 1-1/8" D-Handle Rotary Hammer is part of the expanding MultiVolt System of power tools from Metabo HPT. It accepts any MultiVolt battery (sold separately) for extreme power and runtime and can also accept the unique AC Adapter - model ET36A (sold separately) to plug in for all day runtime, offering ultimate versatility and power on the GO. Also available kitted with MultiVolt battery and charger - model DH3628DD.
The DH3628DDQ4 36V Brushless SDS Plus 1-1/8" D-Handle Rotary Hammer is part of the expanding MultiVolt System of power tools from Metabo HPT. It accepts any MultiVolt battery (sold separately) for extreme power and runtime and can also accept the unique AC Adapter - model ET36A (sold separately) to plug in for all day runtime, offering ultimate versatility and power on the GO. Also available kitted with MultiVolt battery and charger - model DH3628DD.
Features of the 36V MultiVolt Brushless SDS Plus 1-1/8" D-Handle Rotary Hammer
- TOOL BODY ONLY: Accepts any 18V/36V MultiVolt battery or AC Adapter (sold separately)
- POWER: High impact energy of 2.3 ft-lbs & 950 RPM / 4,300 BPM for high drilling speeds and great demolition performance
- AUTO STOP: Set your time for repetitive drilling
- ERGONOMIC: D-Handle makes drilling easier especially for overhead and downward drilling
- BIT MOUNTING: One-push bit mounting makes changing out bits quick and easy
- ON-TOOL LED: Provides plenty of light in dark spaces
- BRUSHLESS MOTOR TECHNOLOGY: For more run-time, increased power, extended durability with essentially no maintenance
- 2-STEP SPEED CONTROL: For faster work
- REACTIVE FORCE CONTROL: Senses the tool overload and stops rotation to ensure user safety and protect the tool motor and battery
- 3 MODE SELECTOR: Hammer Drilling, Chipping and Drilling
- DUST EXTRACTOR SYSTEM: Featuring cyclonic separation method and HEPA filter for improved workability
- CLEANER AND SAFER ENVIRONMENT: Compatible with dust extractor attachment (376971) or Vacuums/Extractors (RP350DYH and RP3608DAQ4)
- DEPTH GAUGE: Consistently drill to desired depth
- BRUSHLESS MOTOR TECHNOLOGY: For more run-time, increased power, extended durability with essentially no maintenance
- LIGHTWEIGHT AND COMPACT: 8.8 LBS (with BSL36B18 / 372121M), 15.8"
- INCLUDES: Side handle, depth gauge, carry case
- ALSO AVAILABLE: Kitted version with 18V/36V MultiVolt Lithium Ion Slide Battery 4.0Ah/8.0Ah (372121M) and Rapid Charger (UC18YSL3) DH3628DD
- TOOL CARD: Download the DH3628DDQ4 Tool Card
- Side Handle (335273)
- Depth Gauge (303709)
- Carrying Case (378656)
Specifications
| Volts | 36V |
| Bit Shank | SDS Plus |
| Motor Type | Brushless |
| Power Source | DC |
| Models | Hammer Drilling | Chipping | Drilling |
| No Load Speed | 0-950 RPM |
| Impact Rate | 0-4,300 RPM |
| Impact Energy | 2.3 Ft-lbs |
| Concrete Capacity | 1-1/8" |
| Steel Capacity | 1/2" |
| Wood Capacity | 1-1/4" |
| Variable Speed | Trigger |
| LED Light | Equipped |
| Auto Stop Mode | Equipped |
| Speed Control | 2 |
| Tool Length (w/ 36V 4.0Ah Battery) | 17-9/32" |
| Tool Width | 3.3" |
| Tool Height | 9.1"" |
| Weight (Tool Body Only) | 6.4 lbs |
| Warranty | 1-Year |
Includes
- Side Handle (335273)
- Depth Gauge (303709)
- Carrying Case (378656)
