Model# NR83A5

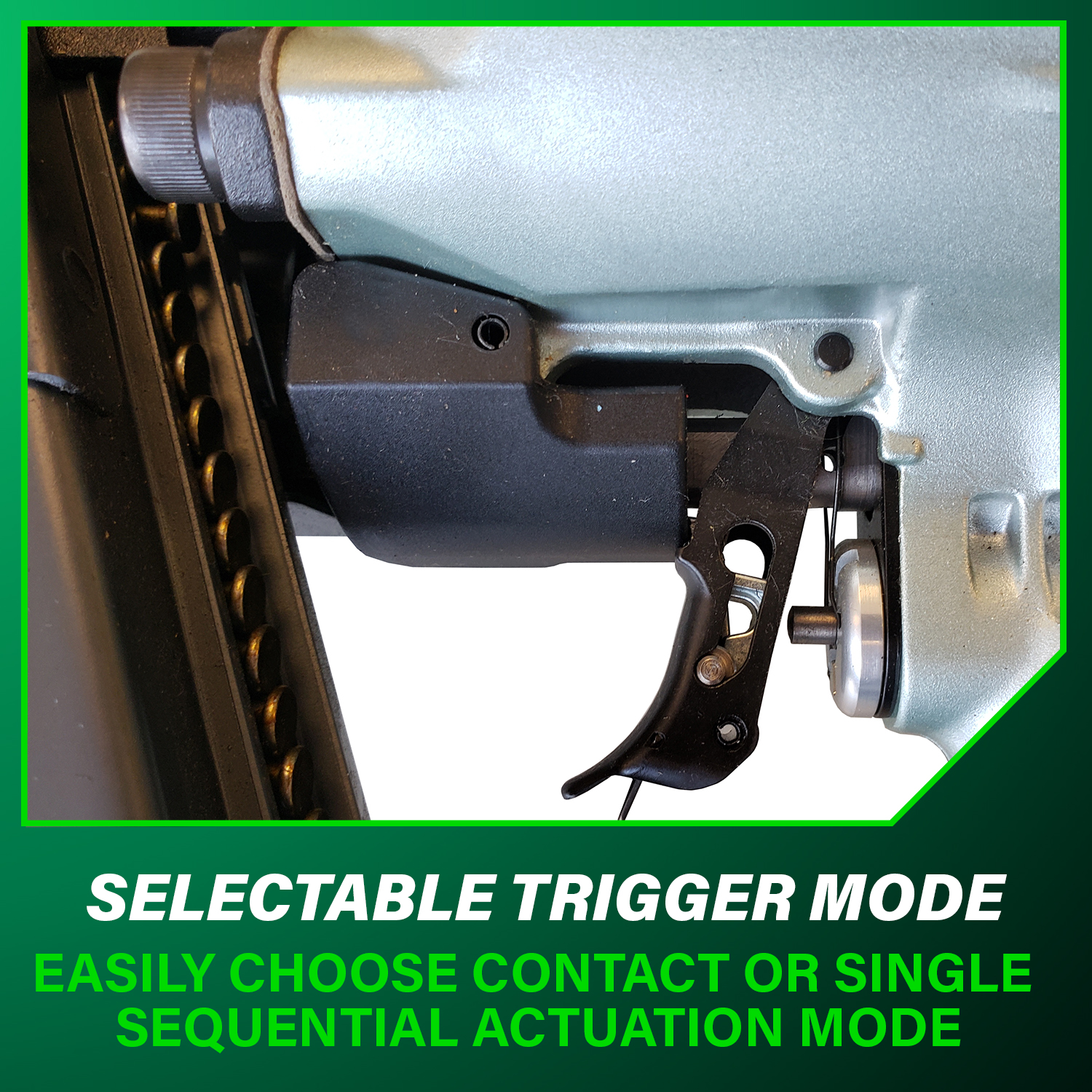

Quickly switch between sequential and bump nailing with the simple flip of a switch

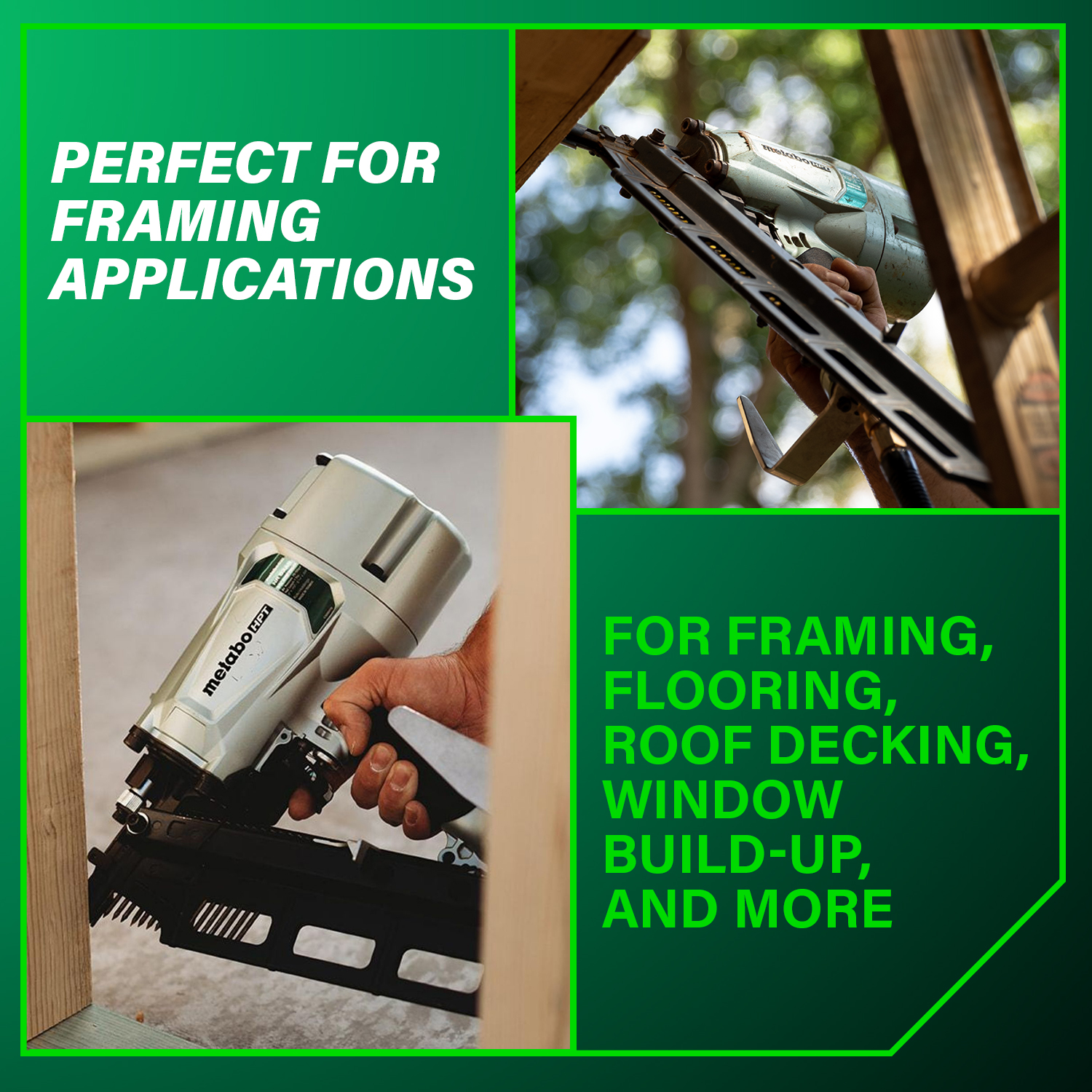

For framing, flooring, roof decking, window build-up, and more
Product Brand Surveys in Builder & Developer Magazine for 9 years running (2014 - 2022)
Covered by Metabo HPT's professional 5-year Warranty

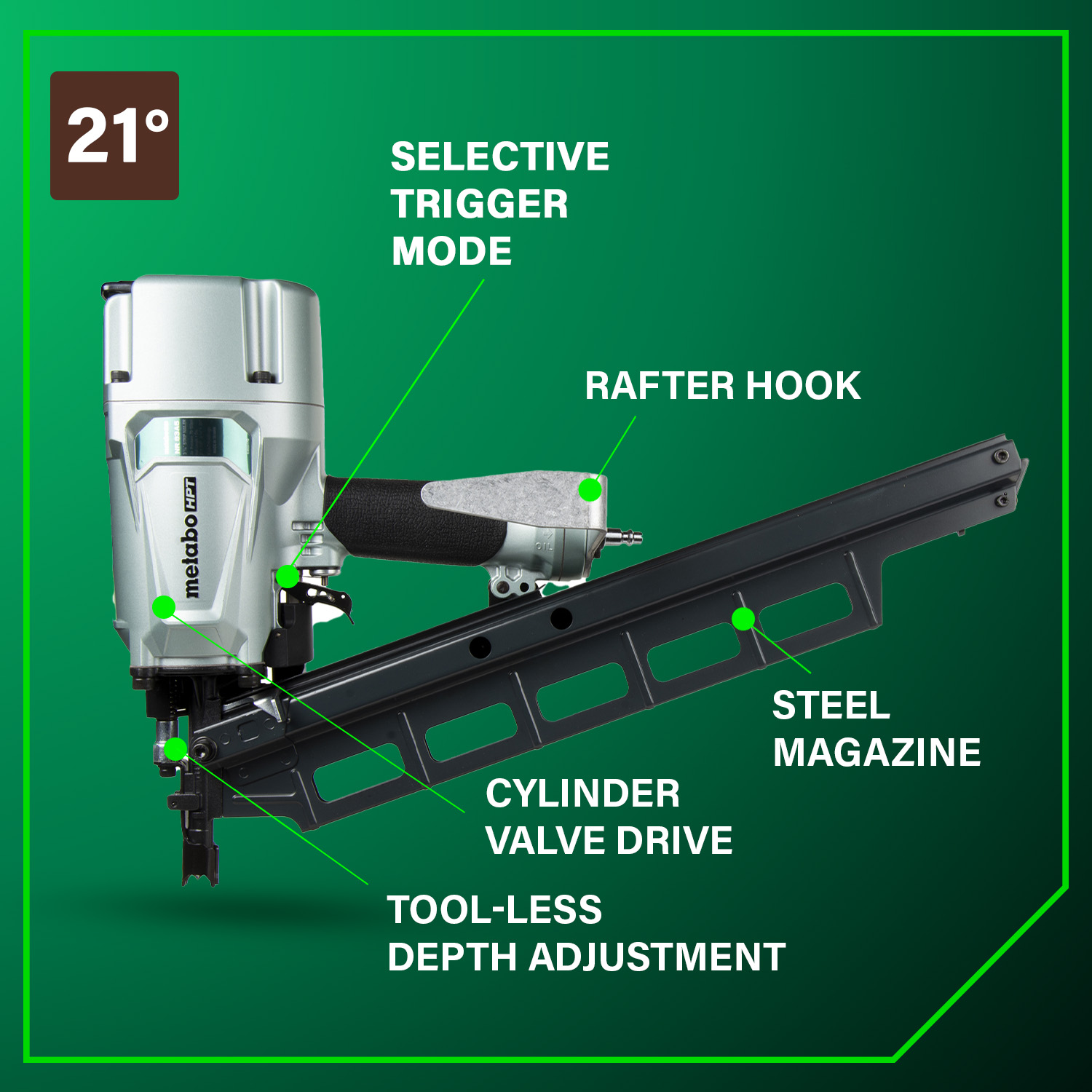

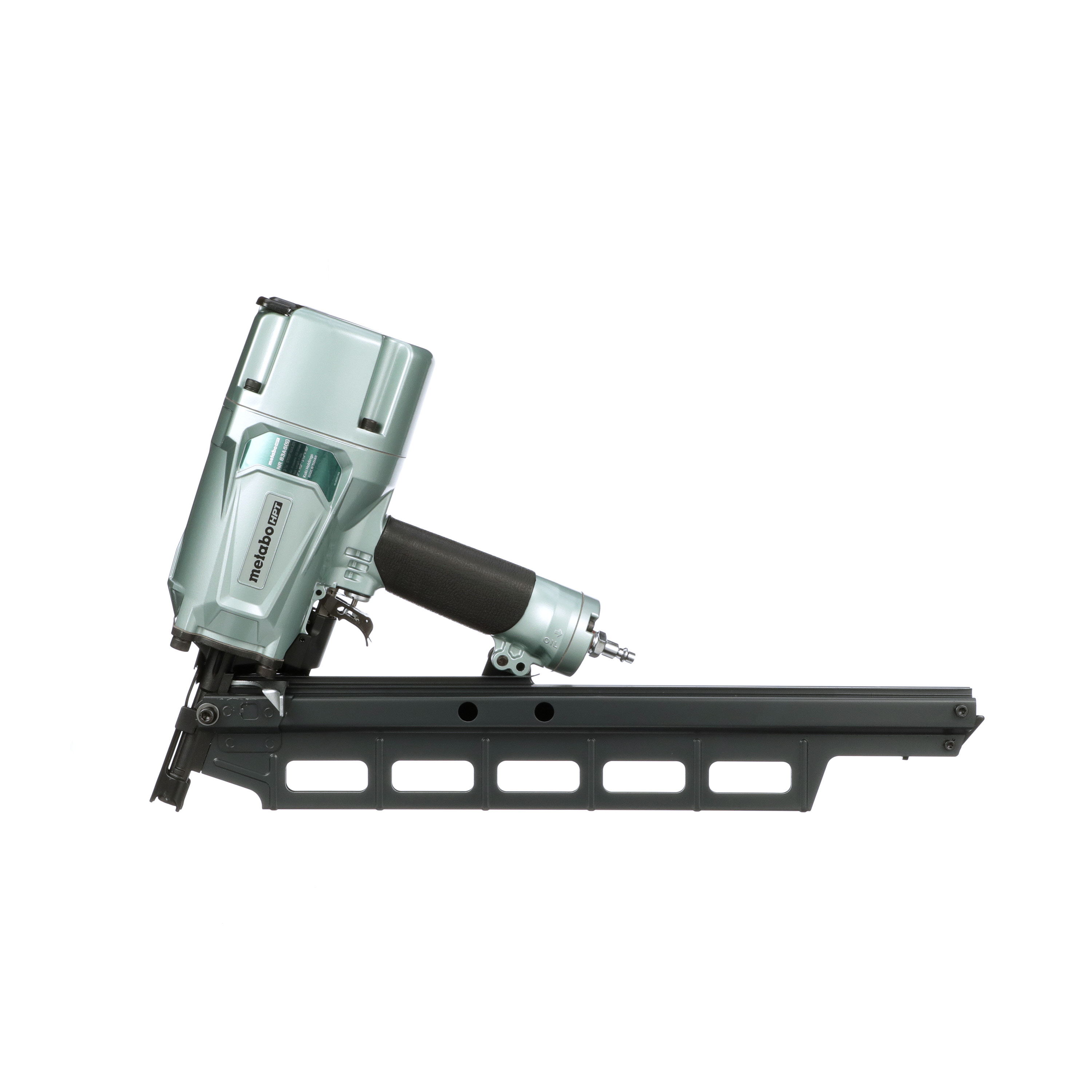

The 3-1/4 Inch Plastic Collated Framing Nailer (NR83A5) has the same legendary durability and reliability you have come to trust with Metabo HPT, but now with an improved trigger design and sharing all the same motor parts as the original NR83A. With the power to drive 2 In. – 3-1/4 In. nails into even the toughest materials there is no job this tool can’t handle. With the selective actuation now on the trigger we not only reduced the total number of parts in the trigger but also eliminated all composite parts.
The Full Round Head Framing Nailer with Depth Adjustment is used for floor and wall framing, truss build-up, window build-up, construction of subflooring and roof decking. It is also great for wall sheathing in mobile homes and modular home construction. If depth adjustment is not necessary, see the NR83A5(S).
Fastener Type | Full Round Head, Plastic Strip Collation | |
Magazine Angle | 21 Degree | |
Magazine Material | Steel | |

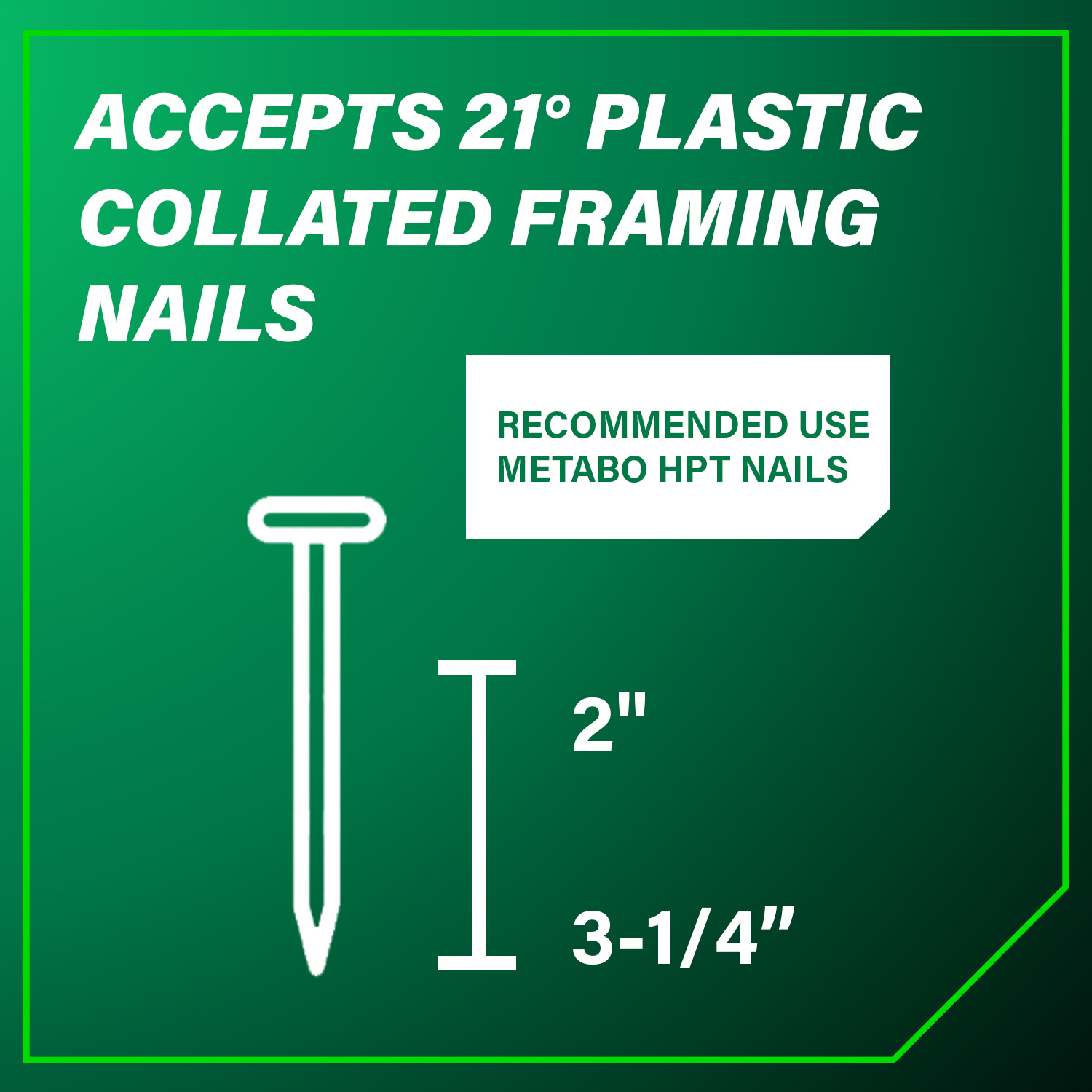

Fastener Length Capacity | 2" - 3-1/4" | |
Fastener Diameter Range | .113 to .131 | |
Magazine Capacity | 64 | |

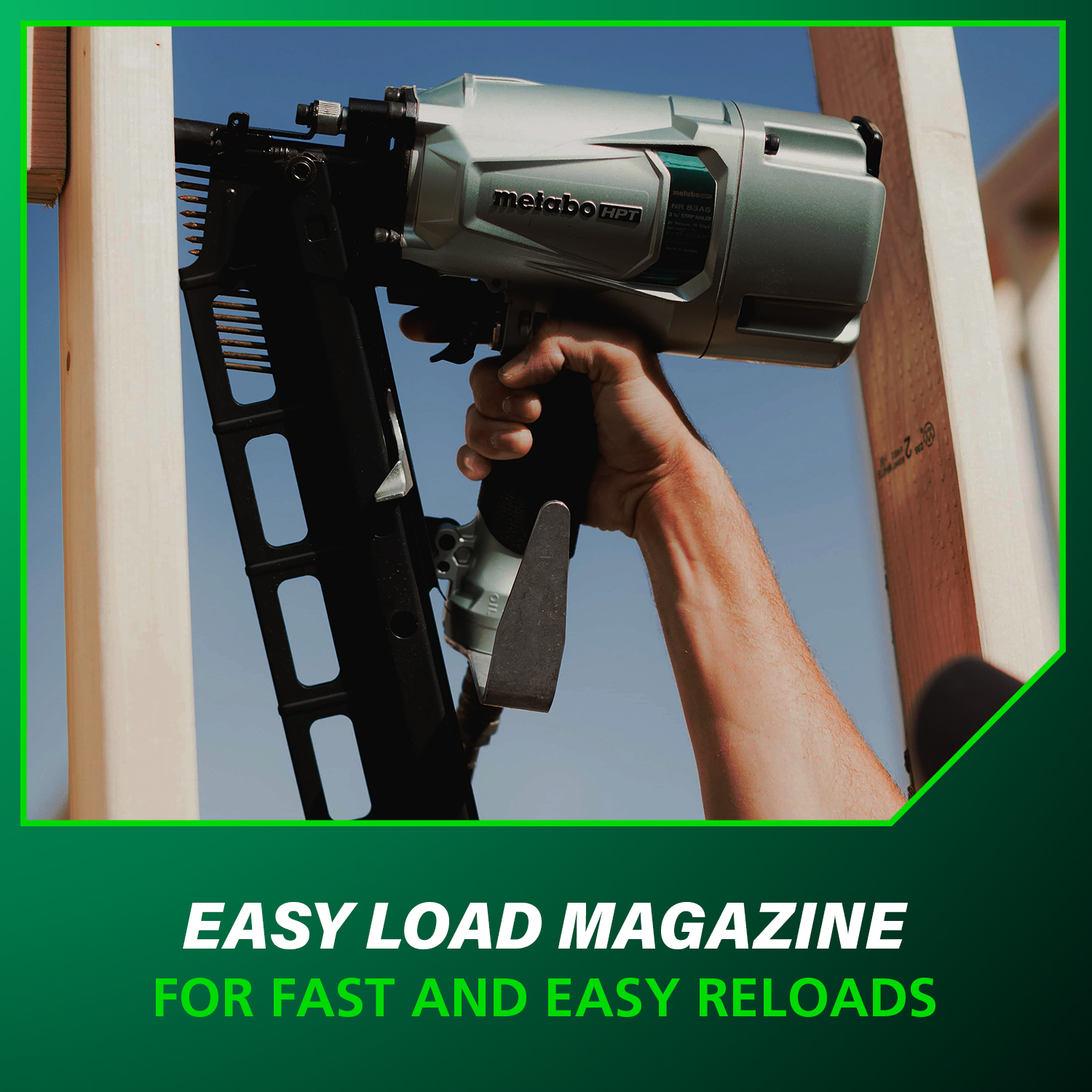

Magazine Loading | Top | |
Fitting | 1/4" Industrial | |

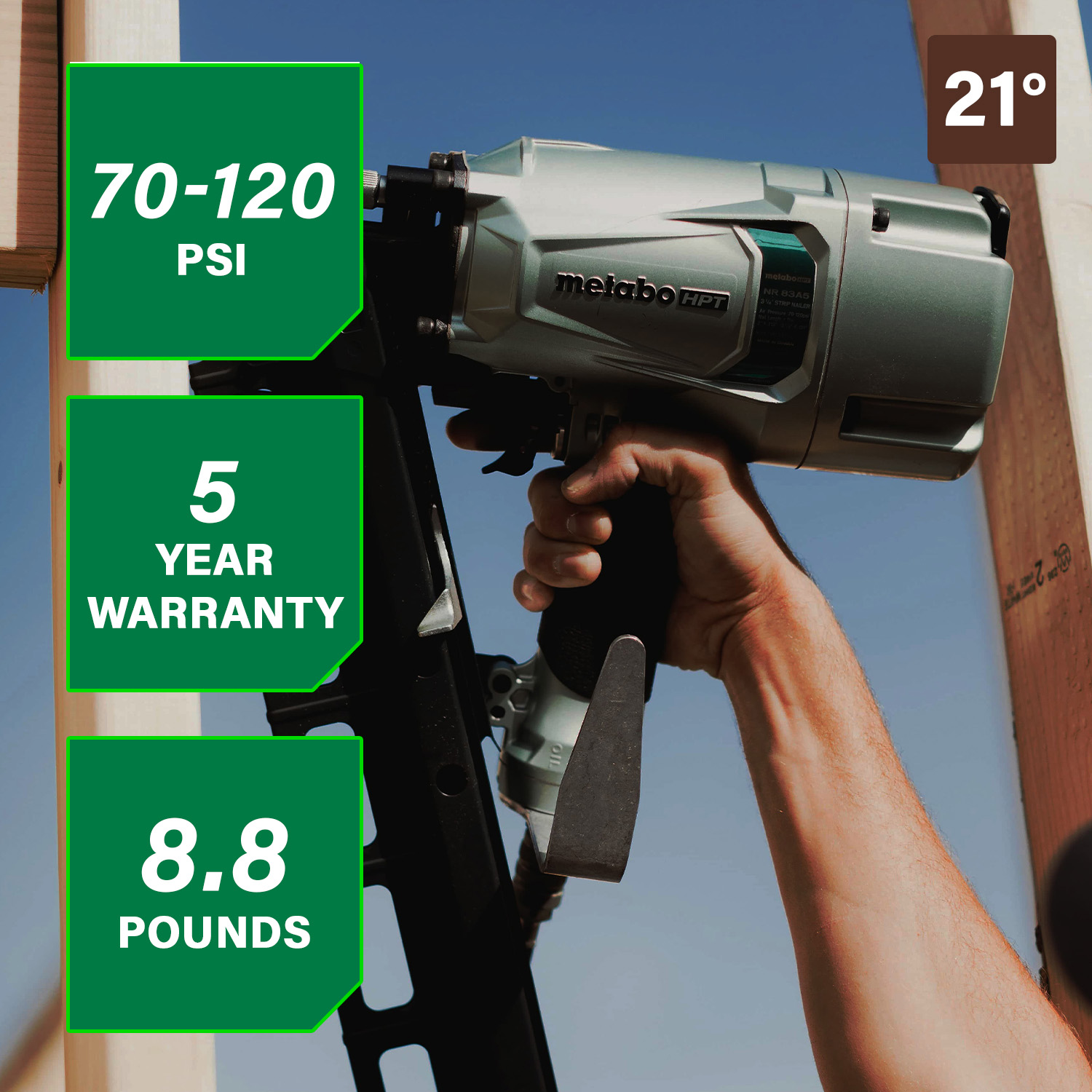

Operating Pressure | 70-120psi | |
Jam Clearing | Open Nose | |

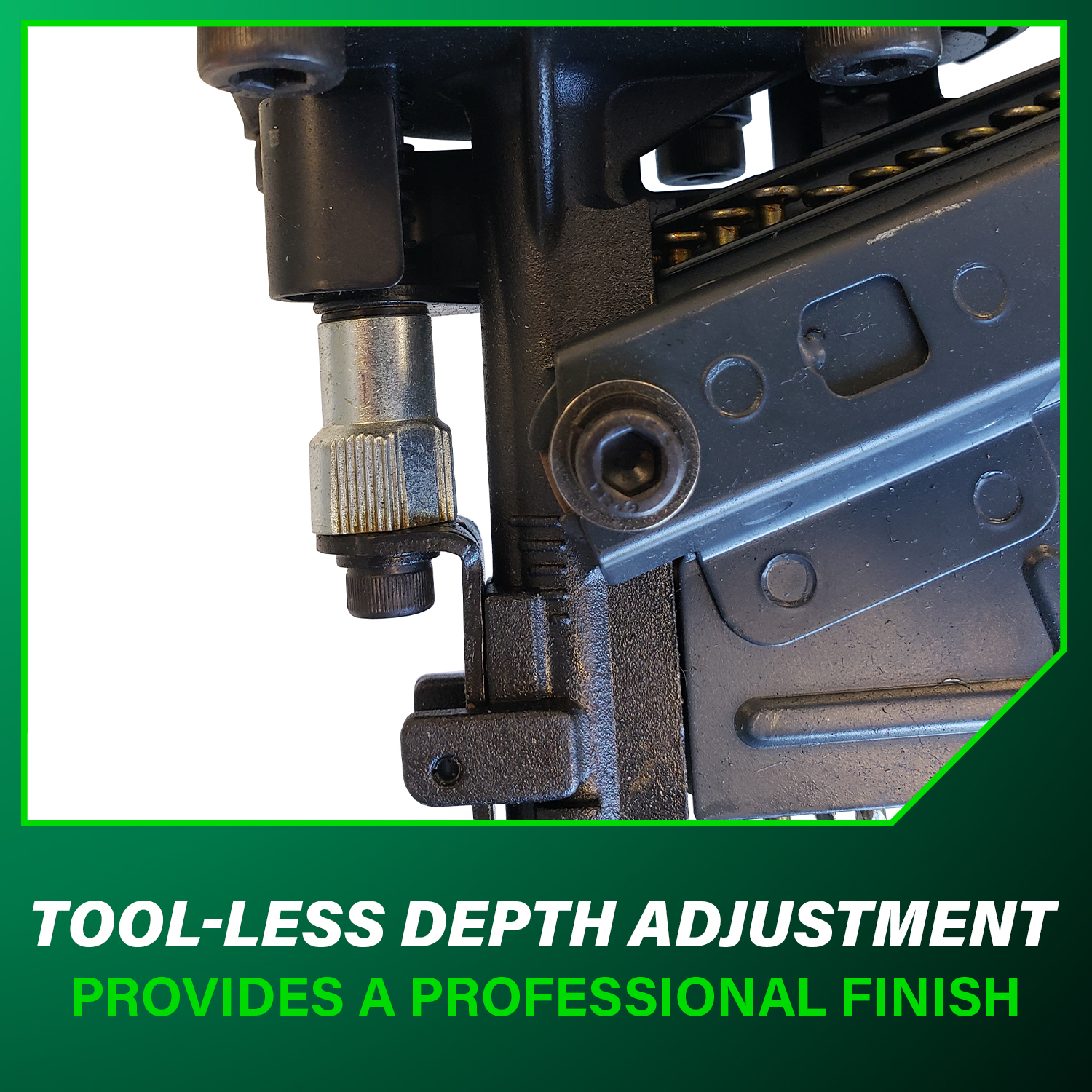

Depth Setting | Tool-Less | |
Actuation | Selective (Sequential/Contact) | |
L x W x H | 21-13/16" x 4-1/4" x 13-3/8" | |
Weight w/o Hook | 8.8 lbs | |
Weight w/ Hook | 9.1 lbs |
