21 Degree 3-1/2 Inch Plastic Collated Framing Nailer | Metabo HPT NR90AC5

Model# NR90AC5

  • AWARD: Rated the Pro Preferred Nailer for 9 years running (2014 - 2022) by Builder and Developer Magazine
  • FASTENERS: Powerful Framing nailer designed to drive plastic collated nails up to 3-1/2 In. x 0.162
  • DEPTH ADJUSTMENT: Tool-less adjustable depth of drive
  • WARRANTY: Covered by Metabo HPT's Professional 5-Year Tool Warranty

Features

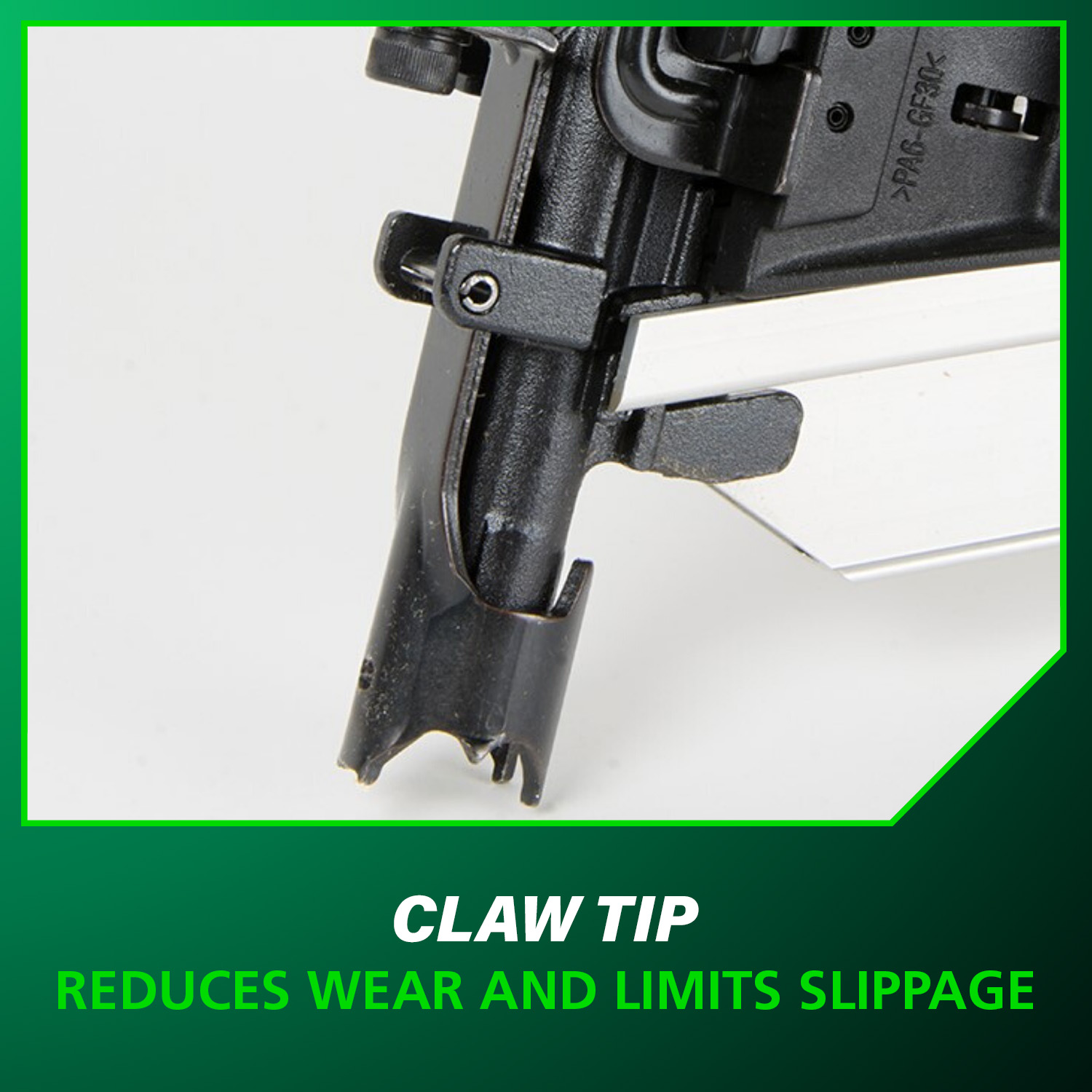

CLAW TIP

Hardened claw tip reduces wear and limits slippage when driving at a slanted angle

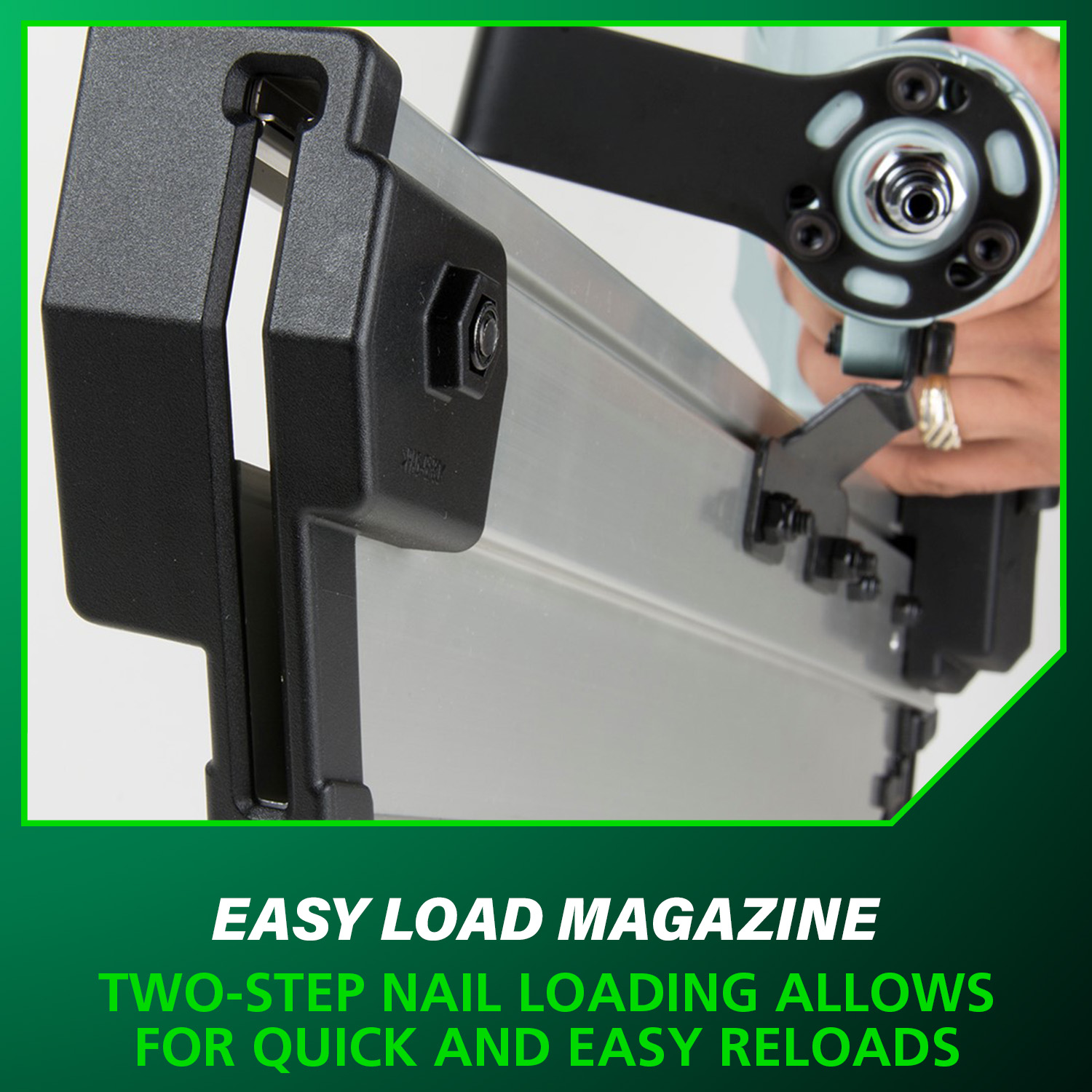

EASY LOAD MAGAZINE

Two-step nail loading allows for quick and easy reloads

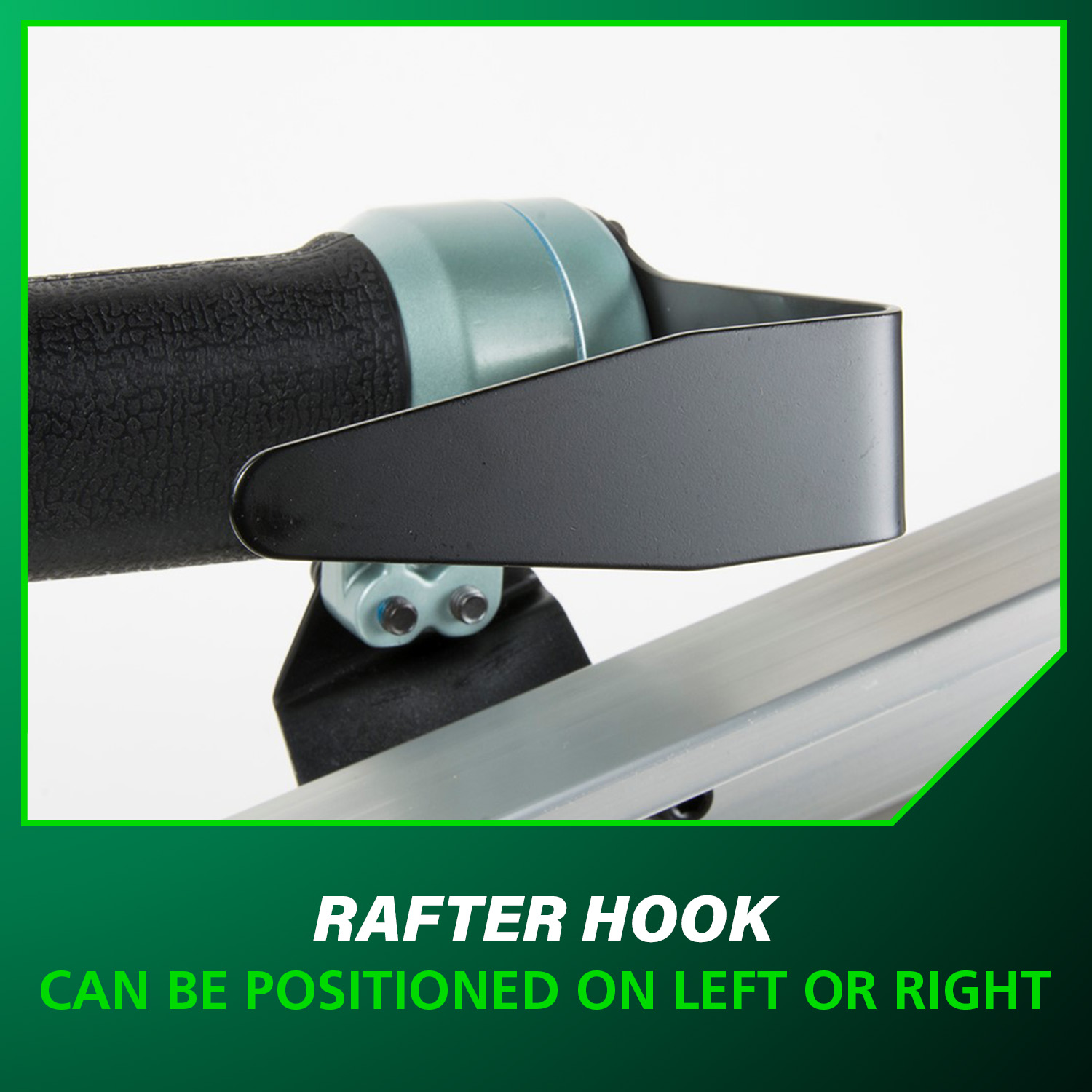

RAFTER HOOK

Included for convenience and makes it easy to maneuver with less user fatigue

WARRANTY

Covered by Metabo HPT's professional 5-year Warranty

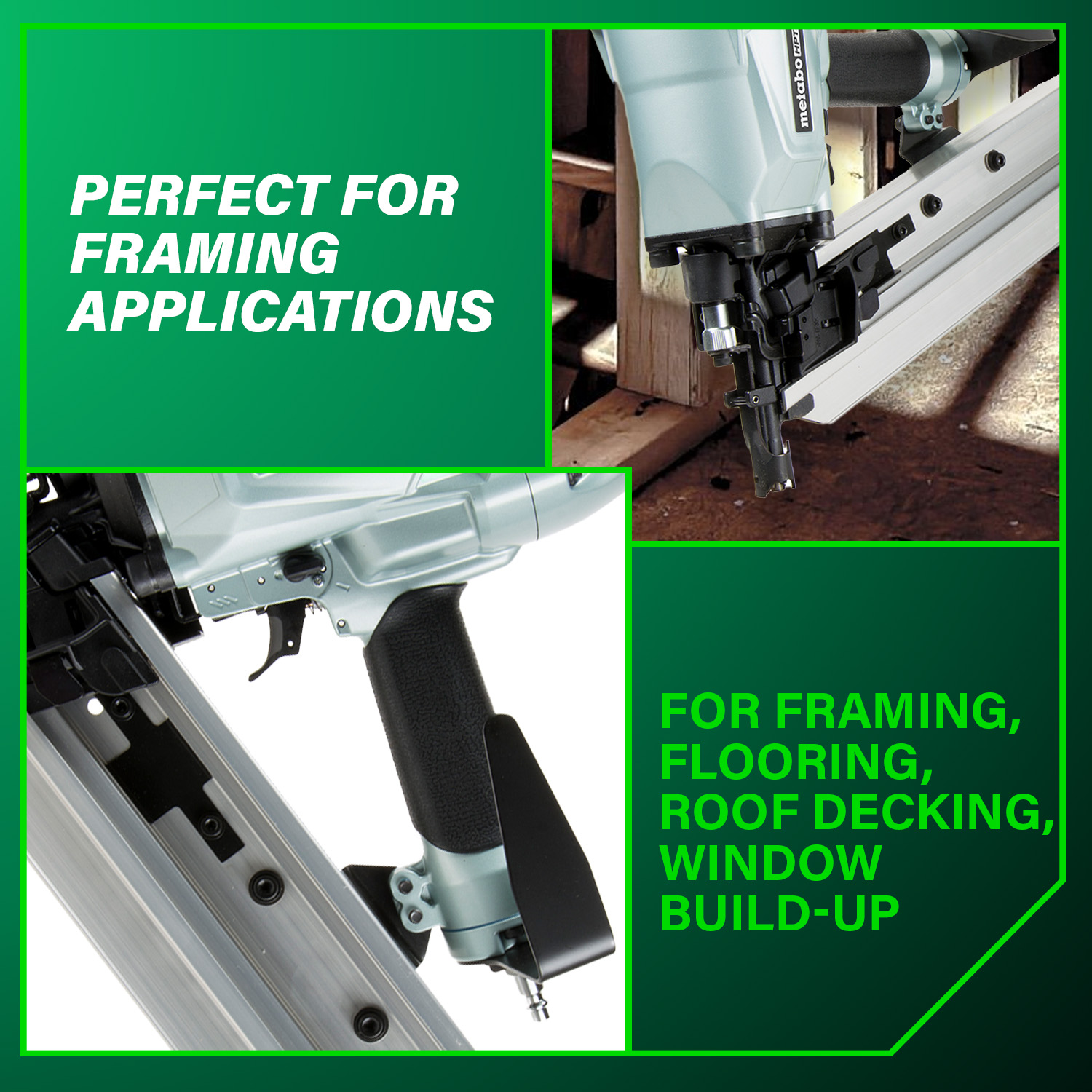

The 3-1/2" Plastic Collated Framing Nailer (NR90AC5) is capable of driving 3-1/2" x 0.162" plastic collated nails into LVL and many other engineered lumber products. The well-balanced design makes it easy to maneuver with less user fatigue. It's tool-less depth of drive adjustment ensures proper driving depth- no matter the material. Switching between sequential and contact (bump) driving modes is easily achieved with the simple flip of a switch. The NR90AC5 has a two piece anodized aluminum magazine that features a simple two step nail loading process for quick and easy fastener replenishment.

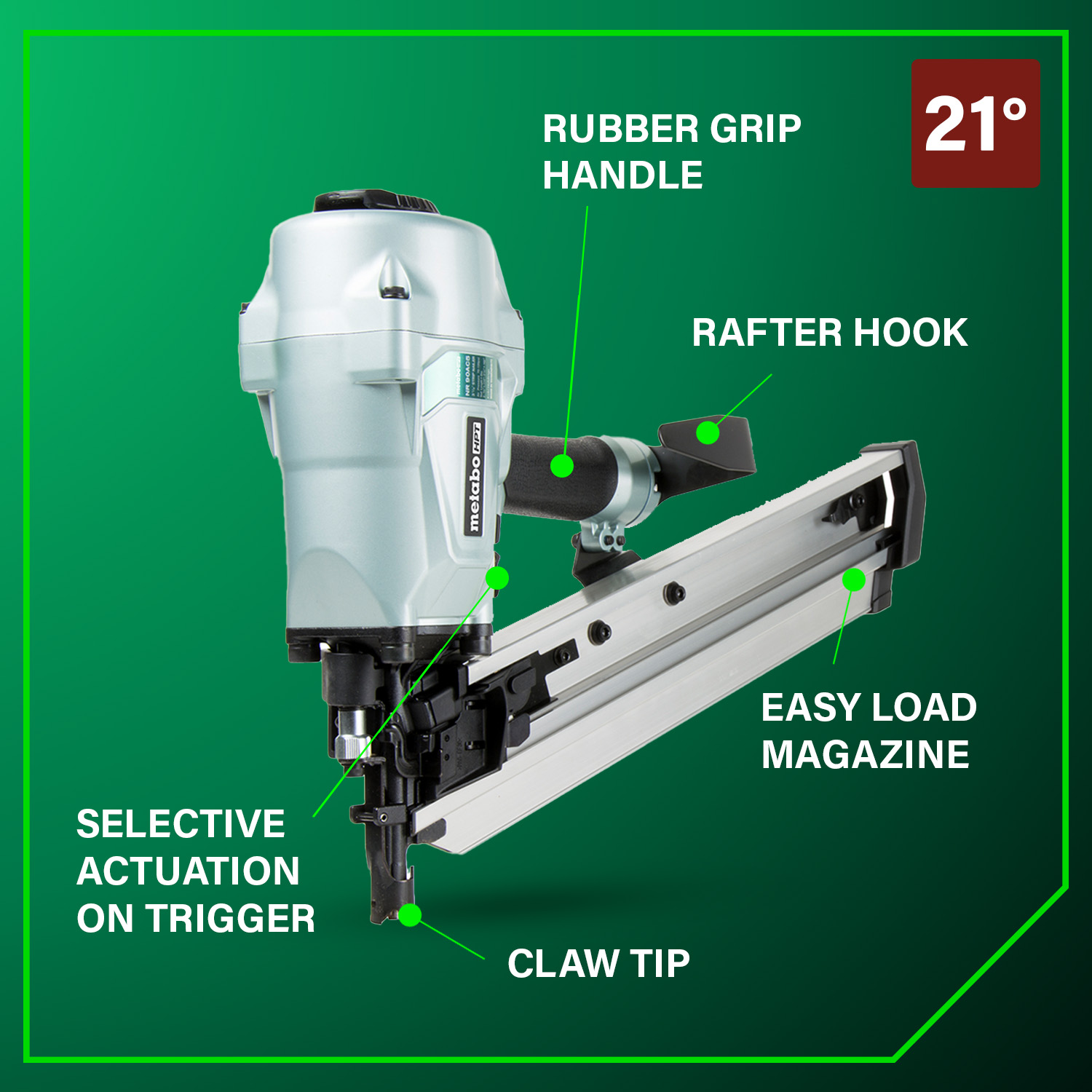

Features of the Plastic Collated Framing Nailer
  • AWARD: Rated the Pro Preferred Nailer for 9 years running (2014 - 2022) by Builder and Developer Magazine
  • FASTENERS: Powerful Framing nailer designed to drive plastic collated nails up to 3-1/2 In. x 0.162
  • DEPTH ADJUSTMENT: Tool-less adjustable depth of drive
  • TRIGGER: Allows for quick changes between sequential and contact nailing with the flip of a switch

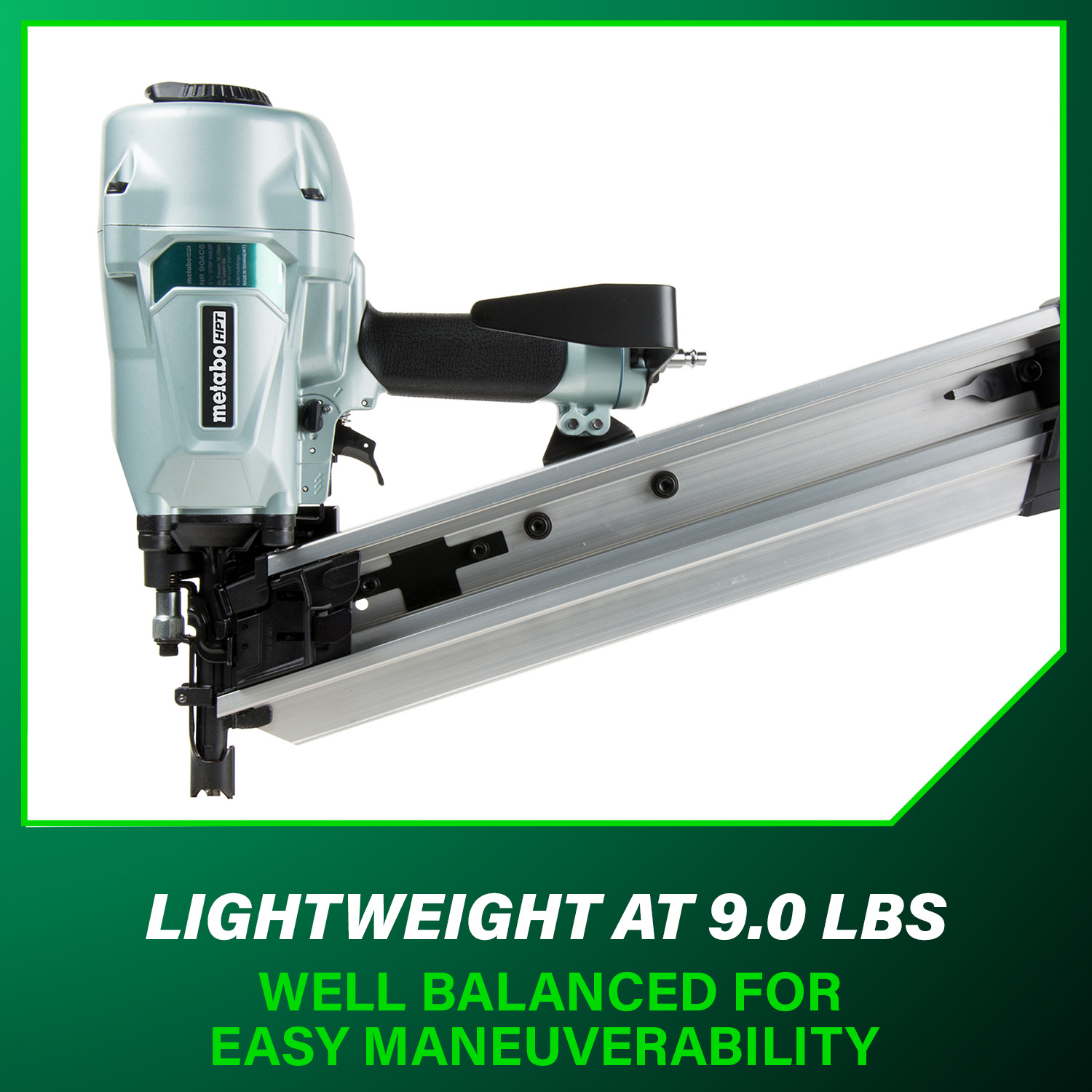

  • WELL-BALANCED: Designed for ease of maneuverability and less user fatigue
  • CLAW TIP: Hardened claw tip reduces wear and limits slippage when driving at a slanted angle
  • AIR DEFLECTOR: Adjustable exhaust deflector
  • GRIP: Long-lasting rubber grip for added comfort
  • RAFTER HOOK: Included for convenience
  • EASY LOAD MAGAZINE: Two-step nail loading allows for quick and easy reloads
  • DRY-FIRE LOCKOUT: Dry-fire lockout prevents empty (dry) firing for assured nail placement
  • RECOMMENDED: Use Metabo HPT Nails for best results
  • WARRANTY: Covered by Metabo HPT's Professional 5-Year Tool Warranty
  • COMPLIANT: Safety standards for pneumatic nailers in the United States
  • TOOL CARD: Download the NR90AC5 Tool Card

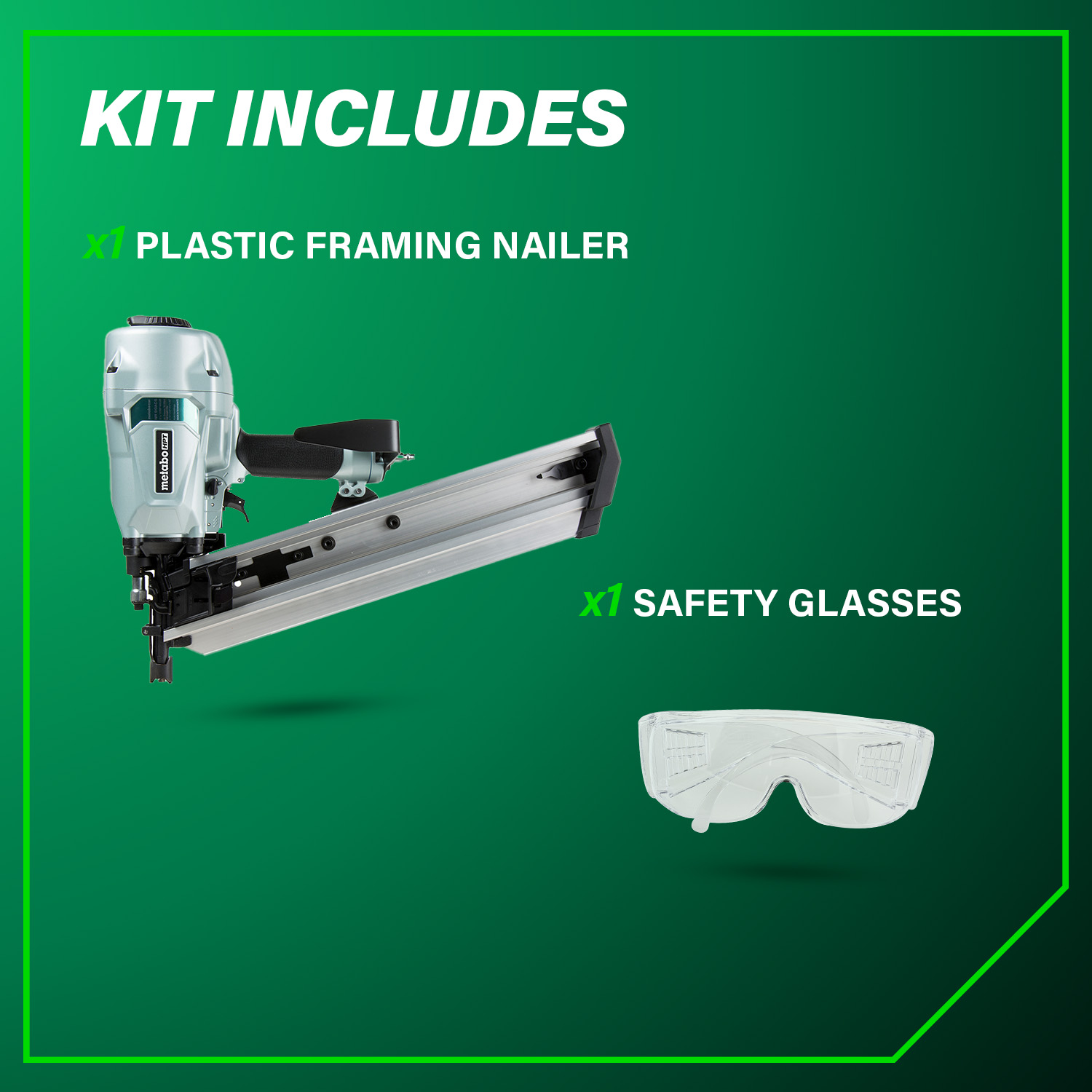

Included with the Plastic Collated Framing Nailer
  • Safety Glasses (875769)
  • Rafter Hook (889078)

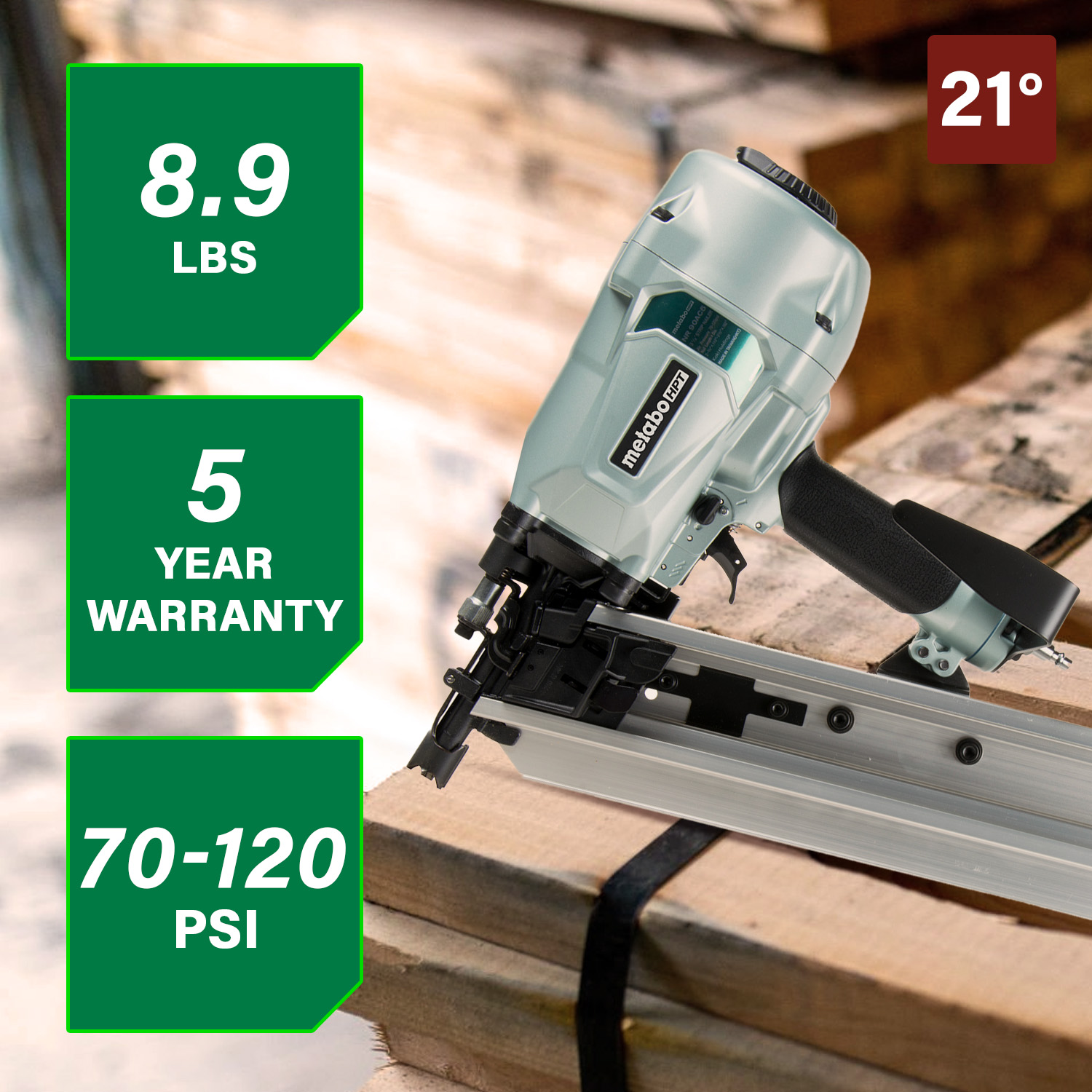

Specifications


Fastener Type Full Head, Plastic Strip Collation
Magazine Angle 21 Degrees
Fastener Length Capacity         2-3/8" - 3-1/2"
Fastener Diameter Range .113" to .162"
Magazine Capacity 64
Magazine Loading Rear
Fitting 1/4" Industrial
Operating Pressure 70-120psi
Jam Clearing Open Nose
Depth Setting Tool-Less
Actuation Selective(Sequential/Bump Fire)
Adjustable Exhaust Port Yes
L x W x H 19-13/16" x 4-3/4" x 13-7/8"
Rubber Grip Yes
Tool Weight w/o Hook 8.9lbs
Tool Weight w/ Hook 9.2lbs

Includes

  • Safety Glasses (875769)
  • Rafter Hook (889078)
