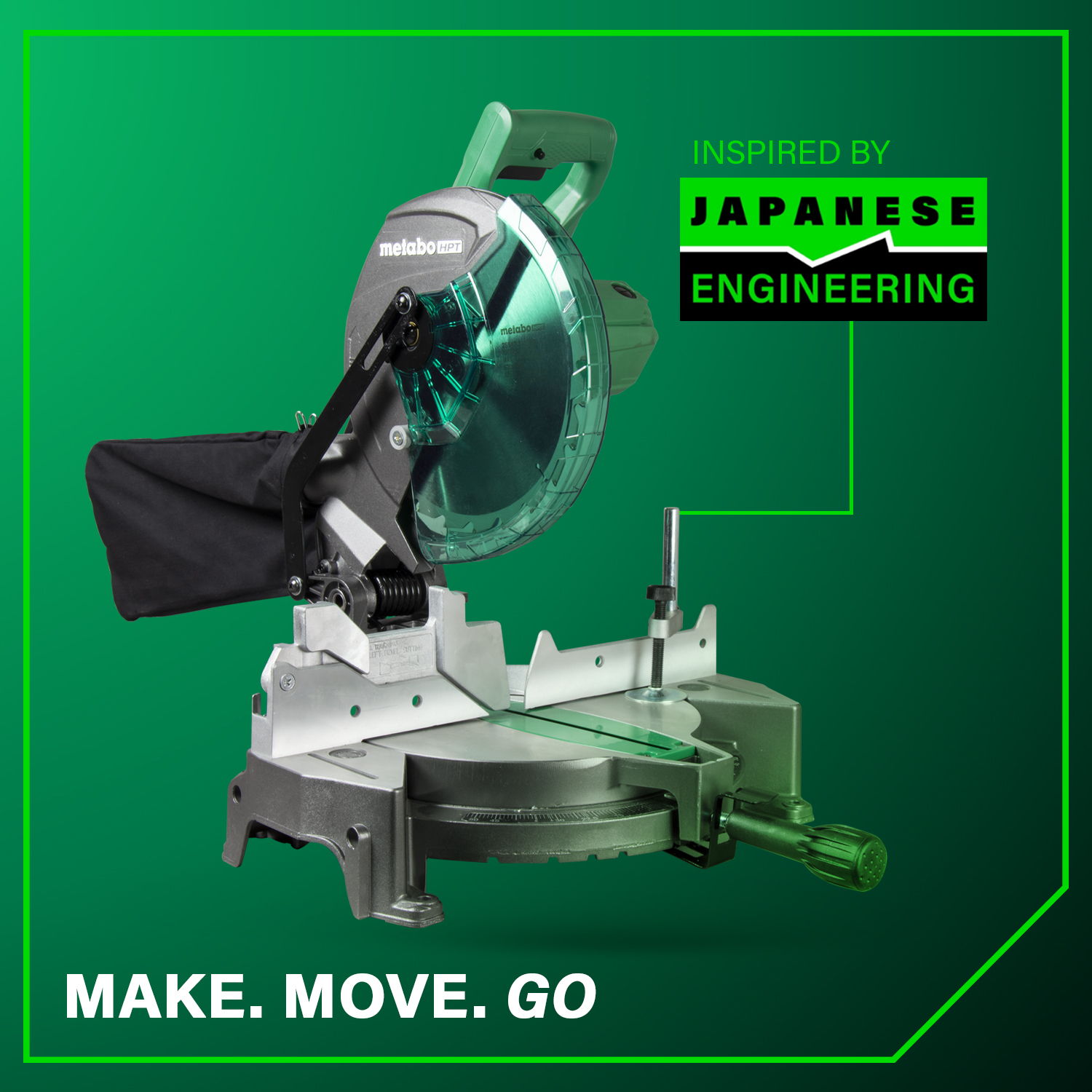

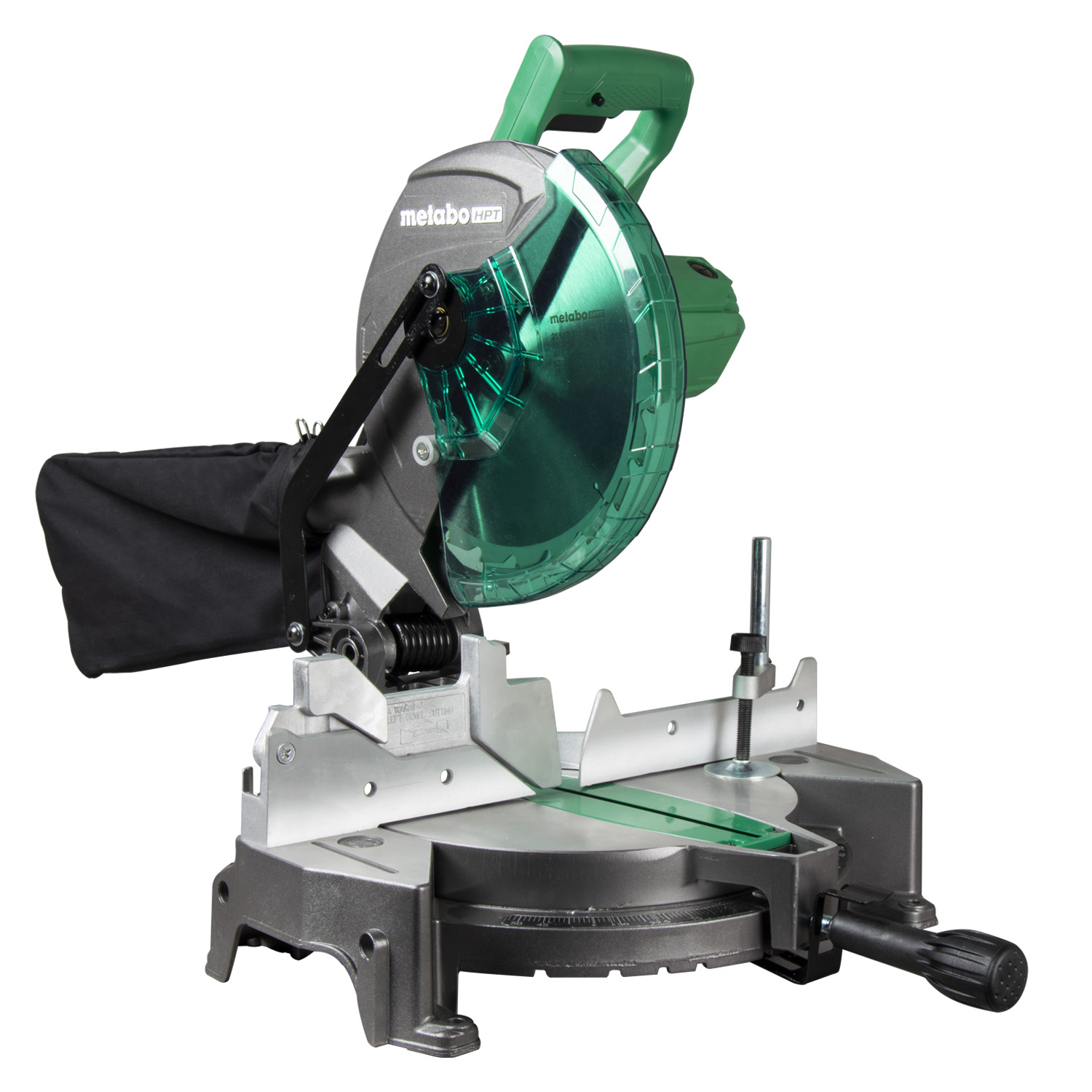

10 Inch Compound Miter Saw | Metabo HPT C10FCGS

Model# C10FCG(S)

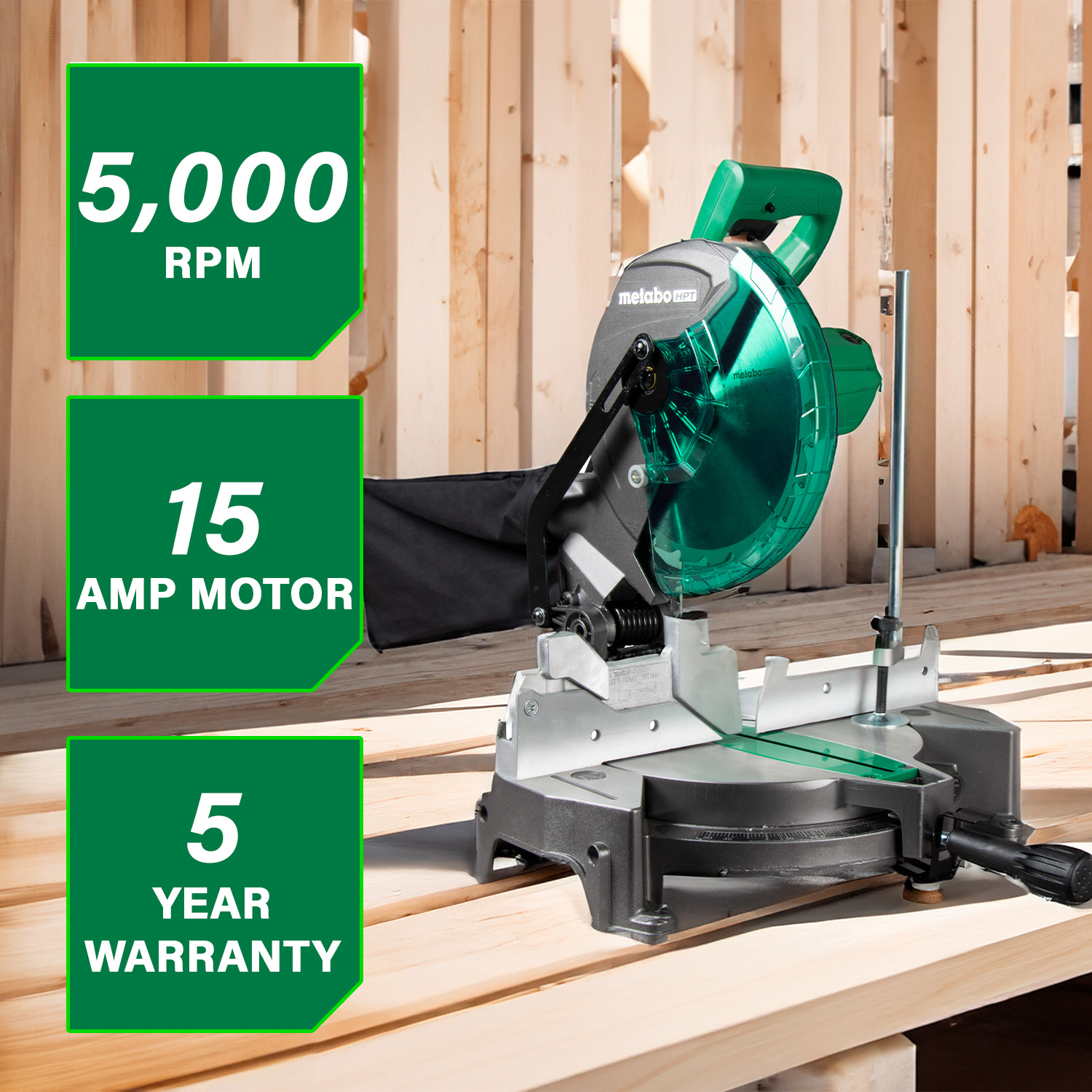

  • MOTOR: 15 Amp motor delivers high power for the toughest of cuts generating a no-load speed of up to 5,000 RPM

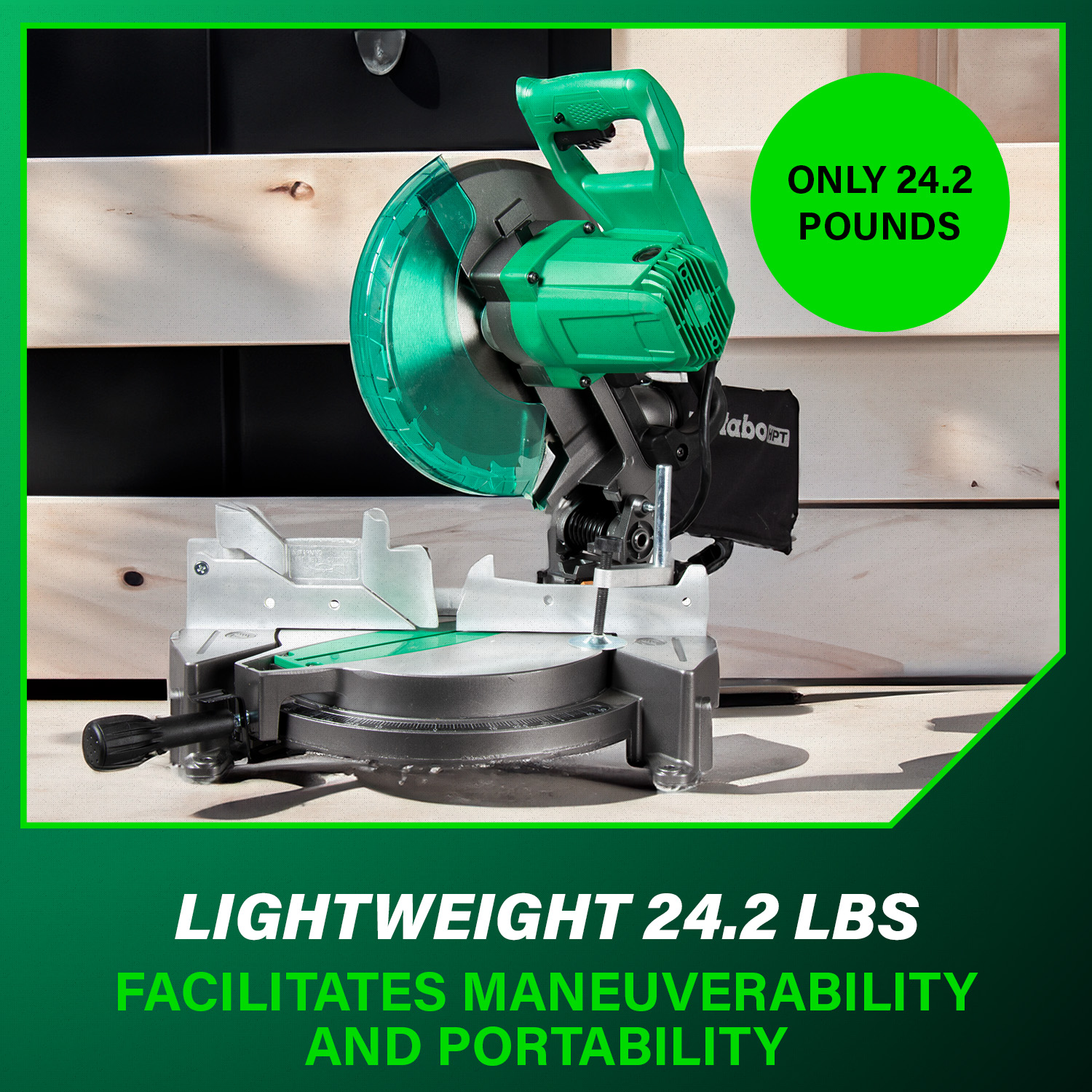

  • LIGHTWEIGHT: Only 24.2 lbs. to facilitate maneuverability and portability
  • MITER ANGLE RANGE: 0-52 degrees to the right and left for increased flexibility
  • BEVEL RANGE: 0-45 degrees to the left with adjustable bevel stops for precision cuts
  • ELECTRIC BRAKE: Halts the rotation of the blade within seconds preventing unintended cuts

  • MOTOR: 15 Amp motor delivers high power for the toughest of cuts generating a no-load speed of up to 5,000 RPM
  • LIGHTWEIGHT: Only 24.2 lbs. to facilitate maneuverability and portability
  • MITER ANGLE RANGE: 0-52 degrees to the right and left for increased flexibility
  • BEVEL RANGE: 0-45 degrees to the left with adjustable bevel stops for precision cuts
  • ELECTRIC BRAKE: Halts the rotation of the blade within seconds preventing unintended cuts

Features

MOTOR

Powerful 15 Amp motor delivers high power for the toughest of cuts

MITER ANGLE

0°-52°, to the right and left for increased flexibility

BEVEL RANGE

0°-45˚, to the left with adjustable bevel stops for precision cuts

LIGHTWEIGHT

At only 24.5 lbs. to facilitate maneuverability and portability

The 15 Amp 10 Inch Miter Saw (C10FCGS) is ideal for trim carpenters, framers, and woodworkers who demand precision, reliability and versatility on the job. The 15 amp motor generates a no-load speed of up to 5,000 RPM for making crosscuts and miters with ease, even on the toughest cutting jobs. The C10FCGS is lighter than its predecessor (model C10FCE2) weighing just 24.2 lbs. for easier transport. It’s the lightest 10 In. compound miter saw in its class to date. It has a large table with a vice clamping system to hold your workpiece safely in place.

The thumb-actuated positive miter stops allow for simple miter adjustments. The bevel has a range of 45-degrees to the left to provide clean and accurate bevel cuts. The C10FCG has a large extended flip fence which rises to 4 In. to allow for accurate cutting of large workpieces. To keep your work space clean and safe, a dust collector attachment is included. It is covered by Metabo HPT's 5-year warranty.

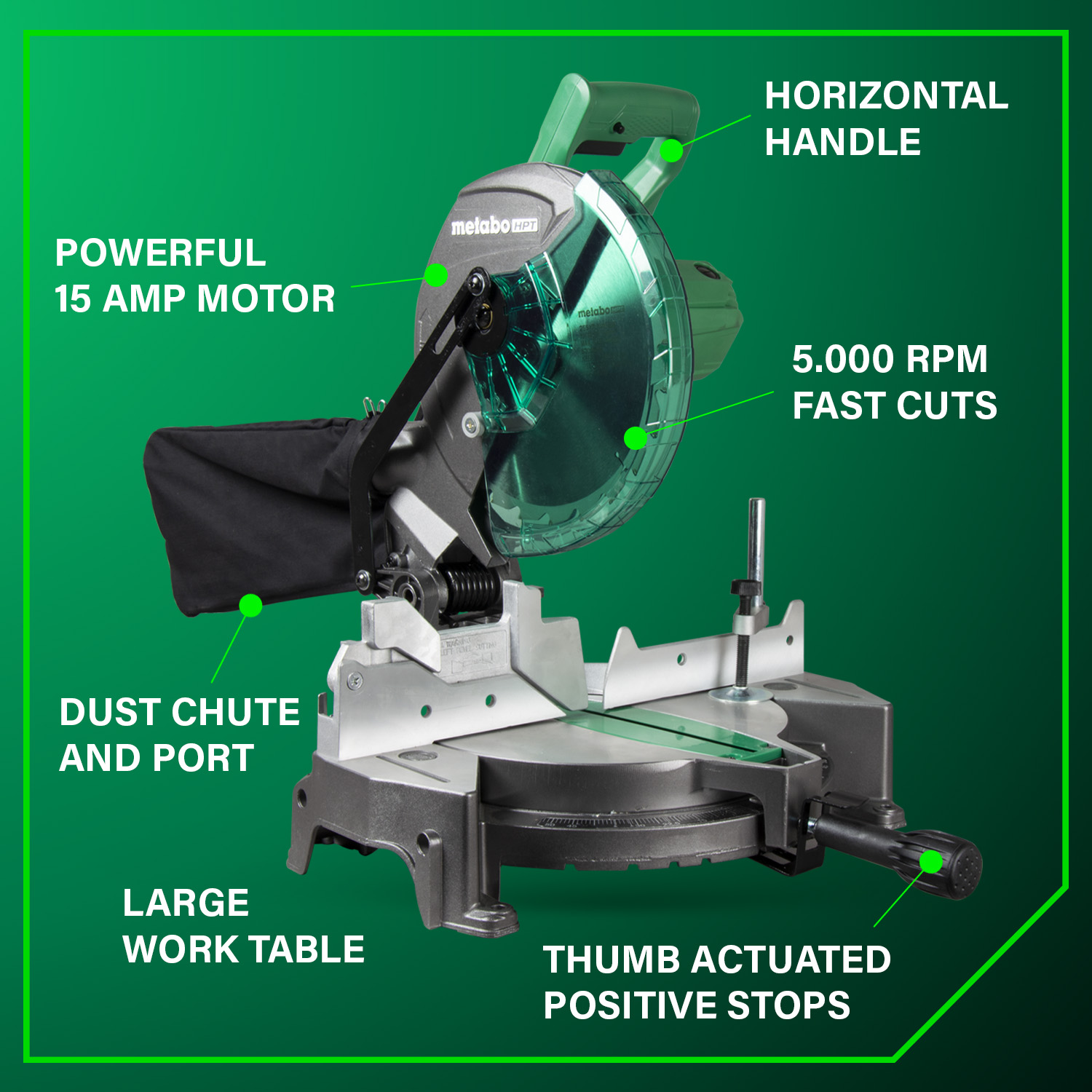

 Features of the 10" Miter Saw
  • MOTOR: 15 Amp motor delivers high power for the toughest of cuts generating a no-load speed of up to 5,000 RPM
  • LIGHTWEIGHT: Only 24.2 lbs. to facilitate maneuverability and portability
  • MITER ANGLE RANGE: 0-52 degrees, to the right and left for increased flexibility
  • BEVEL RANGE: 0-45 degrees, to the left with adjustable bevel stops for precision cuts

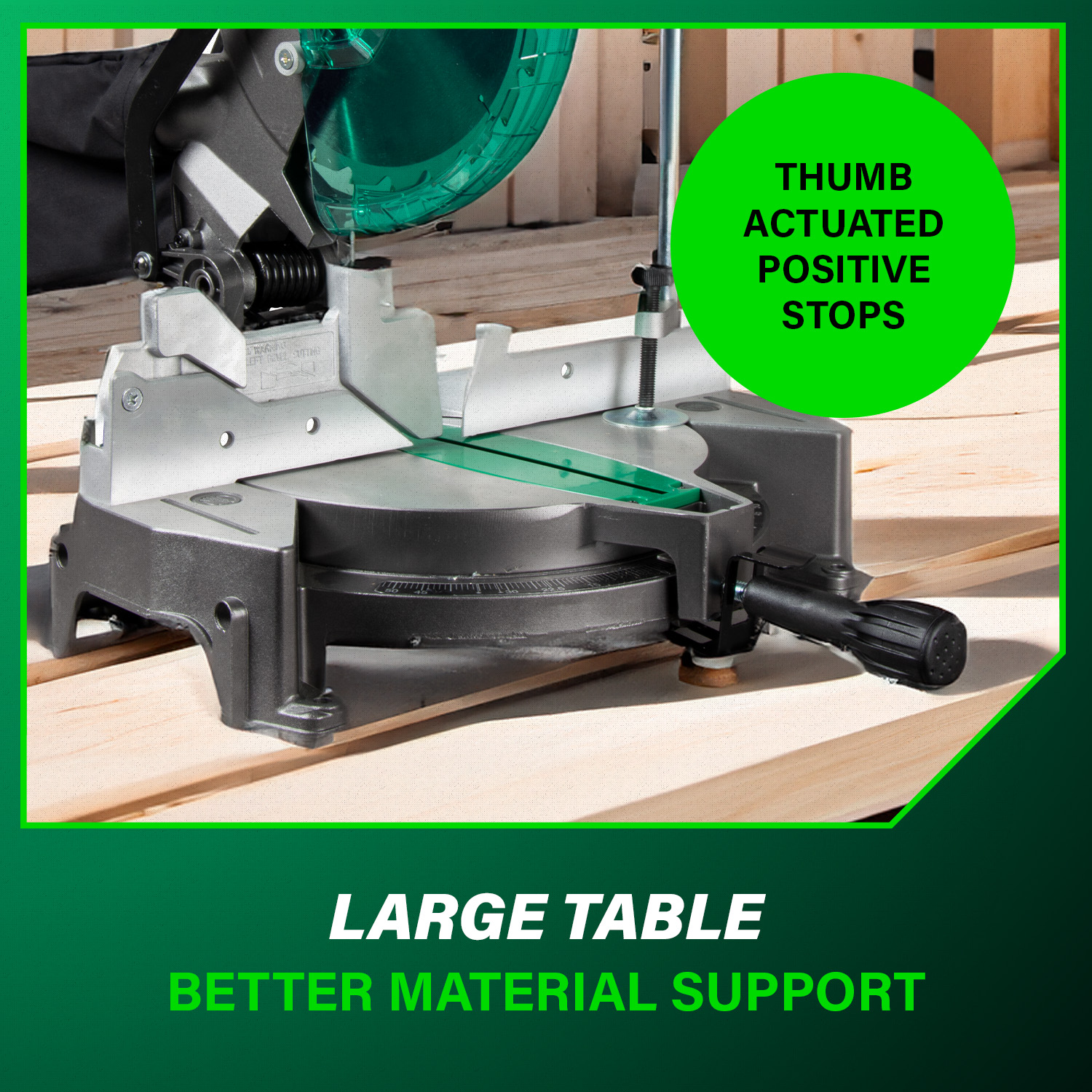

  • LARGE TABLE: Offers better material support with vice clamping system to secure work piece
  • ELECTRIC BRAKE: Halts the rotation of the blade within seconds preventing unintended cuts
  • THUMB ACTUATED POSITIVE STOPS: For quick miter adjustments
  • HORIZONTAL HANDLE: For a secure hold

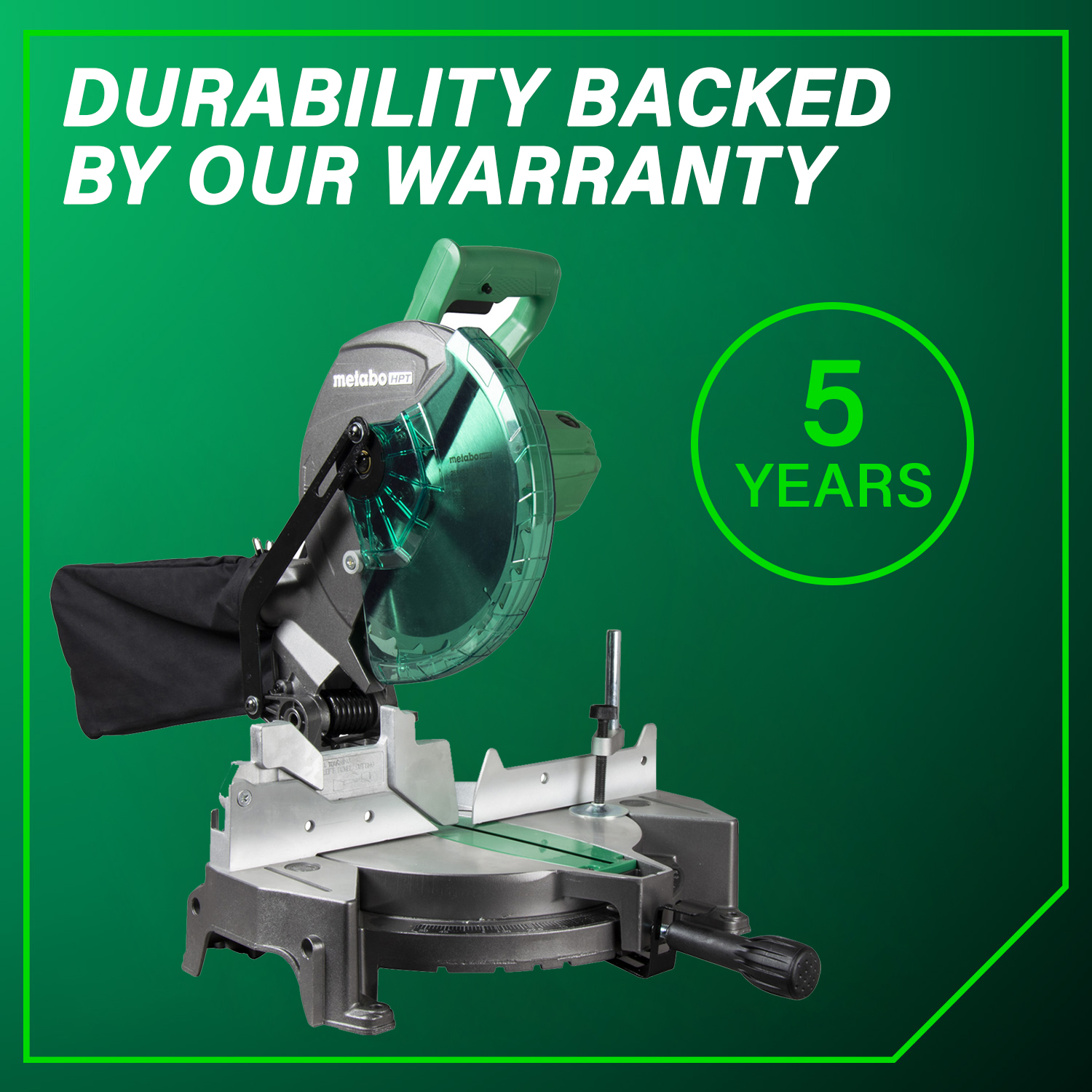

  • WARRANTY: Covered by Metabo HPT's Professional 5-Year Tool Warranty
  • TOOL CARD: Download the C10FCG(S) Tool Card

 Included with 10" Miter Saw:

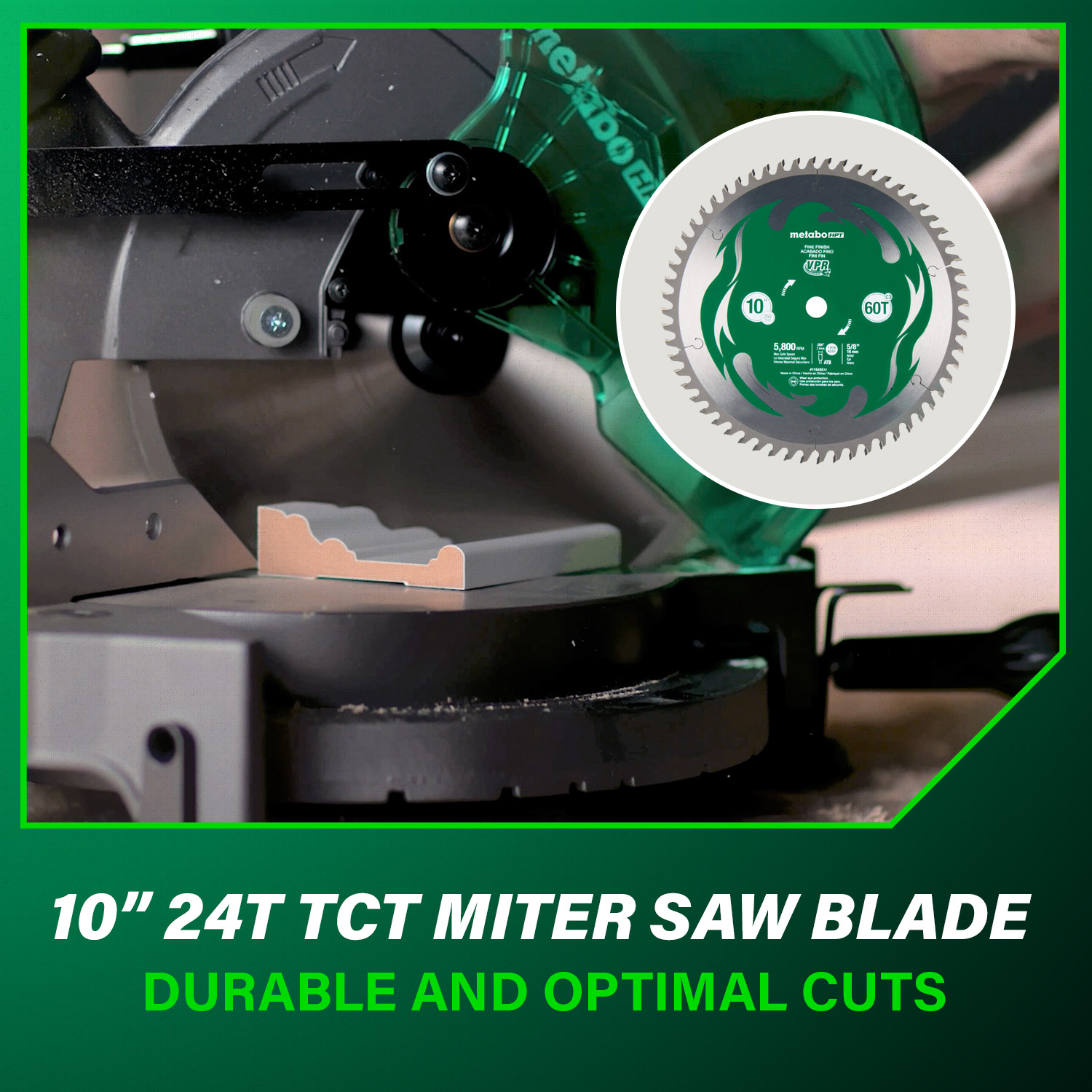

  • 10" 24T TCT Saw Blade
  • Dust Bag (322955M)
  • Vise Assembly (322952)
  • Hex. Bar Wrench (5mm)
  • Holder

Specifications

Miter Cutting RangeL/R 0-52 degrees
Bevel Cutting RangeLeft 0-45 degrees
Compound Cutting RangeLeft bevel 0-45 degrees, right & left (miter) 0-45 degrees
Positive StopsRight & left 0, 15, 22.5, 31.6, & 45 degrees
Saw Blade Diameter10"
No-Load Speed5,000/min
Saw Blade Bore5/8"
Power RequirementsAC single phase 60 Hz, 120 V
Full Load Current15 A
Maximum Output1,950 W
Dimensions (width x depth x height)18-1/2" x 23" x 21-1/2"
Cord6ft. in length
Motor TypeAC single phase commutator series motor
Weight24.2 lbs
Electric BrakeYes
Soft StartNo
Warranty5-Year




Includes

  • 10" 24T TCT Saw Blade
  • Dust Bag (322955)
  • Vise Assembly (322952)
  • Hex. Bar Wrench (5mm)
  • Holder
