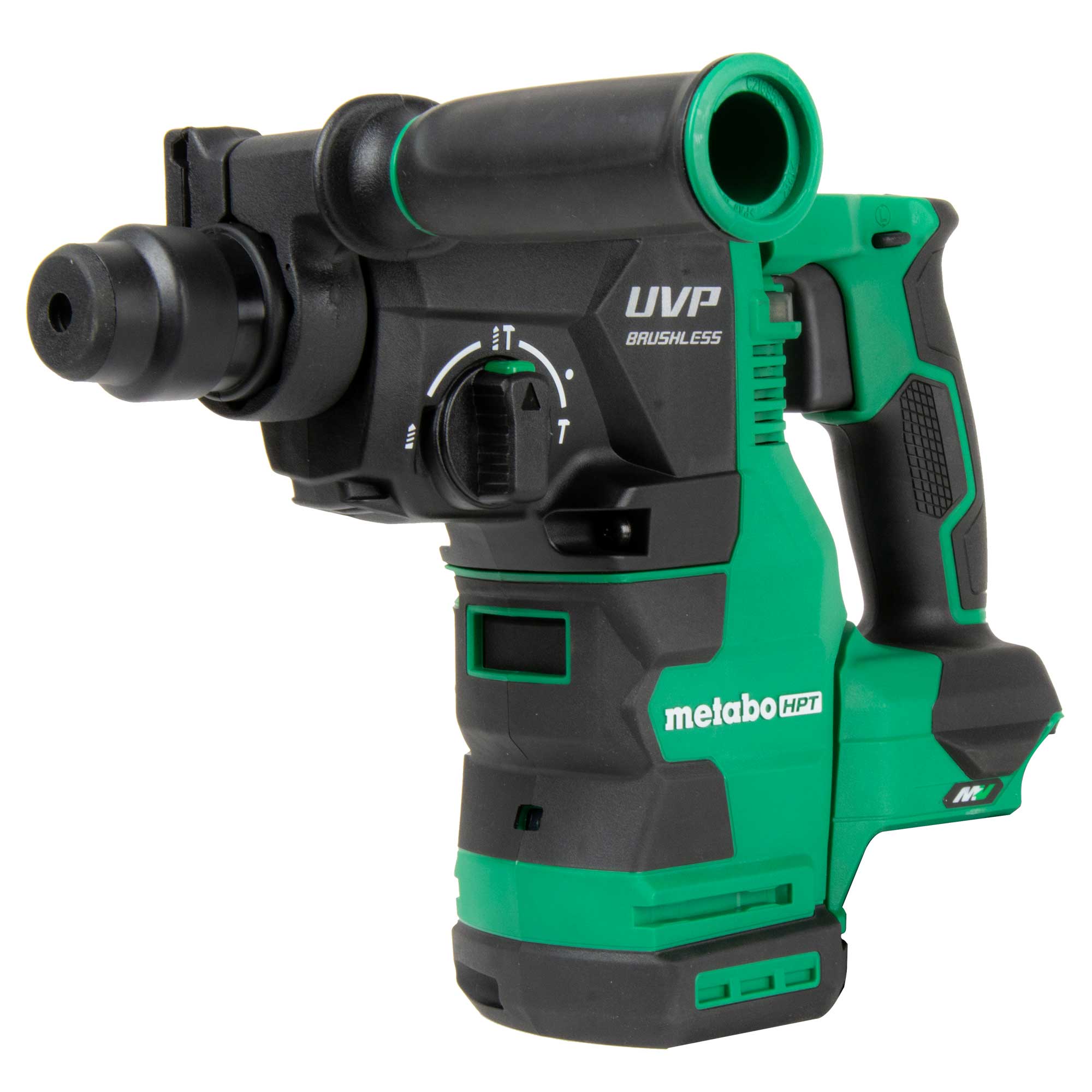

36V MultiVolt™ 1-1/8" SDS Plus Rotary Hammer w/ UVP (Tool Body Only) | Metabo HPT DH3628DAQ4
Model# DH3628DAQ4
- TOOL BODY ONLY: Accepts any 18V/36V MultiVolt battery or AC Adapter (sold separately)
- POWER: High impact energy of 2.3 ft-lbs, 950 RPM, and 4,300 BPM for high drilling speeds and great demolition performance
- 3-OPERATION MODES: Hammer Drilling, Chipping and Drilling
- USER VIBRATION PROTECTION: With its dynamic vibration absorber and low vibration handle you can work longer with less fatigue
- TOOL BODY ONLY: Accepts any 18V/36V MultiVolt battery or AC Adapter (sold separately)
- POWER: High impact energy of 2.3 ft-lbs, 950 RPM, and 4,300 BPM for high drilling speeds and great demolition performance
- 3-OPERATION MODES: Hammer Drilling, Chipping and Drilling
- USER VIBRATION PROTECTION: With its dynamic vibration absorber and low vibration handle you can work longer with less fatigue
Features
The 36V MultiVolt Brushless 1-1/8" SDS Plus Rotary Hammer with UVP model - DH3628DAQ4 (tool body only) offers corded performance with the convenience and versatility of a cordless tool. GO all day with less fatigue as its reduced weight design and added User Vibration Protection (UVP) makes drilling easier. Work more efficiently with the auto stop feature that allows for set times when drilling repetitively. Control the power with its two-speed setting functions. Work safely as the Reactive Force Control (RFC) stops the motor before the entire tool jerks if the tool bit is suddenly overburdened during operation. Use the LED level with a built in sensor that will detect the tilt of the tool and indicate when straight for precising drilling. This results in less time and money being spent adjusting skewed anchor bolts or re-drilling anchors. Work cleaner and safer with the optional dust extractor (#379135M).
The DH3628DAQ4 36V Brushless Cordless 1-1/8" SDS Plus Rotary Hammer is part of the expanding MultiVolt system of power tools from Metabo HPT. It accepts any MulitVolt battery for extreme power and runtime and can also accept the unique AC Adapter (ET36A) to plug in for all day runtime, offering ultimate versatility and power on the GO. Also available kitted - model DH3628DA.
The DH3628DAQ4 36V Brushless Cordless 1-1/8" SDS Plus Rotary Hammer is part of the expanding MultiVolt system of power tools from Metabo HPT. It accepts any MulitVolt battery for extreme power and runtime and can also accept the unique AC Adapter (ET36A) to plug in for all day runtime, offering ultimate versatility and power on the GO. Also available kitted - model DH3628DA.
Features of the 36V MultiVolt 1-1/8" SDS Plus Rotary Hammer w/ UVP
- TOOL BODY ONLY: Accepts any 18V/36V MultiVolt battery or AC Adapter (sold separately)
- POWER: High impact energy of 2.3 ft-lbs, 950 RPM, and 4,300 BPM for high drilling speeds and great demolition performance
- 3-OPERATION MODES: Hammer Drilling, Chipping and Drilling
- USER VIBRATION PROTECTION: With its dynamic vibration absorber and low vibration handle you can work longer with less fatigue
- LED LEVEL: With a built in sensor that detect the tilt of the tool and indicate when straight for precising drilling
- AUTO STOP: The motor can be set to stop at a specific time interval for repetitive drilling
- 2 SPEED MODES: Normal mode (0 - 950 RPM) and low mode (0 - 750 RPM)
- REACTIVE FORCE CONTROL: Reduce worksite injury by stopping tool rotation in the event of bound bit or tool overload is detected
- ONE PUSH BIT MOUNTING: Makes changing out bits quick and easy
- LED LIGHT: Provides ample light when visibility is poor
- BRUSHLESS MOTOR TECHNOLOGY: For more run-time, increased power, extended durability with essentially no maintenance
- WARRANTY: 1-Year Tool Body
- ALSO AVAILABLE: Kitted version - model DH3628DA with 18V/36V MultiVolt Lithium Ion Slide Battery 8.0Ah/4.0Ah (372121M) and Rapid Charger (UC18YSL3)
- TOOL CARD: Download the DH3628DAQ4 Tool Card
Included with the 36V SDS Plus Rotary Hammer
- Side Handle (335273)

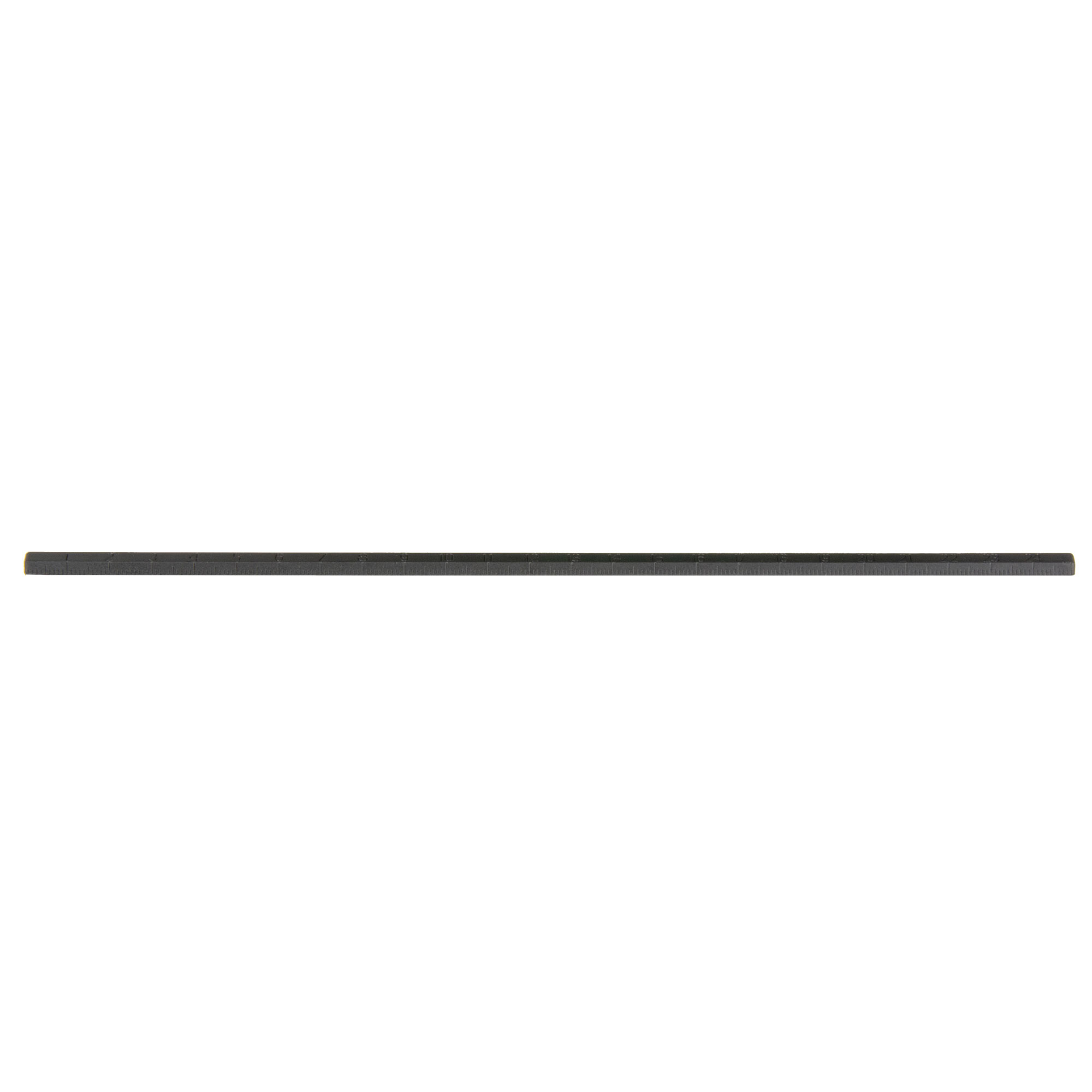

- Depth Gauge (303709)

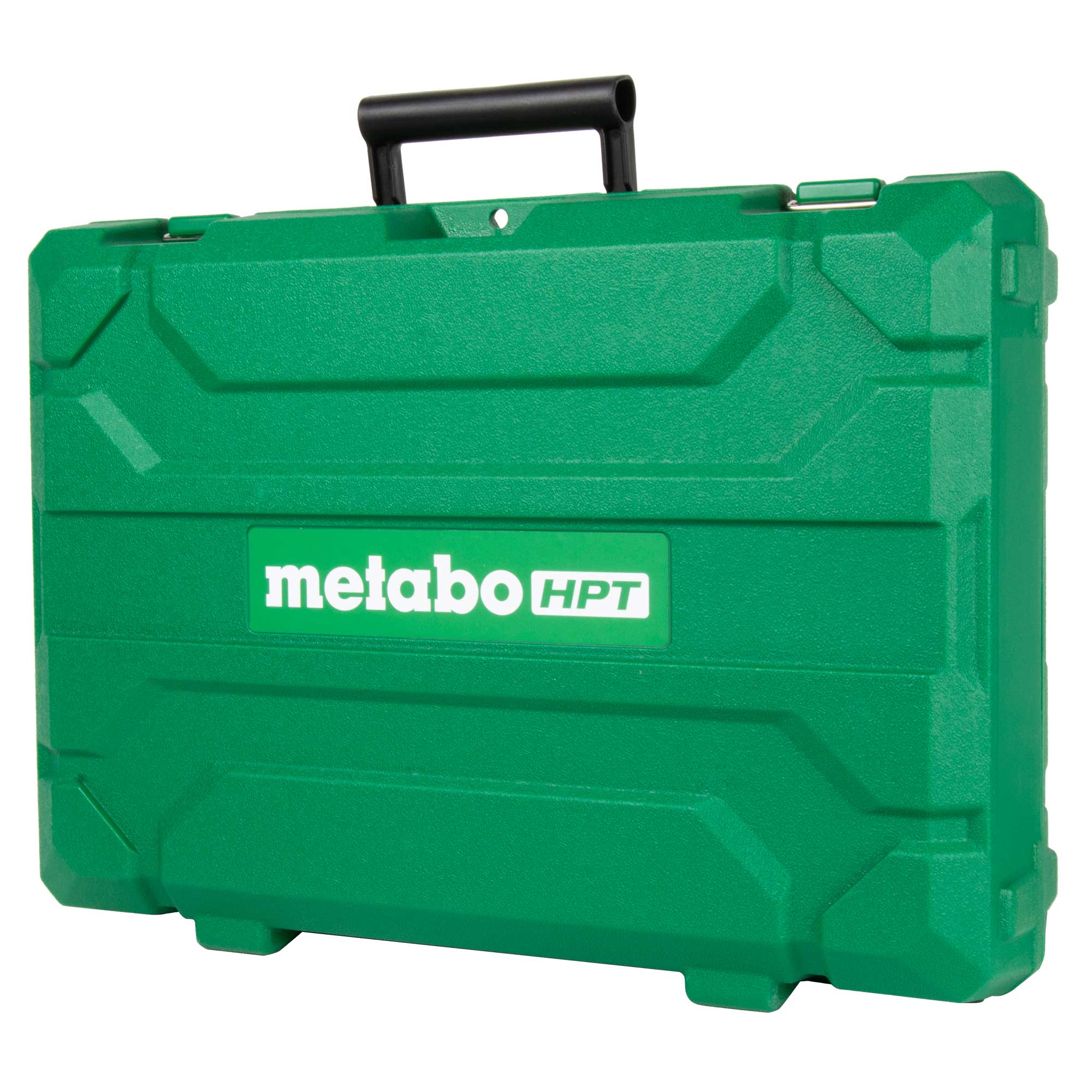

- Carrying Case (379791)
Optional Accessories (sold separately)
|
18V/36V MultiVolt Li-Ion 5.0Ah/2.5Ah Battery (BSL36A18) |
|
|
18V/36V MultiVolt Li-Ion 8.0Ah/4.0Ah Battery (BSL36B18) |
|
|
36V MultiVolt AC Adapter |
ET36A |
|
(1) 18V/36V MultiVolt Li-Ion 8.0Ah/4.0Ah Battery & Charger Starter Kit |
|
|
4 Port Battery Charger |
UC18YTSL |
|
18V/36V Rapid Charger w/USB Port |
|
|
Battery Charger |
|
Specifications
| Volts | 36V |
| Batteries Included | 0 |
| Bit Shank | SDS Plus |
| Speed Modes | Normal (0 - 950 RPM) | Low (0 - 750 RPM) |
| Operation Modes (3) | Hammer Drilling / Chipping / Drilling |
| Impact Rate | 0 - 4,300 BPM |
| Impact Energy | 2.3 ft-lbs |
| Capacity (Concrete) | 1-1/8" |
| Capacity (Steel) | 1/2" |
| Capacity (Wood) | 1-1/4" |
| Variable Speed | Trigger (w/ lock on feature) |
| LED Light | Equipped |
| Length (w/ 36V 4.0Ah Battery) | 14-11/16" |
| Weight (Tool Body Only) | 7.0 lbs |
| Warranty | 1 Year |
Includes
- Side Handle (335273)
- Depth Gauge (303709)
- Carrying Case (379791)
|
18V/36V MultiVolt Li-Ion 5.0Ah/2.5Ah Battery (BSL36A18) |
|
|
18V/36V MultiVolt Li-Ion 8.0Ah/4.0Ah Battery (BSL36B18) |
|
|
36V MultiVolt AC Adapter |
ET36A |
|
(1) 18V/36V MultiVolt Li-Ion 8.0Ah/4.0Ah Battery & Charger Starter Kit |
|
|
4 Port Battery Charger |
UC18YTSL |
|
18V/36V Rapid Charger w/USB Port |
|
|
Battery Charger |
|
