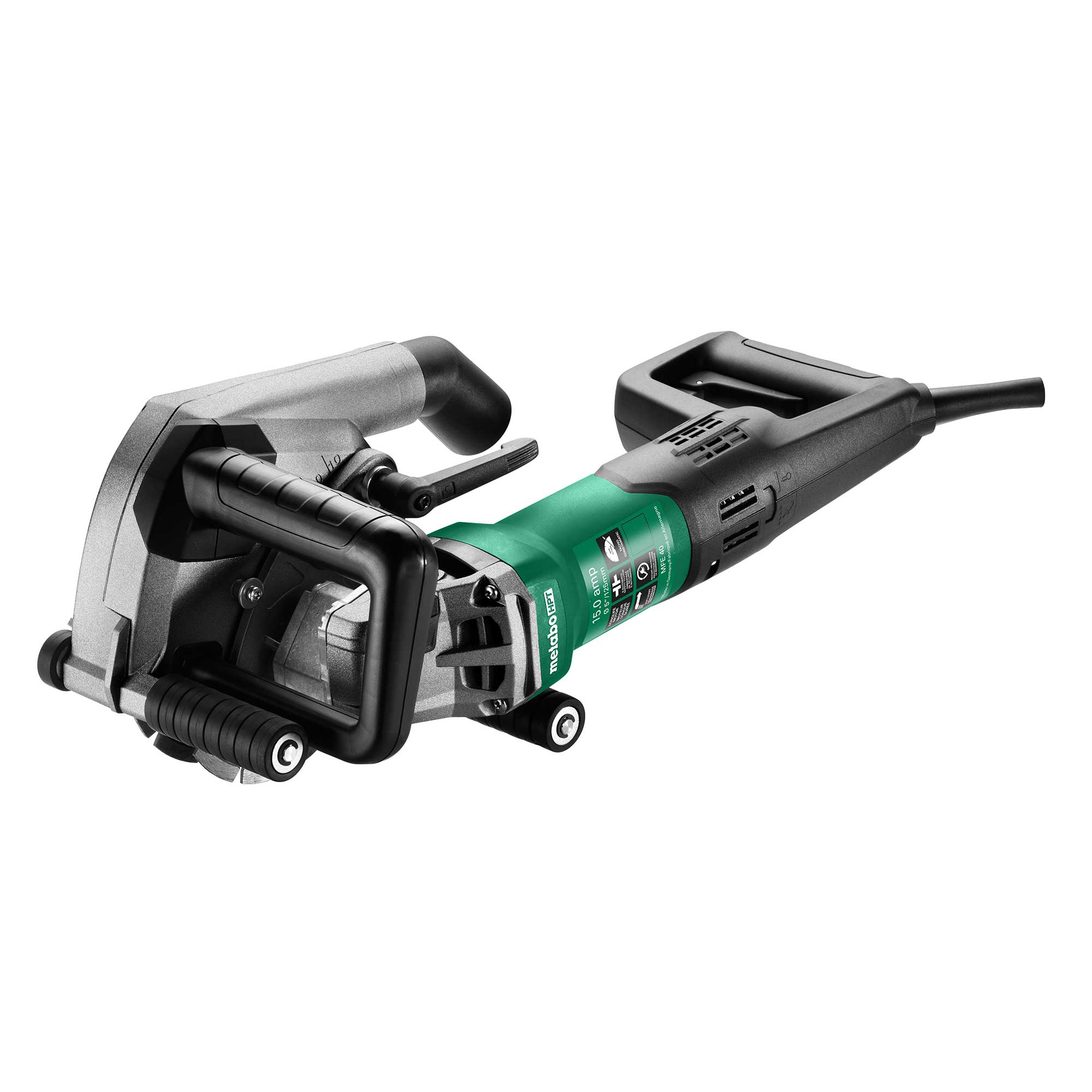

5" 15 Amps MFE 40 Wall Chaser (Concrete) | Metabo HPT 646040620
Model# 646040620
- IDEAL FOR: Electrical installation, wiring cables and empty pipes under plaster with cutting depths up to 3/8 - 1 9/16 "(40 mm)
- MAXIMUM PRODUCTIVITY: Due to a powerful motor, constant speed, and two-stage high-power drive
- DIE-CAST ALUMINUM: Cover with rubber rollers and optimum grip arrangement for comfortable machine guidance
- SLIDING CUT: For optimal view of the marking line
- IDEAL FOR: Electrical installation, wiring cables and empty pipes under plaster with cutting depths up to 3/8 - 1 9/16 "(40 mm)
- MAXIMUM PRODUCTIVITY: Due to a powerful motor, constant speed, and two-stage high-power drive
- DIE-CAST ALUMINUM: Cover with rubber rollers and optimum grip arrangement for comfortable machine guidance
- SLIDING CUT: For optimal view of the marking line
Features

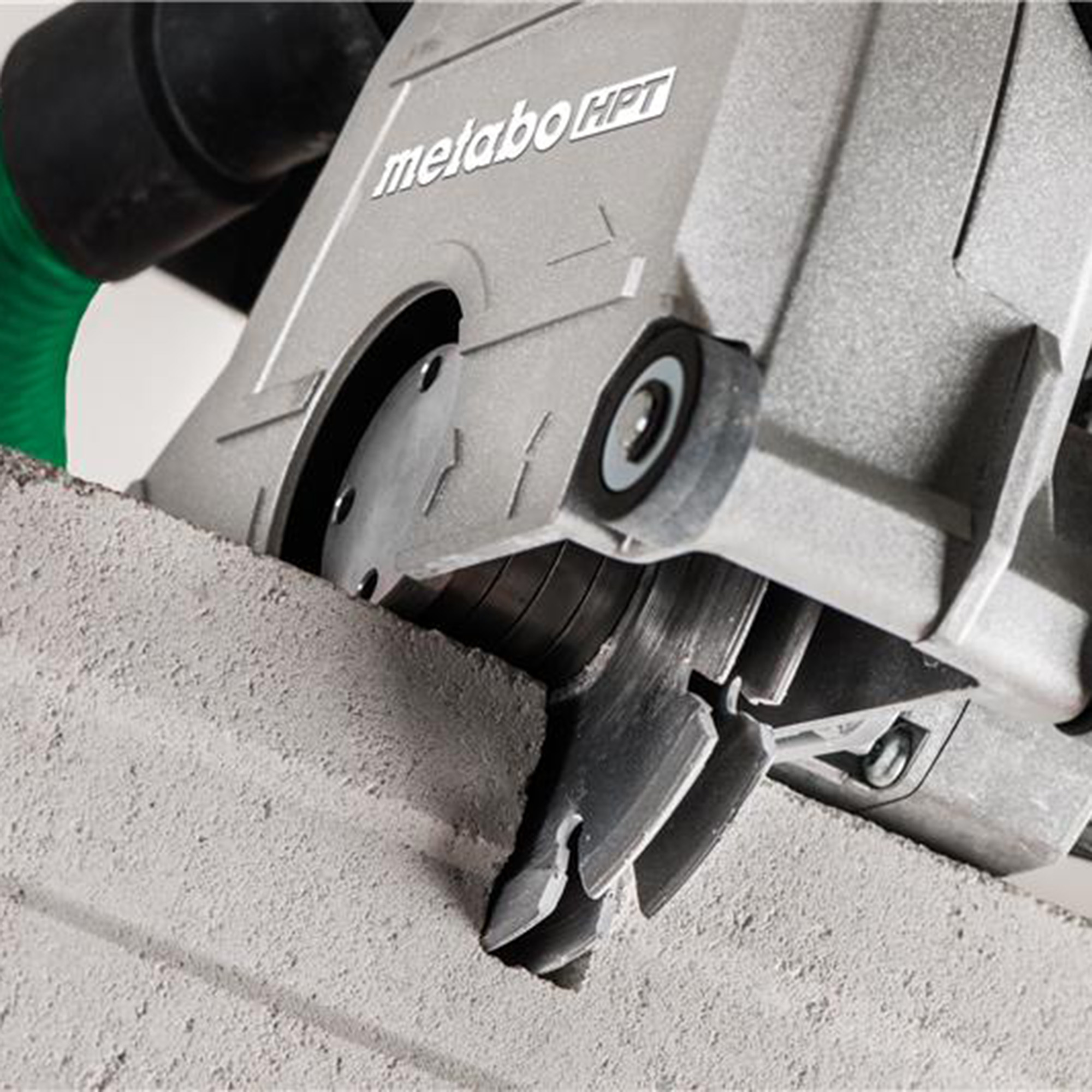

The Metabo HPT Wall Chaser, MFE 40 (646040620) is a 5”, 15-amp, variable-depth grinding tool made in Germany for professional-grade performance in routing channels for electrical wiring, cables, and empty pipes into plaster, concrete, and masonry up to 3/8”–1 9/16” (40 mm) deep.
It features a powerful LongLife motor with dust protection and a two-stage high-power drive system that maintains constant speed through Metabo HPT’s Tacho-Constamatic full-wave electronics, delivering up to 5,000 RPM no-load and 4,400 RPM underload. The die-cast aluminum cover with rubber rollers ensures smooth, comfortable guidance, while sliding cut visibility enhances accuracy.
Safety and durability are optimized via electronic soft start, restart protection, overload signaling LEDs, and Metabo HPT’s S-Automatic torque-limiting.
The tool connects easily to a Metabo HPT vacuum for low-dust operation. The tool comes with two diamond cutting discs, spacer rings, a chase extraction chisel, a wrench, and a durable plastic carrying case.
MAKE. MOVE. GO
- IDEAL FOR: Electrical installation, wiring cables and empty pipes under plaster with cutting depths up to 3/8 - 1 9/16 "(40 mm)
- MAXIMUM PRODUCTIVITY: Due to a powerful motor, constant speed, and two-stage high-power drive
- DIE-CAST ALUMINUM: Cover with rubber rollers and optimum grip arrangement for comfortable machine guidance
- SLIDING CUT: For optimal view of the marking line
- HIGH-POWER DRIVE: Delivers maximum productivity due to a powerful 15 Amp motor, constant speed
- NO-LOAD SPEED: 5,000 RPM
- TACHO-CONSTAMATIC (TC): Full Wave Electronics: fast work progress by means of constant speed under load
- TORQUE LIMITING CLUTCH: Mechanical decoupling of the drive for safe working should the disc stop unexpectedly
- DUST PROTECTION: Metabo HPT Long-life motor with patented dust protection for long service life
- LED SIGNAL: Informs about overload or active restart protection
- APPLICATIONS: Routing channels for electrical wiring, cables, and empty pipes into plaster, concrete, and masonry
- WARRANTY: 3-year tool body only
- (1) 5" 15 Amps MFE 40 Wall Chaser (Concrete)
- Spacer Rings
- 2 Diamond Cutting Discs
- Flange Nut
- Spanner Wrench
- Chase Extraction Chisel
- Plastic Carrying Case
Specifications
| Amps | 15 AMPS |
| Adjustable Cutting Depth | 3/8" - 1-9/16" |
| Possible groove widths | 3/8"/ 5/8"/ 7/8" / 1-1/8"/ 1-3/8" |
| Cutting Disc | 5" |
| Rated input power | 1700 W |
| Output Power | 950 W |
| No-Load Speed | 5000 RPM |
| Speed at Rated Load | 4400 RPM |
| Torque | 53 in-lbs |
| Weight (without power cable) | 10.1 lbs |
| Cable length | 13 ft |
Includes
- (1) 5" 15 Amps MFE 40 Wall Chaser (Concrete)
- Spacer rings
- 2 Diamond cutting discs
- Flange nut
- Spanner wrench
- Chase extraction chisel
- Plastic carrying case
