10 Inch Sliding Dual Compound Miter Saw with Laser | Metabo HPT C10FSHCT
Model# C10FSHCT
- POWER: Powerful 15 Amp motor to tackle tough cutting jobs with ease

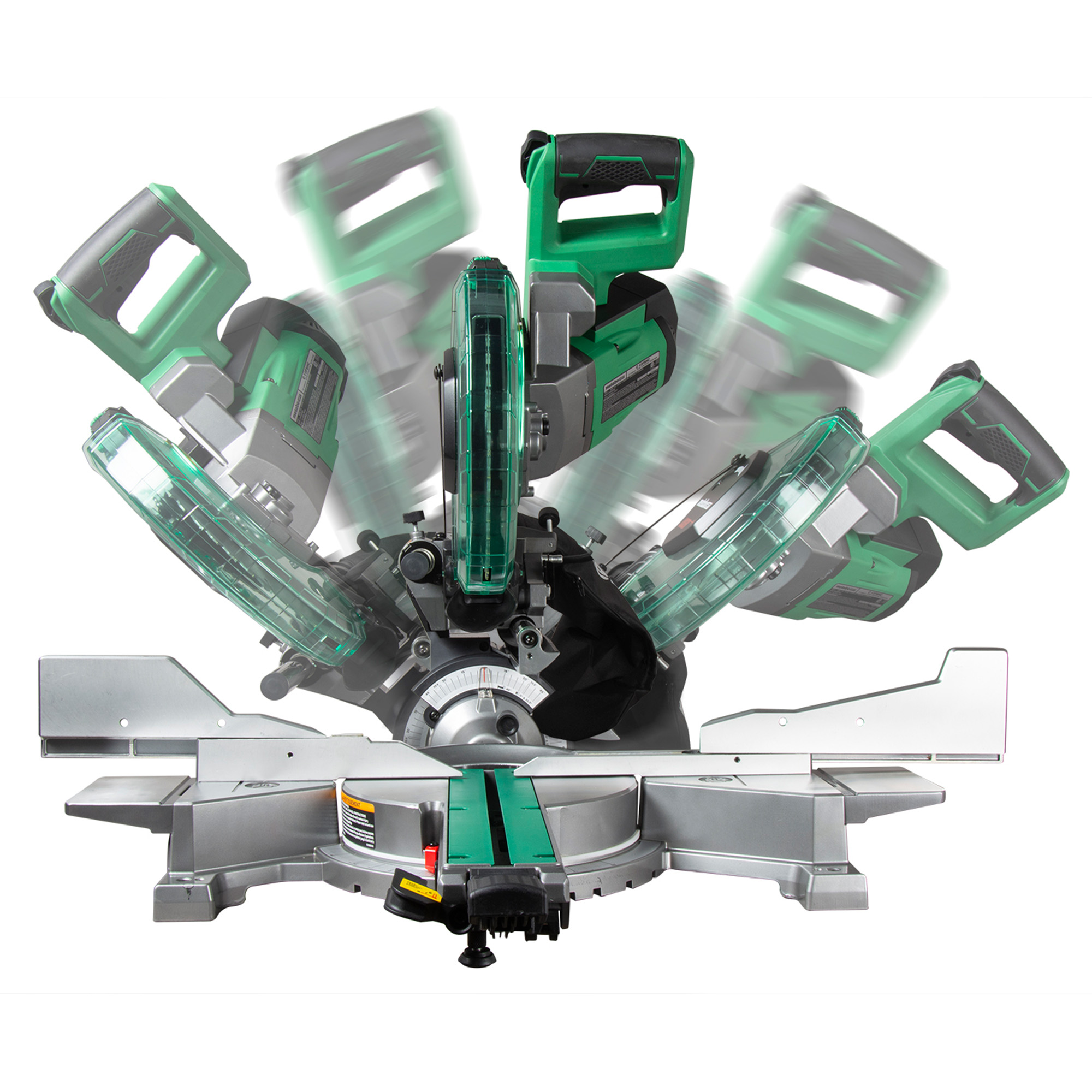

- BEVEL ANGLE: 0-48 degree bevel angle range to the right and left allows user to quickly and easily flip the saw blade, and leave the material in place
- MITER ANGLE: 0-60° miter angle to the right and 0-55°miter angle to the left for ultra-flexibility
- POWER: Powerful 15 Amp motor to tackle tough cutting jobs with ease
- BEVEL ANGLE: 0-48 degree bevel angle range to the right and left allows user to quickly and easily flip the saw blade, and leave the material in place
- MITER ANGLE: 0-60° miter angle to the right and 0-55°miter angle to the left for ultra-flexibility
Features
POWER
Powerful 15 Amp motor to tackle tough cutting jobs with ease
BEVEL ANGLE
0-48 degree bevel angle range to the right and left allows user to quickly and easily flip the saw blade, and leave the material in place
MITER ANGLE
0-60° miter angle to the right and 0-55°miter angle to the left for ultra-flexibility
WARRANTY
Covered by Metabo HPT's professional 5-year Warranty

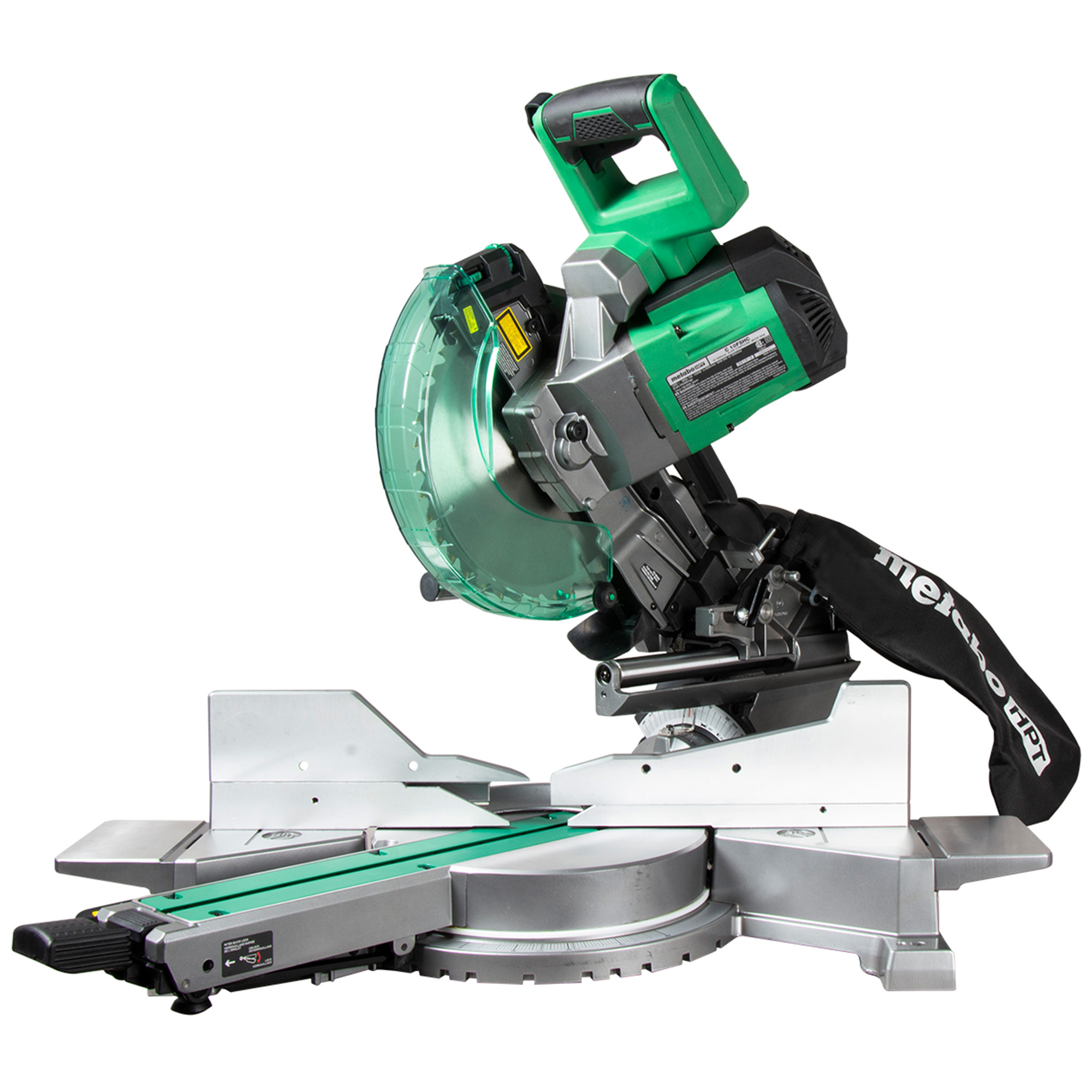

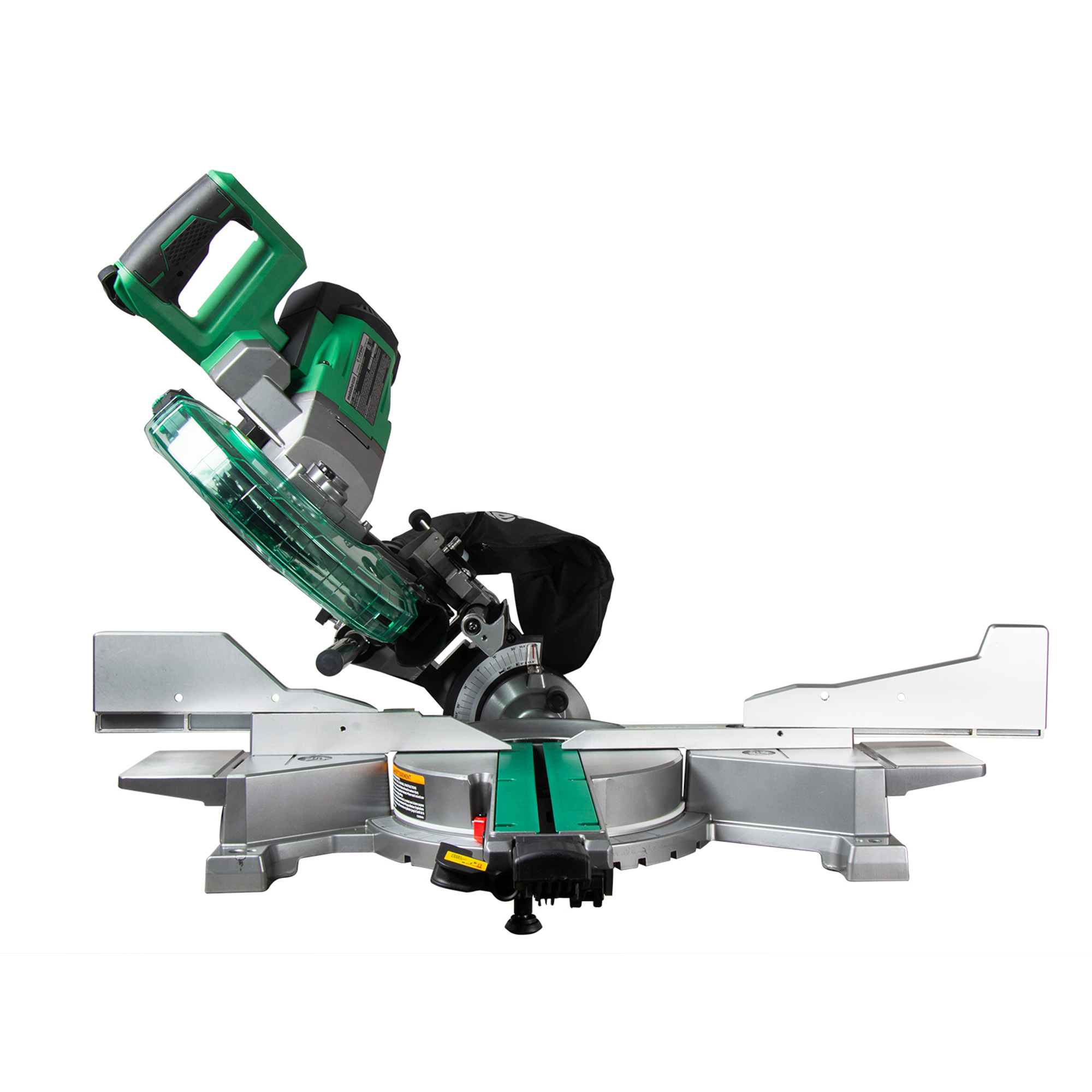

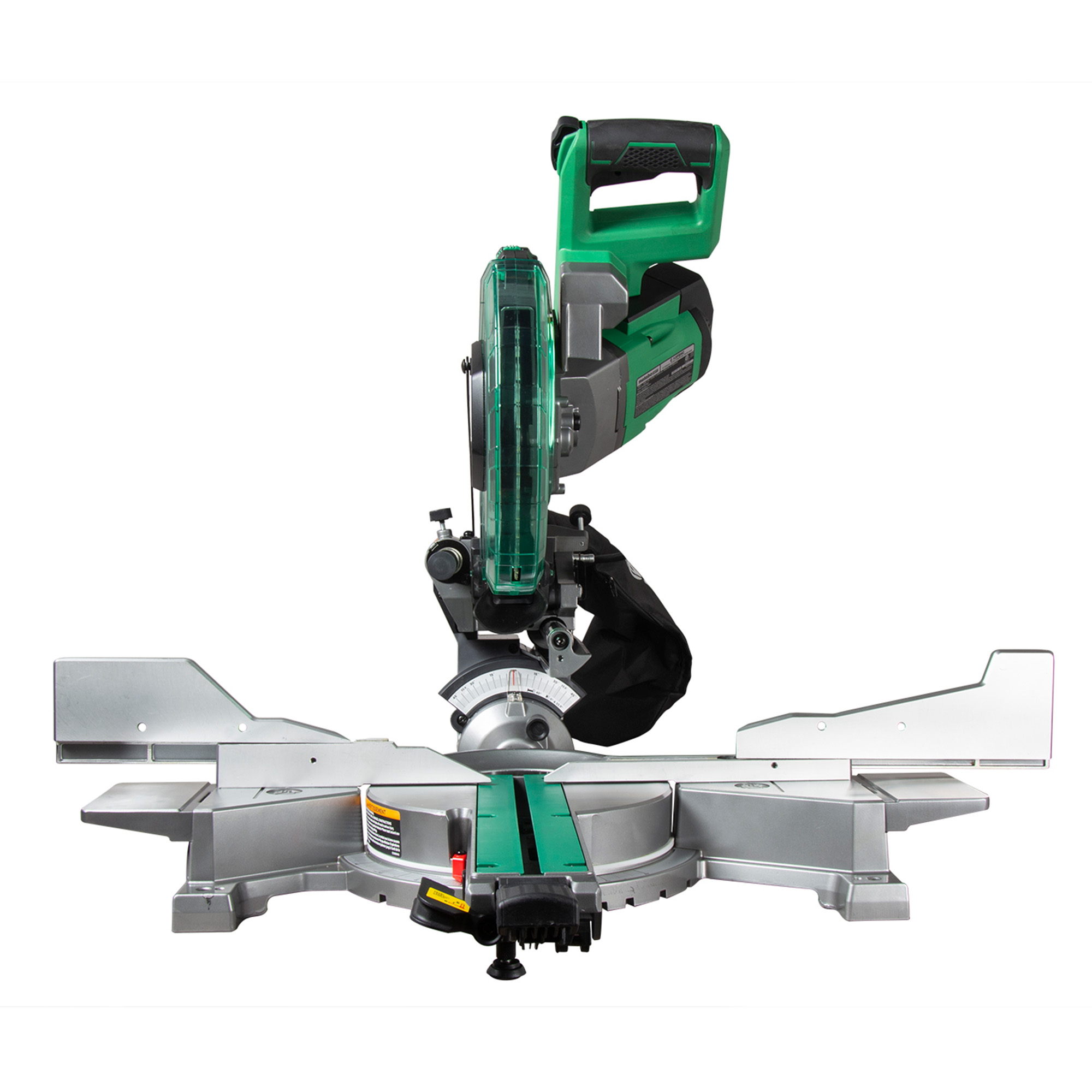

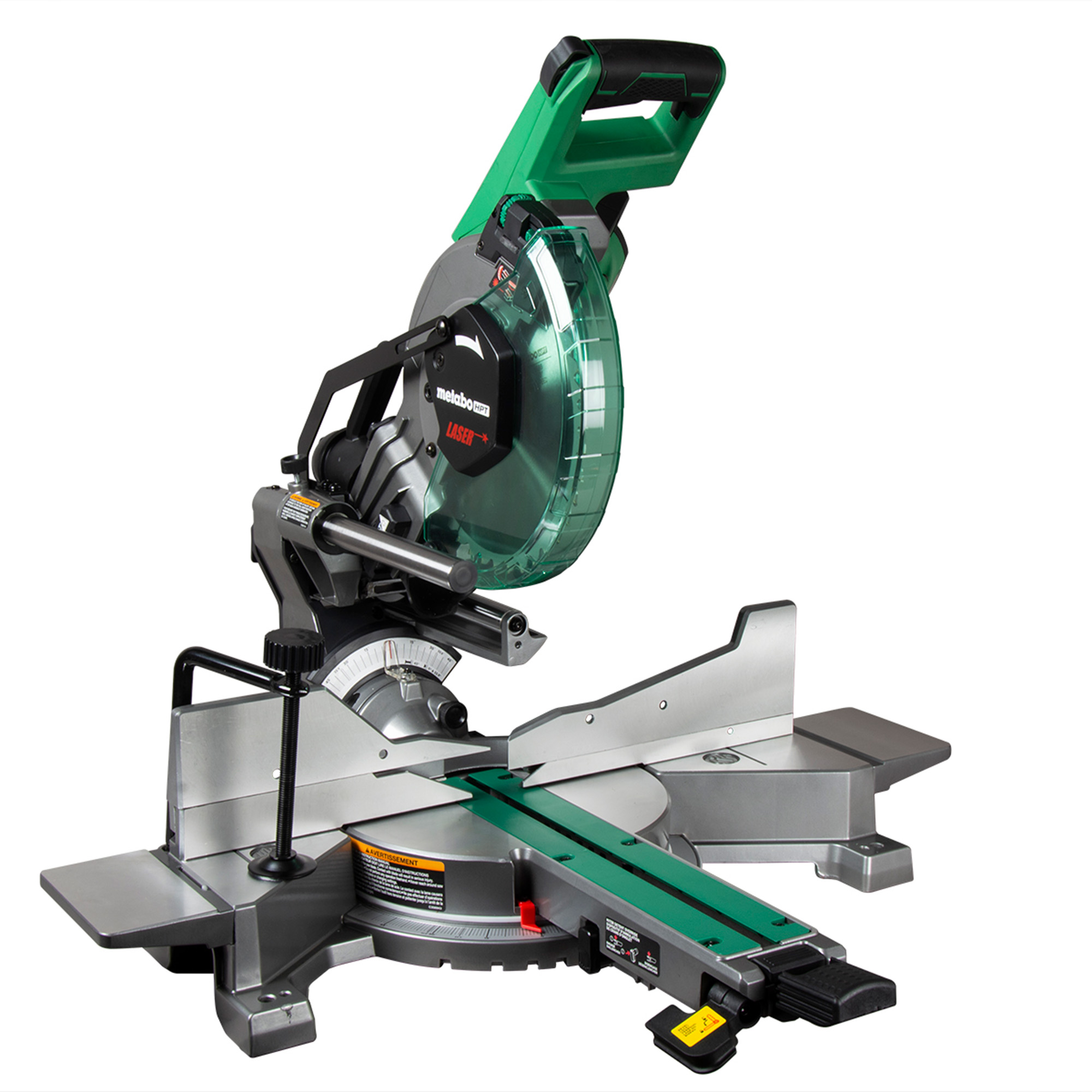

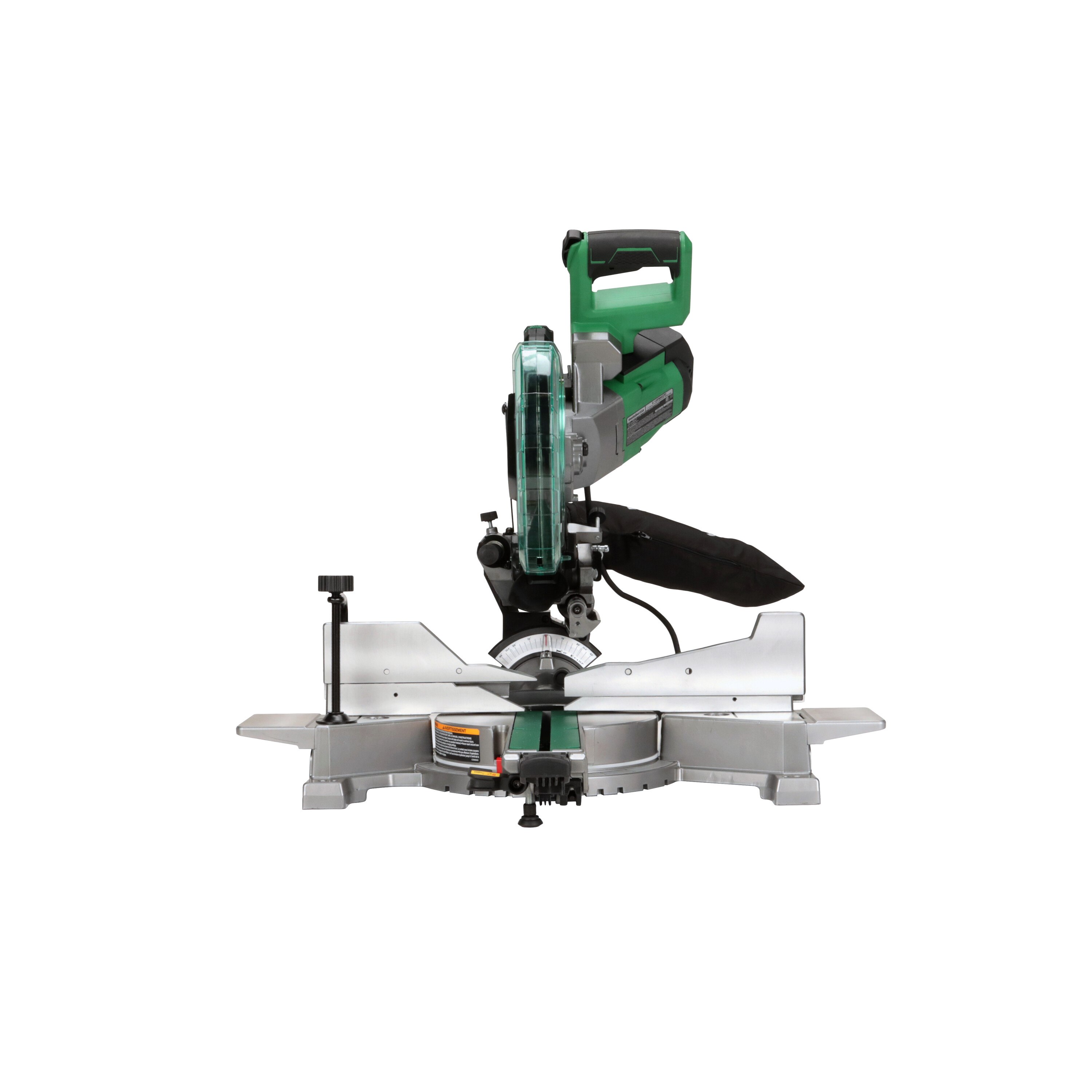

The 10 Inch Compound Miter Saw with laser marker (C10FSHCT) is lightweight at 45.2 lbs. and equipped with a simple & compact slide structure.
This slide system decreases the footprint of the saw by up to a foot, enabling the saw to sit nearly flush against a wall or on a bench top without compromising the range of movement. For this reason, the 10 inch Compound Miter Saw is a great miter saw for small shops and tight garages. The Compound Miter Saw is equipped with an LED light to give the user more visibility and a safer work environment in low light situations. The easily adjustable tool-less laser marker allows the user to make accurate cuts every time.
This slide system decreases the footprint of the saw by up to a foot, enabling the saw to sit nearly flush against a wall or on a bench top without compromising the range of movement. For this reason, the 10 inch Compound Miter Saw is a great miter saw for small shops and tight garages. The Compound Miter Saw is equipped with an LED light to give the user more visibility and a safer work environment in low light situations. The easily adjustable tool-less laser marker allows the user to make accurate cuts every time.
Features of the 10” Compound Miter Saw
- POWER: Powerful 15 Amp motor to tackle tough cutting jobs with ease
- BEVEL ANGLE: 0-48 degree bevel angle range to the right and left allows user to quickly and easily flip the saw blade, and leave the material in place
- MITER ANGLE: 0-60° miter angle to the right and 0-55°miter angle to the left for ultra-flexibility
- COMPACT SLIDE SYSTEM: Simple and compact slide system allows the saw Head to slide along fixed rails, for zero rear clearance
- LASER MARKER SYSTEM: Marker system increases cutting accuracy
- LIGHTWEIGHT: Only 45.2 lbs makes for easy transport to the jobsite
- LED LIGHT: Provides more visibility and a safer work environment in low light situations
- UPFRONT BEVEL LOCK: Ergonomic upfront bevel lock for quick and easy adjustments
- WARRANTY: Covered by Metabo HPT's Professional 5-Year Tool Warranty
- TOOL CARD: Download the C10FSHCT Tool Card
Included with the 10” Compound Miter Saw
- 10" 40T TCT Saw Blade for Wood Cutting (373417)
- Dust Bag (373694)
- Vise Assembly (372531)
- 13mm Wrench (372446)
Specifications
| Blade Size | 10" |
| Full-Load Current Amps | 15 |
| Slide Type | Fixed Rail |
| No-Load Speed | 4,000 RPM |
| Miter Angle Range | 0-55º L & 0-60º R |
| Bevel Angle Range | 0-45º L & R |
| Max Cut 0 Degree | 11-1/2" x 3-1/2" or 12-1/2" x 2-1/2" |
| Max Cut Miter Left/Right 45 Degree | 8" x 3-1/2" or 8-3/4" x 2-1/2" |
| Max Cut Bevel Left 45 Degree | 11-1/2" x 1-3/4" or 12-1/2" x 1-5/8" |
| Max Cut Bevel Right 45 Degree | 11-1/2" x 1" or 12-1/2" x 3/4" |
| Laser Marker | Equipped |
| LED Light | Equipped |
| Saw Blade Drive System | Gear type |
| Front Bevel Lock Lever | Equipped |
| Tool Dimensions ( W x L x H) | 30-5/8" x 30-3/16" x 26-1/16" |
| Weight | 45.2 lbs. |
Includes
- 10" 40T TCT Saw Blade for Wood Cutting (373417)
- Dust Bag (373694)
- Vise Assembly (372531)
- 13mm Wrench (372446)
