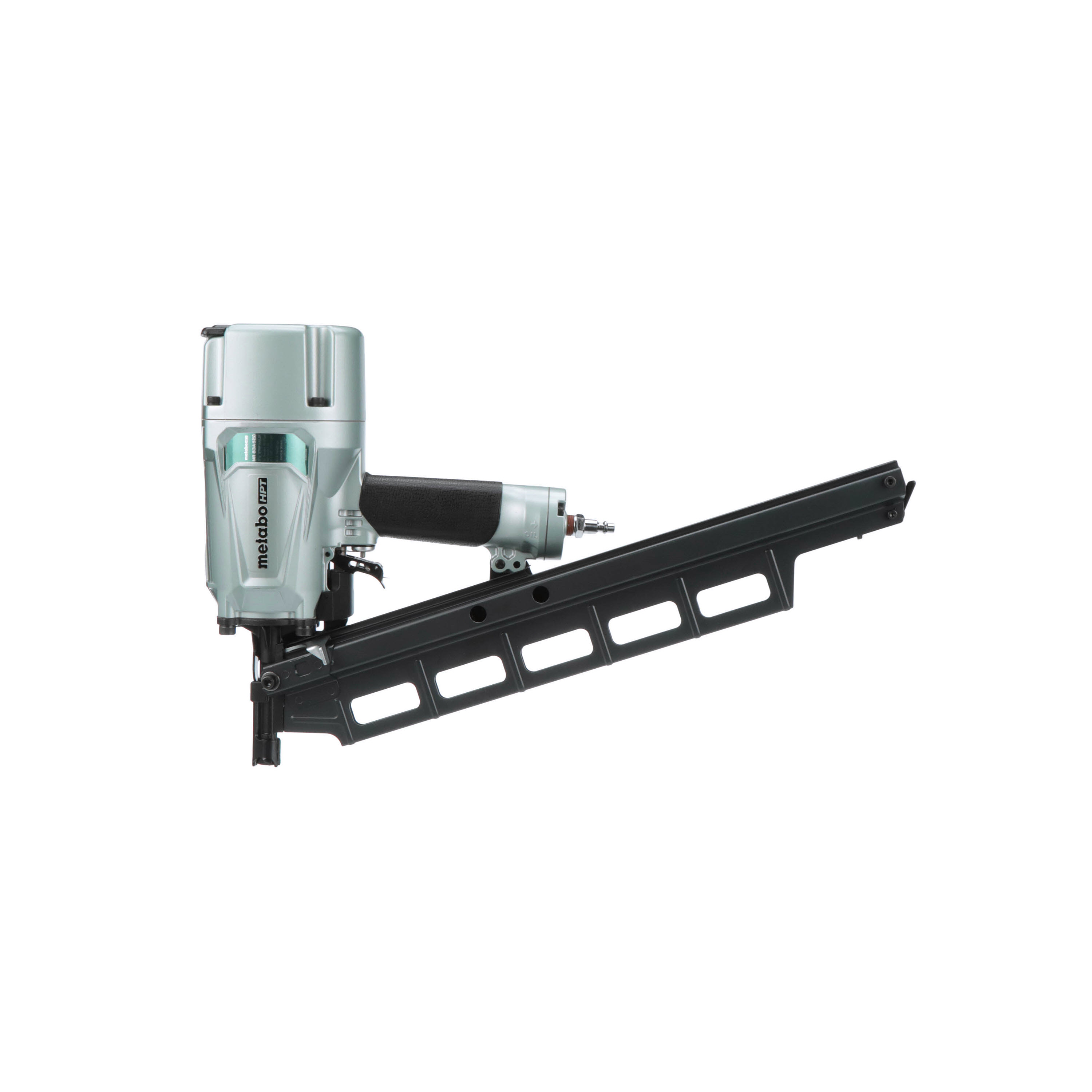

3-1/4 Inch 21° Plastic Collated Framing Nailer Without Depth Adjustment | Metabo HPT NR83A5S
Model# NR83A5(S)
- TECHNOLOGY: Experience quick response and rapid, powerful driving with the Metabo HPT cylinder valve drive mechanism
- AWARD: Rated the Pro Preferred Nailer for 10 years running (2014 - 2023) by Builder and Developer Magazine
- TRIGGER: Selectable trigger mode; choose contact or single sequential actuation mode via switch in the trigger
- RAFTER HOOK: Can be positioned on left or right side depending on user preference
- TECHNOLOGY: Experience quick response and rapid, powerful driving with the Metabo HPT cylinder valve drive mechanism
- AWARD: Rated the Pro Preferred Nailer for 10 years running (2014 - 2023) by Builder and Developer Magazine
- TRIGGER: Selectable trigger mode; choose contact or single sequential actuation mode via switch in the trigger
- RAFTER HOOK: Can be positioned on left or right side depending on user preference
Features
APPLICATION
For framing, flooring, roof decking, window build-up, and more
EASY SWITCH BETWEEN SINGLE TO BUMP FIRE
Quickly switch between sequential and bump nailing with the simple flip of a switch
PRO PREFERRED NAILERS
Product Brand Surveys in Builder & Developer Magazine for 9 years running (2014 - 2022)
WARRANTY
Covered by Metabo HPT's professional 5-year Warranty
The Full Round Head Framing Nailer (NR83A5S) without Depth Adjustment is used for floor and wall framing, truss build-up, window build-up, construction of subflooring and roof decking, wall sheathing and mobile home and modular home construction.
The NR83A5(S) is like the original NR83A framing nailer that you have come to trust, but now with an improved trigger design and sharing all the same internal parts as the original NR83A. The NR83A5(S) relies on the same cylinder valve drive system as the NR83A, which offers both rapid response and great driving power.
Features of the Full Round Head Framing Nailer
- TECHNOLOGY: Experience quick response and rapid, powerful driving with the Metabo HPT cylinder valve drive mechanism
- AWARD: Rated the Pro Preferred Nailer for 10 years running (2014 - 2023) by Builder and Developer Magazine
- TRIGGER: Selectable trigger mode; choose contact or single sequential actuation mode via switch in the trigger
- RAFTER HOOK: Can be positioned on left or right side depending on user preference
- EASY LOAD: Rear loading magazine for quick replenishment
- MAGAZINE: 2-Piece magazine for durability and replacement ease
- GUARANTEE: 30-Day guarantee
- RUBBER GRIP: Provides for superior control and comfort during use
- CLAW TIP: Hardened claw tip resists wear and grips wood for driving nails at different angles
- OPEN NOSE: Open nose design for easy extraction should a nail jam
- RECOMMENDED: Use Metabo HPT Nails for best results
- WARRANTY: Covered by Metabo HPT's Professional 5-Year Tool Warranty
- COMPLIANT: Safety standards for pneumatic nailers in the United States
- TOOL CARD: Download the NR83A5(S) Tool Card
Warranty of the Framing Nailer
- Covered by Metabo HPT's professional 5-year Warranty
Specifications
| Fastener Type | Full Round Head, Plastic Strip Collation |
| Magazine Angle | 21 Degree |
| Magazine Material | Steel |
| Fastener Length Capacity | 2" - 3-1/4" |
| Fastener Diameter Range | .113 to .131 |
| Magazine Capacity | 64 |
| Magazine Loading | Top |
| Fitting | 1/4" Industrial |
| Operating Pressure | 70-120psi |
| Jam Clearing | Open Nose |
| Depth Setting | N/A |
| Actuation | Selective (Sequential/Contact) |
| L x W x H | 21-13/16" x 4-1/4" x 13-3/8" |
| Weight w/o Hook | 8.8 lbs |
| Weight w/ Hook | 9.1 lbs |
Includes
- Safety Glasses (875769)
