Pro Bundle 3-1/4 Inch 21° Plastic Collated Framing Nailer with BONUS Impact Driver Kit| Metabo HPT KNR83A5S
Model# KNR83A5S
- AVAILABLE: In stores at Lowe’s, Menards, AcmeTools.com, and other select retailers (while supplies last)
- PRO BUNDLE INCLUDES: 3-1/4" 21° Plastic Collated Framing Nailer with BONUS 18V Triple Hammer Bolt Impact Driver, 18V/36V MultiVolt 5.0Ah Water & Dust Resistant Battery and Charger
- NAILER AWARD: Rated the Pro Preferred Nailer for 10 years running (2014 - 2023) by Builder and Developer Magazine
- IMPACT DRIVER POWER: Up to 1,859 in-lbs of torque, 0 - 3,700 RPM, and 0-4,000 BPM
- AVAILABLE: In stores at Lowe’s, Menards, AcmeTools.com, and other select retailers (while supplies last)
- PRO BUNDLE INCLUDES: 3-1/4" 21° Plastic Collated Framing Nailer with BONUS 18V Triple Hammer Bolt Impact Driver, 18V/36V MultiVolt 5.0Ah Water & Dust Resistant Battery and Charger
- NAILER AWARD: Rated the Pro Preferred Nailer for 10 years running (2014 - 2023) by Builder and Developer Magazine
- IMPACT DRIVER POWER: Up to 1,859 in-lbs of torque, 0 - 3,700 RPM, and 0-4,000 BPM
Features
APPLICATION
For framing, flooring, roof decking, window build-up, and more
ACCEPTS
21° Plastic Collated Framing nails 2" up to 3-1/4" (.113" - .131")
TRIPLE HAMMER TECHNOLOGY
Faster driving speed, more torque & less vibration
612fa68878656e40a3ccff00003019ae.jpg?sfvrsn=f07f53f4_3)
TRIPLE LED LIGHT
Superior visibility while minimizing shadows

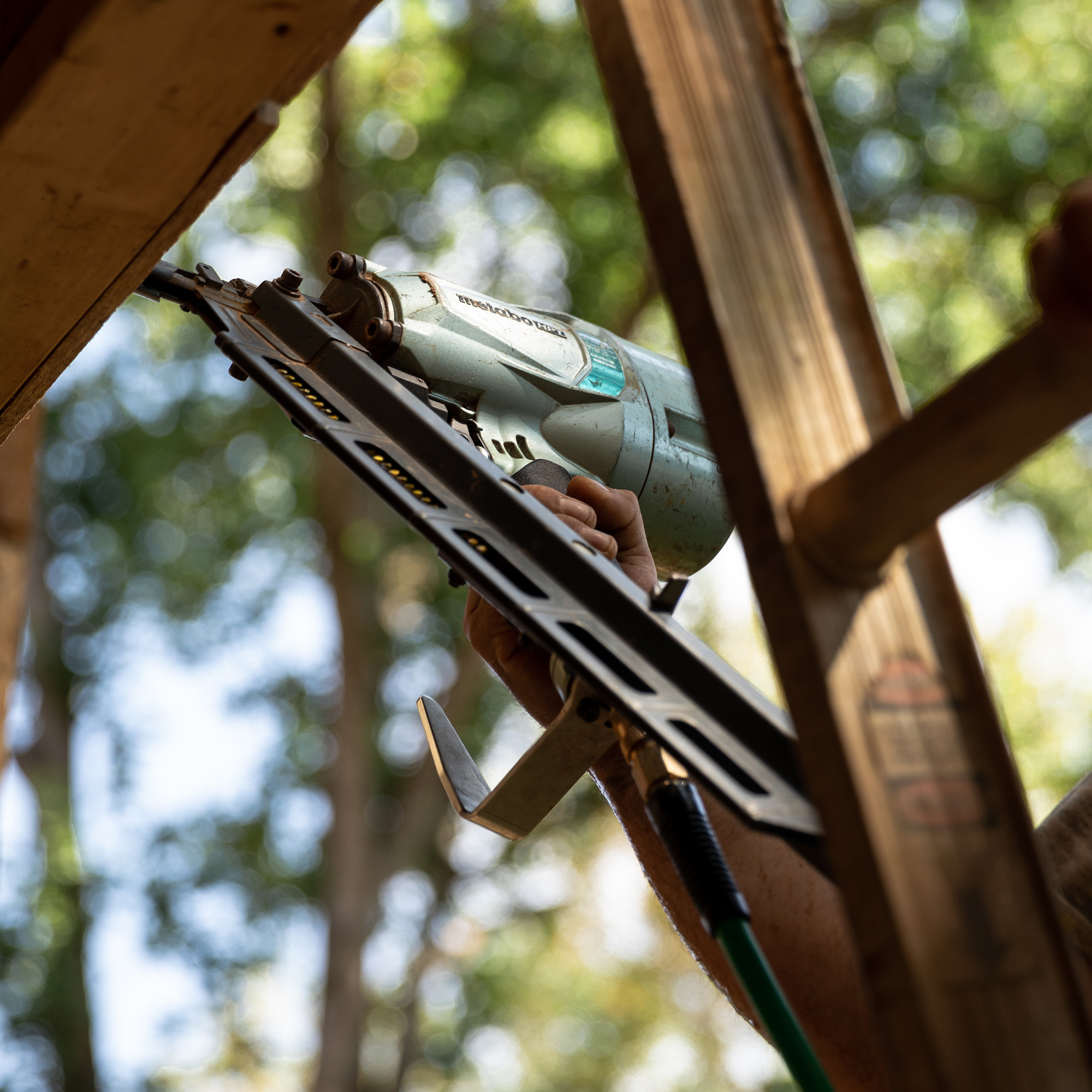

Metabo HPT introduces the new Pro Bundle 3-1/4" 21° Plastic Collated Framing Nailer with BONUS Impact Driver Kit! This limited time offer includes everything a pro needs to get the job done. This bundle includes our Pro Preferred 3-1/4" 21° Plastic Collated Framing Nailer (NR83A5S), 18V Cordless Triple Hammer Bolt Impact Driver (WH18DCQ4), 18V/36V MultiVolt 5.0Ah Water & Dust Resistant Battery (380083M), and charger. The Full Round Head Framing Nailer (NR83A5S) without Depth Adjustment is used for floor and wall framing, truss build-up, window build-up, construction of subflooring and roof decking, wall sheathing and mobile home and modular home construction. The NR83A5S is like the original NR83A framing nailer that you have come to trust, but now with an improved trigger design and sharing all the same internal parts as the original NR83A. The NR83A5S relies on the same cylinder valve drive system as the NR83A, which offers both rapid response and great driving power.
Also included in this pro bundle kit is the BONUS Metabo HPT 18V MultiVolt Cordless Triple Hammer BOLT Impact Driver model (WH18DCQ4). This next generation cordless Triple Hammer impact, provides an innovative solution to make any jobsite even more productive! By incorporating a third anvil and now 5 speed settings including the powerful BOLT mode that efficiently tightens and loosens large bolts and nuts, it can achieve a high torque of 1,859 in-lbs, an impressive 4,000 BPM, and a faster driving speed of 3,700 RPM, while also reducing vibration. This impact driver is ultra-compact at only 4.5" in length allowing users to have more access in tight spaces and at only 2.0lbs, it is lightweight to use all day. With its Triple LED light, it is perfect to work in any dark workspace, while minimizing shadows. The tool body is IP56 rated, adding protection against dust and water exposure to ensure that the Triple Hammer BOLT Impact Driver will GO all day on any job. Also included is the BONUS charger and 18V/36V MultiVolt Water & Impact Resistant Battery (Model: 380083M) which is the next generation of Metabo HPT high power MultiVolt battery technology to fuel our expanding line of 18V & 36V tools. For better defense against moisture related short circuiting, a waterproof barrier exists for the internal cell terminals and twin exit ports for water that gets inside the battery pack. To lessen damage from drops and rough use on the job site, an impact resistant protective layer provides 15% more shock absorption and a longer battery life than previous models. It has a 5.0Ah capacity when used with 18V tools and 2.5Ah capacity when used with 36V tools and features a battery fuel gauge for user convenience. The innovative design of this MultiVolt battery helps prevent overheating when pushed to the limit, and works at temperatures as low as 14°F (-10°C).
Features of the Pro Bundle
- AVAILABLE: In stores at Lowe’s, Menards, AcmeTools.com, and other select retailers (while supplies last)
- PRO BUNDLE INCLUDES: 3-1/4" 21° Plastic Collated Framing Nailer with BONUS 18V Triple Hammer Bolt Impact Driver, 18V/36V MultiVolt 5.0Ah Water & Dust Resistant Battery and Charger
Features of the 3-1/4" 21° Plastic Collated Framing Nailer (NR83A5S)
- TECHNOLOGY: Experience quick response and rapid, powerful driving with the Metabo HPT cylinder valve drive mechanism
- AWARD: Rated the Pro Preferred Nailer for 9 years running (2014 - 2022) by Builder and Developer Magazine
- TRIGGER: Selectable trigger mode; choose contact or single sequential actuation mode via switch in the trigger
- RAFTER HOOK: Can be positioned on left or right side depending on user preference
- ACCEPTS: 21° Plastic Collated Framing nails 2" up to 3-1/4" (.113" - .131")
- EASY LOAD: Rear loading magazine for quick replenishment
- MAGAZINE: 2-Piece magazine for durability and replacement ease
- RUBBER GRIP: Provides for superior control and comfort during use
- CLAW TIP: Hardened claw tip resists wear and grips wood for driving nails at different angles
- OPEN NOSE: Open nose design for easy extraction should a nail jam
- RECOMMENDED: Use Metabo HPT Nails for best results
- WARRANTY: Covered by Metabo HPT's Professional 5-Year Tool Warranty
Features of the 18V Triple Hammer Bolt Impact Driver (WH18DCQ4)
- POWER: Up to 1,859 in-lbs of torque, 0-3,700 RPM, and 0-4,000 BPM
- ULTRA-COMPACT SIZE & WEIGHT: Only 4-1/2” in length and 2.0 lbs
- 5 SPEED MODES: For ultimate control while fastening screws and bolts
- TRIPLE LED LIGHT: Superior visibility while minimizing shadows
- WATER & DUST RESISTANT: With IP56 Rating
- TRIPLE HAMMER TECHNOLOGY: Experience faster driving speed, more torque, and decreased vibration
- TRIGGER: Responsive variable speed trigger provides complete control during operations
- MOTOR: Powerful brushless motor technology provides longer run-time, increased power, and extended durability with essentially no maintenance
- ACCEPTS: Any 18V battery and 18V/36V MultiVolt battery from Metabo HPT
- WARRANTY: Covered by lifetime Lithium-Ion tool body warranty, 2-Year Lithium-Ion Battery Warranty, and 1-Year Charger warranty, along with 30-day no question return policy
Features of the 18V/36V MultiVolt 5.0Ah Water & Dust Resistant Battery (380083M)
- AMP HOURS: 5.0Ah on 18V tools & 2.5Ah on 36V tools
- WATER RESISTANT: Thanks to an internal membrane and twin exit ports for water that gets inside the battery pack
- IMPACT RESISTANT: Added protection against damage from drops
- 4-STAGE FUEL GAUGE: On battery power indicator gauge for convenience
- TECHNOLOGY: Over-load, over-charge, and over-discharge protection technology
- TEMPERATURE: Operates in temperatures as low as 14°F (-10°C)
- POWERS: All Metabo HPT 18V and 36V tools
- WEIGHT: 1.80 lbs
- WARRANTY: 2 Years
Features of the Charger (UC18YKSL)
- APPLICATION: Charges Metabo HPT 18V and 18V/36V MultiVolt slide type Lithium Ion batteries
- PROTECTION: Multiplex Protection circuit in the battery, communicates with the charger preventing the battery from over-charge to improve safety and ensure a long battery lifetime
- LIGHT INDICATOR: Charger uses color light indicator to clearly indicate if the battery is charged
- WARRANTY: Covered by Metabo HPT's 1-Year Charger Warranty
Included in the Pro Bundle
- (1) 3-1/4" 21° Plastic Collated Framing Nailer
- (1) 18V Triple Hammer Bolt Impact Driver Tool Body
- (1) 18V/36V MultiVolt 5.0Ah Water & Dust Resistant Battery
- (1) Charger
Specifications
3-1/4" 21° Plastic Collated Framing Nailer (NR83A5S)
| Fastener Type | Full Round Head, Plastic Strip Collation |
| Magazine Angle | 21 Degree |
| Magazine Material | Steel |
| Fastener Length Capacity | 2" - 3-1/4" |
| Fastener Diameter Range | .113 to .131 |
| Magazine Capacity | 64 |
| Magazine Loading | Top |
| Fitting | 1/4" Industrial |
| Operating Pressure | 70-120 psi |
| Jam Clearing | Open Nose |
| Depth Setting | N/A |
| Actuation | Selective (Sequential/Contact) |
| L x W x H | 21-13/16" x 4-1/4" x 13-3/8" |
| Weight w/o Hook | 8.8 lbs |
| Weight w/ Hook | 9.1 lbs |
18V Triple Hammer Bolt Impact Driver (WH18DCQ4)
| Voltage | 18V |
| Battery | Lithium Ion Slide-Type |
| Torque | 1,859 in/lbs |
| No-Load Speed | 0-3,700 RPM |
| Impact Rate | 0-4,000 IPM |
| Chuck Type | 1/4" Hex |
| Number of Batteries Included | 0 |
| Weight (tool body only) | 2.0 lbs |
| Triple LED Light | Yes |
| Speed Settings | 5 |
| Tool Body Warranty | Lifetime |
18V/36V MultiVolt 5.0Ah Water & Dust Resistant Battery (380083M)
| Voltage | 18V/36V |
| Amp Hour | 5.0Ah/2.5Ah |
| Battery Type | Li-Ion |
| Fuel Gauge | Equipped, 4-Stage |
| Easy Release | Yes |
| MultiVolt | Yes |
| Water Resistant | Yes |
| Impact Resistant | Yes |
| Warranty | 2 Years. |
| Weight | 1.8 lbs |
Charger (UC18YKSL)
| Item Weight | .72 lbs |
| Dimensions (LxWxH) | 3-7/16" x 6-7/8" x 2-9/16" |
| Voltage | 14.4 Volts-18 Volts |
| Item Package Quantity | 1 |
| Battery Cell Type | Lithium Ion |
Includes
- (1) 3-1/4" 21° Plastic Collated Framing Nailer
- (1) 18V Triple Hammer Bolt Impact Driver Tool Body
- (1) 18V/36V MultiVolt 5.0Ah Water & Dust Resistant Battery
- (1) Charger
